iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFAR
HECTOR INTL
PublicPUB

3 miles NW of FARGO, ND
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 55' 14"N 96° 48' 57"W
901' MSL
1901' MSL
04E
JET A, JET A (FSII), JET A+, CILI, 100LL, JP-8
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KFAR VFR
5:53 AM CST
Clear
10sm
38°F
35°F
30.07"Hg
160° 10kts
AO2 SLP190 T00330017 10061 20033 56020
KFAR 091153Z 16010KT 10SM CLR 03/02 A3007 RMK AO2 SLP190 T00330017 10061 20033 56020

KFAR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
124.5

Approach/Departure

APCH/P DEP/P
120.4
APCH/S DEP/S
125.125

Clearance Delivery

CD/P
121.9

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P IC
133.8

Other

TRSA
120.4

FAA A/FD Pages

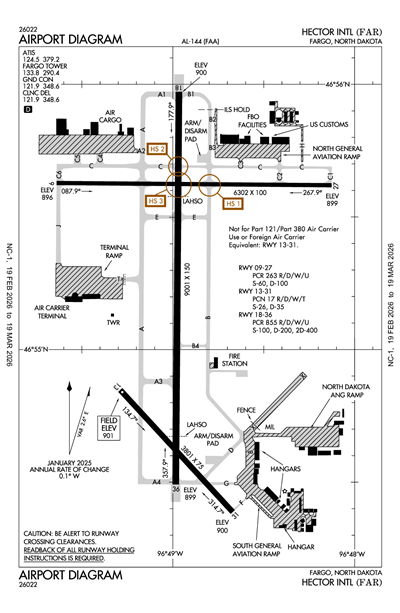

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Terminal Area Forecast

KFAR
Sat, 11/9 5:23 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Broken 20,000'
6sm
170° 10kts
VFR
1:00 PM CST - 9:00 PM CST
Light Rain
Overcast 7,000'
6sm
190° 10kts
MVFR
9:00 PM CST - 1:00 AM CST
Overcast 2,000'
6sm
VRB° 5kts
IFR
1:00 AM CST - 6:00 AM CST
Overcast 800'
6sm
VRB° 4kts
KFAR 091123Z 0912/1012 17010KT P6SM BKN200
   FM091900 19010KT P6SM -RA OVC070
   FM100300 VRB05KT P6SM OVC020
   FM100700 VRB04KT P6SM OVC008
KFAR
Domestic
11/6/241500Z !FAR 11/040 FAR SVC ATIS 379.2 U/S 2411061500-2411061600
11/6/241500Z !FAR 11/039 FAR SVC ATIS 124.5 U/S 2411061500-2411061600
11/6/241500Z !FAR 11/038 FAR SVC TAR U/S 2411061500-2411062100
11/6/241200Z !FAR 11/035 FAR RWY 31 CLSD TO TKOF WED THU FRI MON TUE 1200-0100 2411061200-2411290100
11/6/241200Z !FAR 11/032 FAR RWY 13 CLSD TO LDG WED THU FRI MON TUE 1200-0100 2411061200-2411290100
11/5/242247Z !FAR 11/041 FAR RWY 36 RVRT U/S 2411052247-2411082000
11/5/242135Z !FAR 11/037 FAR TWY C3 WIP CONST ADJ EAST EDGE LGTD AND
BARRICADED 2411052135-2411202100
11/4/241947Z !FAR 11/030 FAR TWY B BTN SOUTH GA RAMP AND TWY M WIP CONST ADJ EAST EDGE
LGTD AND BARRICADED 2411041947-2411152100
10/31/242049Z !FAR 10/116 FAR RWY 09 RWY END ID LGT NOT STD 2410312049-2411212100
FDC
10/11/241733Z !FDC 4/8483 FAR IAP HECTOR INTL, FARGO, ND.
ILS OR LOC RWY 18, ORIG-E...
ILS OR LOC RWY 36, AMDT 2A...
RNAV (GPS) RWY 18, AMDT 1C...
RNAV (GPS) RWY 27, AMDT 1C...
CIRCLING CAT A/B MDA 1400/HAA 499. TEMPORARY CRANE 1100 MSL 2359FT W OF FAR AIRPORT (2023-AGL-14007-NRA). TEMPORARY CRANE 1098 MSL 2896FT W OF FAR AIRPORT (2024-AGL-1785-NRA).
2410111733-2505221733EST
10/11/241733Z !FDC 4/8482 FAR IAP HECTOR INTL, FARGO, ND.
VOR RWY 36, ORIG-E...
STABS FIX MINIMUMS: CIRCLING CAT A/B MDA 1400/HAA 499. TEMPORARY CRANE 1100 MSL 4669FT NW OF RWY 36 (2023-AGL-14007-NRA). TEMPORARY CRANE 1098 MSL 4663FT NW OF RWY 36 (2024-AGL-1785-NRA).
2410111733-2505221733EST
10/11/241733Z !FDC 4/8481 FAR IAP HECTOR INTL, FARGO, ND.
RNAV (GPS) RWY 9, AMDT 1C...
LNAV/VNAV DA 1261/HAT 361 ALL CATS, VIS 1 ALL CATS. CIRCLING CAT A/B MDA 1400/HAA 499. TEMPORARY CRANE 1100 MSL 2829FT S OF RWY 9 (2023-AGL-14007-NRA). TEMPORARY CRANE 1098 MSL 3072FT S OF RWY 9 (2024-AGL-1785-NRA).
2410111733-2505221733EST
7/3/241202Z !FDC 4/6922 FAR ODP HECTOR INTL, FARGO, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4A...
ADD TAKEOFF OBSTACLE NOTES: RWY 9, TEMPORARY CRANE 3307FT FROM DER, 598FT RIGHT OF CENTERLINE, 91FT AGL/985FT MSL (2023-AGL-12828-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2407031202-2501311202EST
6/8/232029Z !FDC 3/7968 FAR PART 1 OF 3 ODP HECTOR INTL, FARGO, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4A...
TAKEOFF OBSTACLE NOTES: RWY 9: LIGHT POLE, SIGN BEGINNING 10 FT
FROM DER, 70 FT LEFT OF CENTERLINE, UP TO 2 FT AGL/900 FT MSL.
LIGHT POLE, UTILITY BUILDING BEGINNING 40 FT FROM DER, 89 FT RIGHT
OF CENTERLINE, UP TO 3 FT AGL/901 FT MSL.
UTILITY BUILDING 41 FT FROM DER, 90 FT LEFT OF CENTERLINE, 3 FT
AGL/901 FT MSL.
TRAVERSE WAYS BEGINNING 419 FT FROM DER, 601 FT RIGHT OF
CENTERLINE, UP TO 913 FT MSL.
POLE 1034 FT FROM DER, 683 FT LEFT OF CENTERLINE, 40 FT AGL/939 FT
MSL.
POLES BEGINNING 1041 FT FROM DER, 467 FT RIGHT OF CENTERLINE, UP TO
40 FT AGL/938 FT MSL.
TREE 1851 FT FROM DER, 990 FT LEFT OF CENTERLINE, 49 FT AGL/948 FT
MSL.
TREES BEGINNING 1874 FT FROM DER, 689 FT LEFT OF CENTERLINE, UP TO
66 FT AGL/965 FT MSL.
TREE 1950 FT FROM DER, 994 FT RIGHT OF CENTERLINE, 54 FT AGL/948 FT
MSL.
TREES BEGINNING 2591 FT FROM DER, 1100 FT RIGHT OF CENTERLINE, UP
MSL. 2306082029-2506082029EST
END PART 1 OF 3
!FDC 3/7968 FAR PART 2 OF 3 ODP HECTOR INTL, FARGO, ND.
TO 74 FT AGL/969 FT MSL.
RWY 18: LIGHT POLE 4 FT FROM DER, 95 FT RIGHT OF CENTERLINE, 2 FT
AGL/900 FT MSL.
LIGHT POLES BEGINNING 5 FT FROM DER, 54 FT LEFT OF CENTERLINE, UP
TO 2 FT AGL/900 FT MSL.
LIGHT POLES, SIGN BEGINNING 9 FT FROM DER, 33 FT LEFT OF
CENTERLINE, UP TO 2 FT AGL/901 FT MSL.
LIGHT POLES BEGINNING 10 FT FROM DER, ON AND RIGHT OF CENTERLINE,
UP TO 2 FT AGL/901 FT MSL.
TRAVERSE WAY 536 FT FROM DER, 19 FT RIGHT OF CENTERLINE, 914 FT
MSL.
RWY 27: TRAVERSE WAYS, UTILITY BUILDING BEGINNING 9 FT FROM DER, 39
FT LEFT OF CENTERLINE, UP TO 1 FT AGL/897 FT MSL.
TRAVERSE WAYS, LIGHT POLE, SIGN BEGINNING 10 FT FROM DER, 50 FT
RIGHT OF CENTERLINE, UP TO 2 FT AGL/897 FT MSL.
UTILITY BUILDING 40 FT FROM DER, 125 FT RIGHT OF CENTERLINE, 4 FT
AGL/898 FT MSL.
TRAVERSE WAY BEGINNING 449 FT FROM DER, 478 FT RIGHT OF CENTERLINE,
UP TO 910 FT MSL.
TREE 2911 FT FROM DER, 943 FT LEFT OF CENTERLINE, 971 FT MSL.
MSL. 2306082029-2506082029EST
END PART 2 OF 3
!FDC 3/7968 FAR PART 3 OF 3 ODP HECTOR INTL, FARGO, ND.
RWY 36: LIGHT POLE, TRAVERSE WAYS, ELECTRICAL SYSTEM, POLE
BEGINNING 9 FT FROM DER, 55 FT RIGHT OF CENTERLINE, UP TO 1 FT
AGL/901 FT MSL.
LIGHT POLES, TRAVERSE WAYS BEGINNING 9 FT FROM DER, 54 FT LEFT OF
CENTERLINE, UP TO 2 FT AGL/901 FT MSL.
TREE 2067 FT FROM DER, 984 FT LEFT OF CENTERLINE, 62 FT AGL/954 FT
MSL. 2306082029-2506082029EST
END PART 3 OF 3
Military
11/7/241400Z !KFAR M0199/24 FAR UNMANNED ACFT WITHIN AREA DEFINED AS 13NM RADIUS OF FAR MILITARY UAS OPERATIONS 2411071400-2411072300
11/6/241400Z !KFAR M0198/24 FAR UNMANNED ACFT WITHIN AREA DEFINED AS 13NM RADIUS OF FAR MILITARY UAS OPERATIONS 2411061400-2411062300
Yes
ALL
MUNI ARPT AUTH OF THE CITY OF FARGO
PO BOX 2845
FARGO, ND 58108
Phone: 701-241-1501
SHAWN DOBBERSTEIN
PO BOX 2845
FARGO, ND 58108
Phone: 701-241-1501
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
FAR
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09/27

6302 ft. x 100 ft.
CONC
Good
GRVD
MED
25 /R/C/W/T
60,000lbs
100,000lbs
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 55' 38"N 46° 55' 37"N
Longitude 96° 49' 38"W 96° 48' 08"W
Elevation 896' 899'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

3801 ft. x 75 ft.
CONC
Good
GRVD
MED
17 /R/D/W/T
26,000lbs
35,000lbs
--
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 54' 51"N 46° 54' 23"N
Longitude 96° 49' 17"W 96° 48' 40"W
Elevation 901' 898'
Threshold Crossing Height 61 ft. AGL 37 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

9001 ft. x 150 ft.
CONC
Good
GRVD
HIGH
95 /R/C/W/T
100,000lbs
200,000lbs
400,000lbs
--
  Runway 18 Runway 36
True Heading 180°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 46° 55' 58"N 46° 54' 29"N
Longitude 96° 48' 58"W 96° 48' 59"W
Elevation 900' 899'
Threshold Crossing Height 68 ft. AGL 71 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-1TWY B N OF TWY D RSTRD TO ACFT LESS THAN 130,000 LBS.
A110-10REMARKS: SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO INCL BASH INFO.
A110-13CAUTION: USE EXTREME CAUTION FOR UAS OPS IN VCNTY.
A110-14ANG: BIRD HAZARD (BASH PHASE II) MAR-MAY, AUG-DEC.
A110-3FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE MON-FRI 0830-1700.
A110-6ANG-OFFL BUS ONLY CTC BASE OPS DSN 362-8508, C701-451-2508 OPR 1300-2230Z++ WKD, CLSD WKEND AND HOL EXC DUR SKED TRNG. OTHER TRAN ACFT CTC JET CNTR C701-235-3600; CSTMS AVBL 24 HR. RCR AVBL FR ANG OPS ON 262.0. RGT TFC RWY 18.
A110-7BIRDS ON AND INVOF ARPT.
HECTOR INTL (ICAO: KFAR, IATA: FAR) is a public airport located in FARGO, ND.
