iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFAF
FELKER AAF
PrivatePVT

View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 07' 57"N 76° 36' 32"W
12' MSL
1012' MSL
11W
None Listed
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
4/17/25-5/15/25
KFAF MVFR
1:55 AM EDT
Light Rain
Overcast 1,000'
10sm
59°F
55°F
29.87"Hg
340° 12kts
Gusts 18kts
AO2 DZE0455DZB42E47RAB47 SLP118 P0000 60000 T01480130 10194 20148 57003 $
METAR KFAF 140555Z AUTO 34012G18KT 10SM -RA OVC010 15/13 A2987 RMK AO2 DZE0455DZB42E47RAB47 SLP118 P0000 60000 T01480130 10194 20148 57003 $
+ Add Your Business

KFAF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.3

Emergency

EMERG
 121.5

Ground

GND/P
 121.35

Tower

LCL/P
 126.3

Other

ADZY
FM
 38.4
BASE OPS
 134.1
OPS
FM
 38.7
OPS
 40.35
OPS
 142.2
PMSV METRO
 134.1

FAA A/FD Pages

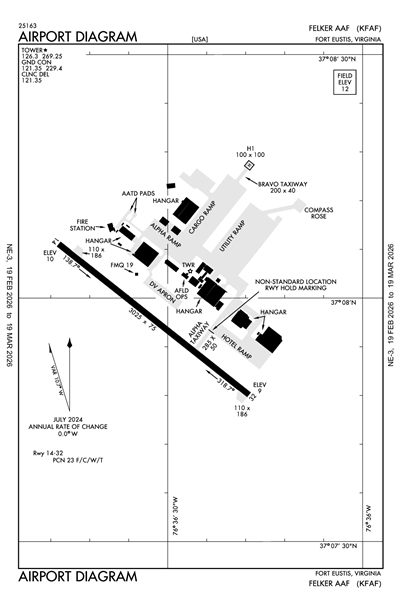

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KPHF (6nm)
Tue, 10/14 2:00 AM EDT
Tue, 10/14 2:00 AM EDT - Wed, 10/15 2:00 AM EDT
MVFR
6:00 PM EDT - 2:00 AM EDT
Overcast 2,000'
6sm
010° 10kts
MVFR
2:00 PM EDT - 6:00 PM EDT
Overcast 1,000'
6sm
360° 13kts
Gusts 20kts
IFR
11:00 AM EDT - 2:00 PM EDT
Overcast 700'
6sm
360° 13kts
Gusts 21kts
IFR
3:00 AM EDT - 11:00 AM EDT
Light Rain and Drizzle and Mist
Overcast 700'
6sm
340° 12kts
Gusts 19kts
IFR
Temporary 2:00 AM EDT - 3:00 AM EDT
Broken 700'
N/A
Calm
MVFR
2:00 AM EDT - 3:00 AM EDT
Overcast 1,200'
Scattered 700'
6sm
330° 12kts
TAF KPHF 140600Z 1406/1506 33012KT P6SM SCT007 OVC012
   TEMPO 1406/1407 BKN007
   FM140700 34012G19KT 6SM -RA DZ BR OVC007
   FM141500 36013G21KT P6SM OVC007
   FM141800 36013G20KT P6SM OVC010
   FM142200 01010KT P6SM OVC020
KFAF
EffectiveExpiresCategoryNOTAM
Military
10/3/25
2123Z
12/30/25
2300Z
AIRCREWS USE CAUTION: PERMANENTLY ERECTED MONOPOLE ANTENNA TOWER LOCATED AT 37°08'25.56N 76°36'15.70W, 134 FT. AGL. APPROXITMATELY 3100 FT NE OF RWY 14/32 AND 1000 FT NE FROM HELIPAD. ANTENNA WILL NOT HAVE OBSTRUCTION LIGHTING DURING CONSTRUCTION PHASE.
10/1/25
1400Z
10/31/25
2300Z
AIR CREWS BE ADVISED THAT FUEL SERVICES ARE CLOSED UNTIL FURTHER NOTICE. FELKER BASE OPERATIONS WILL HAVE REDUCED HOURS.
9/18/25
1112Z
11/17/25
1100Z
ODALS OUT OF SERVICE.
9/4/25
1632Z
11/10/25
0001Z
Aerodrome!KFAF V0359/25 FAF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 14 AMDT 3 COPTER RNAV (GPS) RWY 14, AMDT 1... DELETE NOTE PROCEDURE NA AT NIGHT. 2509041632-2511100001
9/4/25
1627Z
11/10/25
0001Z
Aerodrome!KFAF V0357/25 FAF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 14 AMDT LNAV MDA CATS AB 500-3/4 488 (500-3/4). CIRCLING ALL CAT A 520-1 508 (600-1), CAT B 560-1 548 (600-1). NEWPORT NEW WILLIAMSBURG INTL ALTIMETER SETTING MINIMUMS LNAV MDA CATS AB 520-3/4 528 (600-1), CIRCLING CAT A 540-1 528 (600-1), CAT B 580-1 568 (600-1 2509041627-2511100001
9/2/25
1153Z
12/1/25
1100Z
FOR USE AND SCHEDULING OF THE COMBAT SOD AND STALZ SITE, CONTACT FELKER BASE OPS AT 757-878-2584. FAILURE TO SHOW 30 MIN AFTER SCHEDULED RESERVATION TIME WITHOUT NOTIFICATION, WILL VOID RESERVED BLOCK TIME
Yes
MON-FRI 1145-0400Z++
EXP FEDERAL HOL
US ARMY ATCA-ASO
CAMERON STA
ALEXANDRIA, VA 22314
USAR OPS


Phone: 757-878-2865
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT ODALS RWY 14; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

3025 ft. x 75 ft.
ASPH
Fair
NONE
HIGH
23 /F/C/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 129°309°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 08' 07"N 37° 07' 48"N
Longitude 76° 36' 47"W 76° 36' 18"W
Elevation 10' 9'
Threshold Crossing Height 48 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.
ASPH
Fair
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 98°278°
Traffic Pattern
Markings
Markings Condition
Latitude 37° 08' 16"N N/A
Longitude 76° 36' 17"W N/A
Elevation 6' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10REMOTE BRIEFING AVBL FR SHAW AFB DSN 965-0939/40/41, (FAX) DSN 965-0527. USE C877-297-4129 IF DSN NOT AVBL.
A110-11MISC: FRANGIBLE PERIMETER FENCE ENCLOSING RWY ENVIRONMENT EXISTS WITHIN 500 FT OF RWY CNTRLN. MULTIPLE BLDGS. PENETRATING 7:1 IMAGINARY SURFACE, NE SIDE OF RY. PARKING LOTS/LGT POLES/AND MULTIPLE FRANGIBLE OBJECTS W/IN 500 FT NE OR RY CNTLNE. EMERG DISPATCH MONITORS CTAF, 2300-0700Z++.
A110-12EMERGENCY SERVICES MONITORS CTAF AFTER HOURS.
A110-13AFTER HOUR OPS RESTRICTED TO DOD, STATE/FED MSN ESSENTIAL OPS ONLY.
A110-16FOR CD WHEN ATCT CLSD, CTC NORFOLK APCH AT C757-363-5864.
A110-17REMARKS: CLASS D AIRSPACE EFF 1200-0400Z++ MON-FRI EXEC HOL. OT CLASS G. EMERG DISPATCH MNT CTAF AFT HR.
A110-2FUEL: A SVC AVBL 1200-2130Z++ MON - FRI EXC HOL.
A110-3REMARKS: BASE OPS 1145-0400Z++ MON-FRI EXC HOL, DSN 826-5828/2584, C757-878-5828/2584.
A110-4RSTD: PPR 24 HR NOTICE ALL NON KFAF BASED ACFT, CTC BASE OPS. ACFT ENTERING FR SSE MAX ALT 500 FT DUE TO INST APCH INTO NEWPORT NEWS/WSMBG ARPT. NO HAZARD CARGO AREA AVBL.
A110-5CAUTION: CTC BASOPS FOR CURRENT BASH COND. INCRD BIRD ACTVTY 1 OCT TO 30 NOV AND 1 FEB TO 31 MAR. SGFNT EAGLE ACTVTY IN VCNTY OF 1 NM S APCH END RWY 32, 1 NM E OF ARPT ON WARWICK RIVER.NO ACFT OTFC OF MAIN POST. PERM MOVBL CRANE ON WATERCRAFT BASE 3100 FT WNW OF RWY 14 APCH END. NO FLY AREA 1.6 NM SE RWY 32 TO INCL ENTR PEN.
A110-6TFC PAT; F/W 1000 FT, RGT TFC RY 14. R/W 500 FT.
A110-7MISC: WX FCST ON DUTY 1000-0400Z++ MON-FRI EXC HOL, C757-878-5300, DSN 826-5300. REMOTE BRIEFING AVBL FR SHAW AFB DSN 965-0588, (FAX) DSN 965-1527. USE C877-297-4129 IF DSN NOT AVBL. FLIGHT SERVICES 1-800-WX-BRIEF. WX OBSN VIS RSTD TO 1/2 SM FR NW TO NE; 1/4 TO 3/4 SM ALL OTHER QUAD. WHEN TWR AND/OR SFC VIS IS BLW 4 SM AND DIFFER BY A REPORTABLE VALUE, A TWR VIS RMK WILL BE RPT DUR SUPPLEMENTED WX OBSN.
FELKER AAF (ICAO: KFAF, IATA: FAF) is a private airport located in FORT EUSTIS, VA.
