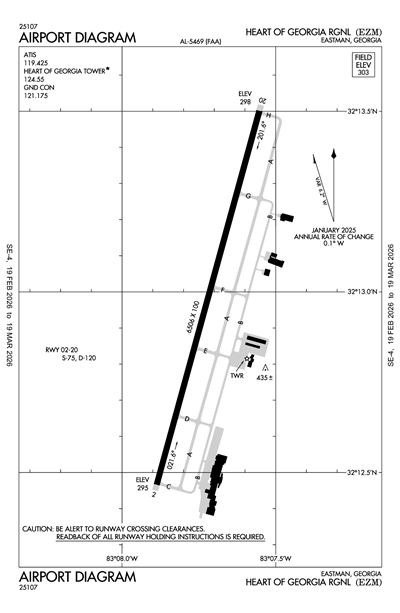

HEART OF GEORGIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEZM
ICAO KEZMIATA EZMLocal EZM
HEART OF GEORGIA RGNL
PublicPUB

3 miles E of EASTMAN, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 12' 59"N 83° 07' 43"W
Elevation
303' MSL
Pattern Alt
1303' MSL
Mag Variation
6°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KEZM LIFR
4:55 AM EST
Fog
Overcast 500'
0.5sm
43°F
43°F
30.31"Hg
Calm
AO2
METAR KEZM 040955Z AUTO 00000KT 1/2SM FG OVC005 06/06 A3031 RMK AO2
+ Add Your Business

KEZM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.425
AWOS-3 119.425
(478) 374-9979

Common

CTAF 124.55
ACTVT MALSR RWY 02; REIL RWY 20; PAPI RWY 02 & 20; HIRL RWY 02/20 - CTAF.; CTAF & TWR FREQ - 124.55.
UNICOM 122.95

Ground

HEART OF GEORGIA GROUND 121.175
MON-THU 0700-1800, FRI 0800-1200.

Tower

HEART OF GEORGIA TOWER 124.55
MON-THU 0700-1800, FRI 0800-1200.

Center

JACKSONVILLE CENTER 127.575
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 127.575/269.025 (ALMA RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KWRB (35nm)
Tue, 3/3 10:00 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 4:00 AM EST
VFR
10:00 PM EST - 12:00 AM EST
Scattered 1,500'
6sm
30.30"Hg
VRB° 6kts
MVFR
Becoming 12:00 AM EST - 3:00 AM EST
Mist
Scattered 1,500'
4.97sm
30.30"Hg
VRB° 6kts
IFR
Becoming 3:00 AM EST - 12:00 PM EST
Mist
Broken 1,500'
2.98sm
30.30"Hg
VRB° 6kts
LIFR
Temporary 4:00 AM EST - 7:00 AM EST
Fog
Overcast 1,500'
Broken 700'
0.5sm
VRB° 3kts
IFR
Becoming 12:00 PM EST - 1:00 PM EST
Mist
Broken 1,500'
Broken 700'
4.97sm
30.32"Hg
120° 3kts
VFR
Becoming 1:00 PM EST - 4:00 AM EST
Few 4,000'
Few 2,500'
6sm
30.30"Hg
110° 3kts
TAF KWRB 040300Z 0403/0509 VRB06KT 9999 SCT015 QNH3030INS
   BECMG 0405/0406 VRB06KT 8000 BR SCT015 QNH3031INS
   BECMG 0408/0409 VRB06KT 4800 BR BKN015 QNH3030INS
   TEMPO 0409/0412 VRB03KT 0800 FG BKN007 OVC015
   BECMG 0417/0418 12003KT 8000 BR BKN007 BKN015 QNH3032INS
   BECMG 0418/0419 11003KT 9999 NSW FEW025 FEW040 QNH3029INS TX28/0420Z TN11/0410Z LAST NO AMDS AFT 0403 NEXT 0411
KEZM
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1300Z
4/3/26
2100Z
!MCN 03/023 EZM AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS .5NM RADIUS OF EZM 2500FT-4000FT AGL AVOIDANCE ADZ MON-FRI 1300-2100 2603021300-2604032100
2/8/26
1955Z
3/25/26
1955Z
!MCN 02/208 EZM OBST TOWER LGT (ASN 2018-ASO-21145-OE) 321952N0830256W (8.1NM NNE EZM) 691FT (370FT AGL) U/S 2602081955-2603251955
Yes
MON-SAT 0800-1800
SUN 1300-1700
HEART OF GA REG APT AUTH
317 AIRPORT RD.
EASTMAN, GA 31023
Phone: 478-220-5091
JEFF FORDHAM
317 AIRPORT RD.
EASTMAN, GA 31023
Phone: 478-220-5091
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MALSR RWY 02; REIL RWY 20; PAPI RWY 02 & 20; HIRL RWY 02/20 - CTAF.
DUSK-2400.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

6506 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

75,000lbs
120,000lbs
--
--
  Runway 02 Runway 20
True Heading 15°195°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 12' 28"N 32° 13' 30"N
Longitude 83° 07' 53"W 83° 07' 33"W
Elevation 295' 298'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-2FLT TRNG IN AREA.
A110-3DEER AND OTR WILDLIFE INVOF ARPT.
A110-4CTAF & TWR FREQ - 124.55.
A110-5FOR CD WHEN ATCT IS CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A13TWR PHONE 478-448-4713. MGR CELL PHONE 478-231-8305.
A16TWR PHONE: 478-448-4713. MGR CELL PHONE 478-231-8305
A58-2010 FT TREES, 363 FT RIGHT OF CNTRLN AT THLD.
A70-100LL24 HR SELF-FUELING WITH CREDIT CARD.
A81-APTACTVT MALSR RWY 02; REIL RWY 20; PAPI RWY 02 & 20; HIRL RWY 02/20 - CTAF.
A81-BCNDUSK-2400.
HEART OF GEORGIA RGNL (ICAO: KEZM, IATA: EZM) is a public airport located in EASTMAN, GA, US.
