iFlightPlanner



...

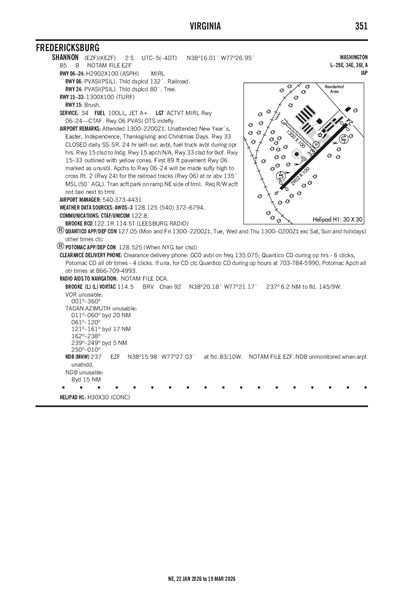

SHANNON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEZF
SHANNON
PublicPUB

2 miles S of FREDERICKSBURG, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 16' 01"N 77° 26' 57"W
85' MSL
1085' MSL
10W
JET A (FSII), 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
4/17/25-5/15/25
KEZF VFR
5:55 PM EST
Clear
10sm
48°F
38°F
30.24"Hg
Calm
AO2 T00880031
METAR KEZF 082255Z AUTO 00000KT 10SM CLR 09/03 A3024 RMK AO2 T00880031
+ Add Your Business

KEZF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.125
540-372-6794

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KNYG (16nm)
Thu, 1/8 3:54 PM EST
Thu, 1/8 4:00 PM EST - Fri, 1/9 4:00 PM EST
VFR
4:00 PM EST - 10:00 PM EST
Broken 15,000'
6sm
30.21"Hg
VRB° 6kts
VFR
Becoming 10:00 PM EST - 12:00 PM EST
Scattered 12,000'
6sm
30.27"Hg
150° 6kts
MVFR
Becoming 12:00 PM EST - 4:00 PM EST
Light Rain and Mist
Broken 10,000'
Scattered 6,000'
4.97sm
30.15"Hg
180° 6kts
TAF KNYG 0821/0921 VRB06KT 9999 BKN150 QNH3022INS
   BECMG 0903/0905 15006KT 9999 SCT120 QNH3028INS
   BECMG 0917/0919 18006KT 8000 -RA BR SCT060 BKN100 QNH3015INS TX10/0821Z TN04/0909Z
KEZF
EffectiveExpiresCategoryNOTAM
Domestic
1/4/26
0526Z
1/19/26
0426Z
!EZF 01/001 EZF OBST TOWER LGT (ASR 1221637) 381832.90N0770644.10W (16.0NM E EZF) 417.7FT (254.9FT AGL) U/S 2601040526-2601190426
12/28/25
0714Z
1/12/26
0614Z
!EZF 12/012 EZF OBST TOWER LGT (ASR 1221638) 381648.60N0771330.30W (10.5NM E EZF) 516.1FT (315.0FT AGL) U/S 2512280714-2601120614
12/18/25
1922Z
2/1/26
1921Z
!EZF 12/009 EZF OBST TOWER LGT (ASR 1016209) 381957.00N0772340.00W (4.8NM NNE EZF) 634.8FT (423.9FT AGL) U/S 2512181922-2602011921
12/5/25
1010Z
3/5/26
0500Z
!EZF 12/004 EZF OBST TOWER LGT (ASR 1041252) 380408.20N0773019.30W (12.3NM SSW EZF) 496.1FT (270.0FT AGL) U/S 2512051010-2603050500
12/3/25
0632Z
4/2/26
0632Z
!EZF 12/003 EZF OBST TOWER LGT (ASR 1011084) 381152.70N0772619.90W (4.2NM S EZF) 524.0FT (294.9FT AGL) U/S 2512030632-2604020632
11/3/25
1302Z
2/2/26
0500Z
!EZF 11/001 EZF OBST TOWER LGT (ASR 1228658) 381052.00N0771640.90W (9.5NM ESE EZF) 450.8FT (256.9FT AGL) U/S 2511031302-2602020500
10/27/25
0425Z
1/25/26
0400Z
!EZF 10/016 EZF OBST TOWER LGT (ASR 1228659) 380915.30N0772322.30W (7.3NM SSE EZF) 468.8FT (254.9FT AGL) U/S 2510270425-2601250400
9/4/25
1629Z
!EZF 09/003 EZF AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041629-PERM
FDC
9/8/25
1358Z
!FDC 5/9364 EZF IAP SHANNON, FREDERICKSBURG, VA.
NDB RWY 24, AMDT 3A...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BRV VOR OUT OF SERVICE. 2509081358-2604201358EST
7/8/25
1314Z
!FDC 5/4014 EZF ODP SHANNON, FREDERICKSBURG, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF MINIMUMS: RWY 6, 300-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 358 FT PER NM TO 400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2507081314-2707081245EST
No
0800-1700
UNATNDD NEW YEAR'S, EASTER, INDEPENDENCE, THANKSGIVING, & CHRISTMAS DAYS.
SHANNON AIRPORT LLC
3380 SHANNON AIRPORT CIRCLE
FREDERICKSBURG, VA 22408
Phone: 540-373-4431
SHANNON AIRPORT LLC
3380 SHANNON AIRPORT CIRCLE
FREDERICKSBURG, VA 22408
Phone: 540-373-4431
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
EZF
--
ACTVT MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 06/24

2902 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 38° 15' 49"N 38° 16' 09"N
Longitude 77° 27' 09"W 77° 26' 43"W
Elevation 83' 85'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 15/33

1300 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 137°317°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 16' 10"N 38° 16' 00"N
Longitude 77° 27' 06"W 77° 26' 55"W
Elevation 80' 83'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

30 ft. x 30 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 98°278°
Traffic Pattern
Markings
Markings Condition FAIR
Latitude 38° 16' 03"N N/A
Longitude 77° 26' 55"W N/A
Elevation 80' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 15 CLSD TO LNDG.
A110-100CLEARANCE DELIVERY PHONE: GCO AVBL ON FREQ 135.075; QUANTICO CD DURING OP HRS - 6 CLICKS, POTOMAC CD ALL OTR TIMES - 4 CLICKS. IF UNA, FOR CD CTC QUANTICO CD DURING OP HOURS AT 703-784-5990, POTOMAC APCH ALL OTR TIMES AT 866-709-4993.
A110-10124 HR SELF-SVC AVBL, FUEL TRUCK AVBL DURG OPR HRS.
A110-10415 FT ROAD, 188 FT FM THR, BOTH SIDES CNTRLN.
A110-105RWY 33 CLSD DLY SS-SR.
A110-106APCHS TO RWY 6/24 WILL BE MADE SUFLY HIGH TO CROSS RT. 2 (RWY 24) OR THE RAILROAD TRACKS (RWY 6) AT OR ABV 135 FT MSL (50 FT AGL).
A110-107TRAN ACFT PARK ON RAMP NE SIDE OF TRML.
A110-108REQ R/W ACFT NOT TAXI NEXT TO TRML.
A110-109RWY 33 CLSD FOR TKOF.
A17UNATNDD NEW YEAR'S, EASTER, INDEPENDENCE, THANKSGIVING, & CHRISTMAS DAYS.
A42-06FIRST 89 FT PAVEMENT RWY 06 MARKED AS UNUSBL.
A42-1515/33 OUTLINED WITH YELLOW CONES.
A43-06RWY 06 PVASI OTS INDEFLY.
A57-06RWY 06 +21 FT RR, DIST 348 FT, 16:1 BASED ON DSPLCD THLD.
A57-15FM RWY END.
A57-24RWY 24, 12 FT ROAD, 206 FT, 2 FT L, 0:1 BASED ON DSPLCD THR.
A58-06+20 FT TRR 180-200 FT FM RWY END 143 FT L TO 145 R.
A58-2412 FT ROAD 126 FT FM RWY END 2 FT L.
A81-APTACTVT MIRL RWY 06/24 - CTAF.
E111PRIOR TO 1959.
SHANNON (ICAO: KEZF, IATA: EZF) is a public airport located in FREDERICKSBURG, VA.
