iFlightPlanner



...

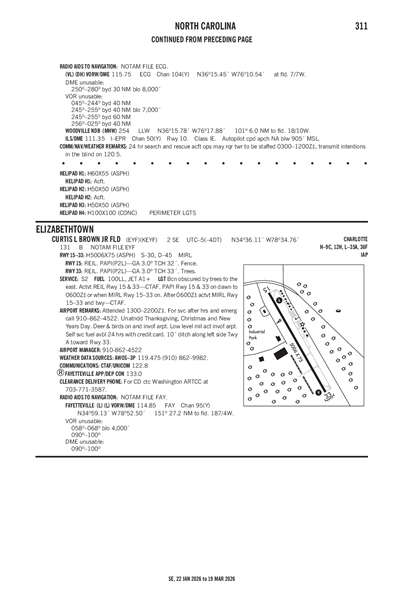

CURTIS L BROWN JR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEYF
ICAO KEYFLocal EYF
CURTIS L BROWN JR FLD
PublicPUB

2 miles SE of ELIZABETHTOWN, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 36' 07"N 78° 34' 45"W
Elevation
131' MSL
Pattern Alt
1131' MSL
Mag Variation
9°W
Declination
8°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KEYF MVFR
5:55 AM EST
Mist
Clear
5sm
50°F
49°F
30.31"Hg
250° 3kts
AO2 T00990097
METAR KEYF 041055Z AUTO 25003KT 5SM BR CLR 10/10 A3031 RMK AO2 T00990097
+ Add Your Business

KEYF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 119.475
(910) 862-9982

Common

CTAF 122.8
ACTVT REIL RWY 15 & 33 - CTAF. PAPI RWY 15 & 33 ON DAWN TO 0100 OR WHEN MIRL RWY 15/33 ON. AFTER 0100 ACTVT MIRL RWY 15/33 AND TWY - CTAF.
UNICOM 122.8

Approach

FAYETTEVILLE APPROACH 133.0

Departure

FAYETTEVILLE DEPARTURE 133.0

Terminal Area Forecast

KLBT (24nm)
Wed, 3/4 12:23 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 10:00 AM EST
Scattered 3,500'
6sm
Calm
LIFR
Temporary 3:00 AM EST - 7:00 AM EST
Fog
Broken 300'
0.25sm
Calm
VFR
10:00 AM EST - 2:00 PM EST
Scattered 12,000'
6sm
250° 3kts
VFR
2:00 PM EST - 9:00 PM EST
Few 25,000'
6sm
220° 5kts
VFR
9:00 PM EST - 1:00 AM EST
Few 25,000'
6sm
180° 4kts
TAF KLBT 040523Z 0406/0506 00000KT P6SM SCT035
   TEMPO 0408/0412 1/4SM FG BKN003
   FM041500 25003KT P6SM SCT120
   FM041900 22005KT P6SM FEW250
   FM050200 18004KT P6SM FEW250
KEYF
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
2335Z
5/25/26
0500Z
!EYF 02/016 EYF OBST TOWER LGT (ASR 1260309) 342819.10N0781619.80W (16.8NM ESE EYF) 283.8FT (258.9FT AGL) U/S 2602242335-2605250500
2/24/26
1240Z
5/25/26
0500Z
!EYF 02/014 EYF OBST TOWER LGT (ASR 1234666) 342758.00N0783422.00W (8.2NM S EYF) 400.3FT (306.1FT AGL) U/S 2602241240-2605250500
2/11/26
1924Z
5/13/26
0500Z
!EYF 02/011 EYF OBST TOWER LGT (ASR 1234528) 342452.40N0782809.60W (12.4NM SSE EYF) 374.0FT (305.1FT AGL) U/S 2602111924-2605130500
2/10/26
1932Z
4/10/26
2359Z
!EYF 02/010 EYF OBST TOWER LGT (ASR 1268787) 342341.40N0781649.80W (19.0NM SE EYF) 348.4FT (309.7FT AGL) U/S 2602101932-2604102359
12/4/25
1257Z
3/5/26
0500Z
!EYF 12/001 EYF OBST TOWER LGT (ASR 1242299) 343443.10N0783118.50W (3.1NM ESE EYF) 306.8FT (219.8FT AGL) U/S 2512041257-2603050500
9/17/25
1345Z
Runway!EYF 09/012 EYF RWY 33 PAPI U/S 2509171345-2603172111EST
9/17/25
1344Z
Runway!EYF 09/011 EYF RWY 33 RWY END ID LGT U/S 2509171344-2603172111EST
9/17/25
1343Z
Runway!EYF 09/010 EYF RWY 15 PAPI U/S 2509171343-2603172111EST
12/20/23
1500Z
!EYF 12/005 EYF TWY C CLSD 2312201500-PERM
FDC
10/31/25
1601Z
!FDC 5/9650 EYF IAP CURTIS L BROWN JR FLD, ELIZABETHTOWN, NC.
RNAV (GPS) RWY 33, ORIG-B...
LNAV VISIBILITY CAT C 1 3/8 SM.
2510311601-2606121601EST
No
MON-SAT 0800-1700
FOR SVC AFTER HRS & EMERG CALL 910-862-4522. UNATNDD THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY.
TOWN OF ELIZABETHTOWN
PO BOX 716
ELIZABETHTOWN, NC 28337
Phone: 910-862-2066
KEN HADAWAY
466 AIRPORT RD
ELIZABETHTOWN, NC 28337
Phone: 910-862-4522
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EYF
--
ACTVT REIL RWY 15 & 33 - CTAF. PAPI RWY 15 & 33 ON DAWN TO 0100 OR WHEN MIRL RWY 15/33 ON. AFTER 0100 ACTVT MIRL RWY 15/33 AND TWY - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Minor
Minor
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

5006 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 36' 27"N 34° 35' 46"N
Longitude 78° 35' 03"W 78° 34' 28"W
Elevation 128' 122'
Threshold Crossing Height 32 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER & BIRDS ON AND INVOF ARPT.
A110-2LOW LEVEL MIL ACT INVOF ARPT.
A110-6BCN OBSCURED BY TREES TO THE EAST.
A110-8FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-910 FT DITCH ALONG LEFT SIDE TWY A TOWARD RWY 33.
A17-M1FOR SVC AFTER HRS & EMERG CALL 910-862-4522. UNATNDD THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY.
A58-15HAS 6 FT FENCE 0 TO 200 FT FM THR OFFSET 250 FT L OF CNTRLN.
A70-100LLSELF SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT REIL RWY 15 & 33 - CTAF. PAPI RWY 15 & 33 ON DAWN TO 0100 OR WHEN MIRL RWY 15/33 ON. AFTER 0100 ACTVT MIRL RWY 15/33 AND TWY - CTAF.
E111VFR ONLY.
CURTIS L BROWN JR FLD (ICAO: KEYF, IATA: EYF) is a public airport located in ELIZABETHTOWN, NC, US.
