iFlightPlanner



...

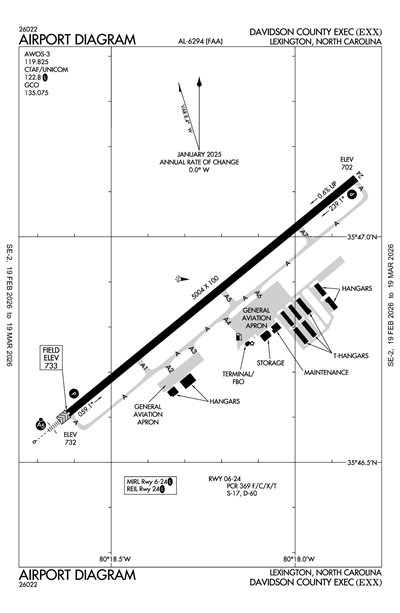

DAVIDSON COUNTY EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEXX
ICAO KEXXLocal EXX
DAVIDSON COUNTY EXEC
PublicPUB

3 miles SW of LEXINGTON, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 46' 52"N 80° 18' 14"W
Elevation
733' MSL
Pattern Alt
1733' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A (FSII), 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KEXX MVFR
5:35 AM EST
Broken 2,700'
7sm
46°F
46°F
30.32"Hg
Calm
AO2 T00800080
METAR KEXX 041035Z AUTO 00000KT 7SM BKN027 08/08 A3032 RMK AO2 T00800080
+ Add Your Business

KEXX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.825
(336) 956-2967

Common

CTAF 122.8
ACTVT MALSR RWY 06; REILS RWY 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
UNICOM 122.8

Approach

GREENSBORO APPROACH 126.6

Departure

GREENSBORO DEPARTURE 126.6

Flight Service

Ground Communication Outlet 135.075
GCO AVBL ON FREQ 135.075 THRU GSO CD & FLT SVCS.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KINT (22nm)
Wed, 3/4 12:40 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
1:00 AM EST - 6:00 AM EST
Broken 25,000'
Broken 2,500'
6sm
230° 4kts
MVFR
Temporary 6:00 AM EST - 8:00 AM EST
Mist
Scattered 500'
3sm
Calm
VFR
6:00 AM EST - 9:30 AM EST
Mist
Broken 25,000'
Scattered 2,000'
6sm
230° 4kts
VFR
9:30 AM EST - 1:00 AM EST
Scattered 25,000'
6sm
230° 9kts
TAF KINT 040540Z 0406/0506 23004KT P6SM BKN025 BKN250
   FM041100 23004KT 6SM BR SCT020 BKN250
   TEMPO 0411/0413 3SM BR SCT005
   FM041430 23009KT P6SM SCT250 AMD NOT SKED
KEXX
EffectiveExpiresCategoryNOTAM
Domestic
12/11/25
1317Z
!EXX 12/003 EXX NAV ILS RWY 06 DME U/S 2512111317-2606112111EST
FDC
1/8/26
1429Z
!FDC 6/1590 EXX IAP DAVIDSON COUNTY EXEC, LEXINGTON, NC.
ILS OR LOC RWY 6, AMDT 1D...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 950FT.
2601081429-2801081429EST
12/11/25
1352Z
!FDC 5/7767 EXX IAP DAVIDSON COUNTY EXEC, LEXINGTON, NC.
ILS OR LOC RWY 6, AMDT 1D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
2512111352-2607231351EST
7/29/24
1925Z
!FDC 4/9461 EXX IAP DAVIDSON COUNTY EXEC, LEXINGTON, NC.
RNAV (GPS) RWY 24, ORIG-B...
LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS.
TAA STRAIGHT-IN 148/30 CW 328/30 (NOPT) TO 148/10 CW 328/10 MINIMUM ALTITUDE 5100.
RWY 24 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
STRAIGHT-IN RWY 24 NA AT NIGHT, CIRCLING RWY 24 NA AT NIGHT.
VDP NA.
2407291925-2607291925EST
7/29/24
1816Z
!FDC 4/9380 EXX IAP DAVIDSON COUNTY EXEC, LEXINGTON, NC.
RNAV (GPS) RWY 6, ORIG-B...
LPV DA 991/HAT 258 ALL CATS. LNAV/VNAV DA 1031/HAT 298 ALL CATS. LNAV MDA 1140/HAT 407 ALL CATS. CIRCLING RWY 24 NA AT NIGHT.
2407291816-2607291816EST
7/29/24
1813Z
!FDC 4/9378 EXX IAP DAVIDSON COUNTY EXEC, LEXINGTON, NC.
ILS OR LOC RWY 6, AMDT 1D...
ILS DA 991/HAT 258 ALL CATS. ILS ALL CATS VISIBILITY 3/4. CIRCLING RWY 24 NA AT NIGHT.
2407291813-2607291813EST
No
0800-1900
FOR SVC AFT HRS CALL 336-847-2983. UNATNDD JULY 4TH, THANKSGIVING, CHRISTMAS, NEW YEARS DAY.
DAVIDSON COUNTY ARPT AUTH
1673 AVIATION WAY
LEXINGTON, NC 27292
Phone: 336-956-7774
KAREL VAN DER LINDEN
1673 AVIATION WAY
LEXINGTON, NC 27292
Phone: 336-956-7774
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EXX
--
ACTVT MALSR RWY 06; REILS RWY 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 06/24

5004 ft. x 100 ft.
ASPH
Excellent
GRVD
MED

17,000lbs
60,000lbs
--
--
  Runway 06 Runway 24
True Heading 51°231°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 35° 46' 36"N 35° 47' 08"N
Longitude 80° 18' 37"W 80° 17' 50"W
Elevation 732' 702'
Threshold Crossing Height 28 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10WILDLIFE ON & INVOF ARPT.
A110-11TWY A FM RWY 24 TO TWY A3 HAS DROP-OFF UP TO 60 FT 20 FT FM PAVEMENT EDGE.
A110-12FOR CD CTC GREENSBORO APCH AT 743-222-6129. FOR CD IF UNA VIA GCO CTC ATLANTA ARTCC AT 770-210-7692.
A110-7GCO AVBL ON FREQ 135.075 THRU GSO CD & FLT SVCS.
A110-8MAX RAMP WT 30000 LBS SINGLE WHEEL, 60000 LBS DUAL WHEEL.
A110-9FOLLOW TWY CNTRLN TO PRKG.
A17-M1FOR SVC AFT HRS CALL 336-847-2983. UNATNDD JULY 4TH, THANKSGIVING, CHRISTMAS, NEW YEARS DAY.
A39-06/24PCR VALUE: 369/F/C/X/T
A70-100LL100LL 24 HR SELF SVC WITH CREDIT CARD.
A81-APTACTVT MALSR RWY 06; REILS RWY 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
DAVIDSON COUNTY EXEC (ICAO: KEXX, IATA: EXX) is a public airport located in LEXINGTON, NC, US.
