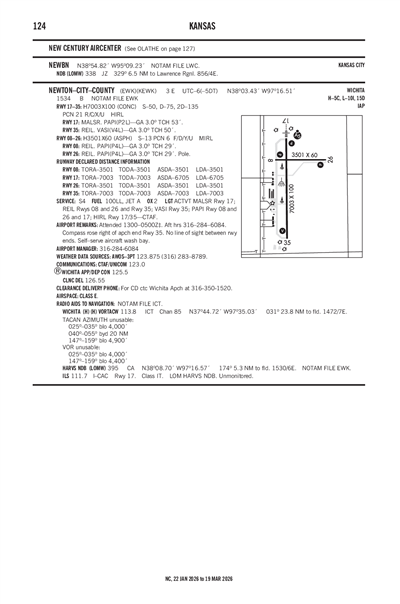

NEWTON-CITY-COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEWK
ICAO KEWKIATA EWKLocal EWK
NEWTON-CITY-COUNTY
PublicPUB

3 miles E of NEWTON, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 03' 26"N 97° 16' 31"W
Elevation
1534' MSL
Pattern Alt
2534' MSL
Mag Variation
3°E
Declination
6°E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KEWK LIFR
12:56 AM CST
Mist
Overcast 400'
3sm
32°F
32°F
30.11"Hg
010° 9kts
AO2 SLPNO FZRANO $
METAR KEWK 040656Z AUTO 01009KT 3SM BR OVC004 A3011 RMK AO2 SLPNO FZRANO $
+ Add Your Business

KEWK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 123.875
(316) 283-8789

Common

CTAF 123.0
ACTVT MALSR RWY 17; REIL RWYS 08 & 26 &35; VASI RWY 35; PAPI RWYS 08 & 26 & 17; HIRL RWY 17/35 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 126.55

Approach

WICHITA APPROACH 125.5

Departure

WICHITA DEPARTURE 125.5

Terminal Area Forecast

KICT (26nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
LIFR
12:00 AM CST - 3:00 AM CST
Light Drizzle and Mist
Overcast 400'
3sm
020° 8kts
IFR
Temporary 3:00 AM CST - 7:00 AM CST
Light Thunderstorm and Rain
Overcast 700'
2sm
Calm
LIFR
3:00 AM CST - 8:00 AM CST
Mist and Thunderstorm in vicinity
Overcast 400'
5sm
010° 8kts
IFR
8:00 AM CST - 5:00 PM CST
Overcast 700'
6sm
010° 8kts
MVFR
5:00 PM CST - 12:00 AM CST
Overcast 1,500'
6sm
VRB° 4kts
TAF KICT 040520Z 0406/0506 02008KT 3SM -DZ BR OVC004
   FM040900 01008KT 5SM BR VCTS OVC004CB
   TEMPO 0409/0413 2SM -TSRA OVC007CB
   FM041400 01008KT P6SM OVC007
   FM042300 VRB04KT P6SM OVC015
KEWK
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1500Z
3/4/26
2000Z
!EWK 03/001 EWK NAV ILS RWY 17 OM U/S 2603041500-2603042000
12/18/25
0643Z
4/17/26
0643Z
!EWK 12/009 EWK OBST TOWER LGT (ASR 1032581) 380415.80N0972207.00W (4.5NM W EWK) 1873.0FT (420.9FT AGL) U/S 2512180643-2604170643
12/12/25
2042Z
6/30/26
2359Z
!EWK 12/008 EWK OBST TOWER LGT (ASR 1030089) 375623.00N0973043.00W (13.3NM WSW EWK) 2500.0FT (1108.9FT AGL) U/S 2512122042-2606302359
FDC
8/14/25
1800Z
!FDC 5/6057 EWK IAP NEWTON-CITY-COUNTY, NEWTON, KS.
ILS OR LOC RWY 17, AMDT 5...
RNAV (GPS) RWY 17, ORIG-B...
RNAV (GPS) RWY 35, ORIG-B...
CIRCLING CAT C MDA 2100/HAA 566.
TEMPORARY CRANE 1735 MSL 2.4NM SW OF EWK AIRPORT (2025-ACE-3942-OE).
2508141800-2702271800EST
No
0700-2300
AFT HRS 316-284-6084.
CITY OF NEWTON HARVEY CO
810 N. OLIVER ROAD - BOX 426
NEWTON, KS 67114
Phone: 316-284-6089
BRIAN PALMER
P.O. BOX 426
NEWTON, KS 67114
Phone: 316-284-6084
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
EWK
--
ACTVT MALSR RWY 17; REIL RWYS 08 & 26 &35; VASI RWY 35; PAPI RWYS 08 & 26 & 17; HIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Charter Service
Pilot Instruction
Aircraft Sales

Runway 08/26

3501 ft. x 60 ft.
ASPH
Good
NONE
MED
6/F/D/Y/U
13,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 03' 39"N 38° 03' 39"N
Longitude 97° 16' 44"W 97° 16' 01"W
Elevation 1,534' 1,533'
Threshold Crossing Height 29 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

7003 ft. x 100 ft.
CONC
Good
NONE
HIGH
21/R/C/X/U
50,000lbs
75,000lbs
135,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 03' 54"N 38° 02' 44"N
Longitude 97° 16' 35"W 97° 16' 35"W
Elevation 1,529' 1,524'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1NO LINE OF SIGHT BETWEEN RWY ENDS.
A110-2SELF-SERVE AIRCRAFT WASH BAY.
A110-3COMPASS ROSE RIGHT OF APCH END RY 35
A110-5FOR CD CTC WICHITA APCH AT 316-350-1520.
A17-M1AFT HRS 316-284-6084.
A81-APTACTVT MALSR RWY 17; REIL RWYS 08 & 26 &35; VASI RWY 35; PAPI RWYS 08 & 26 & 17; HIRL RWY 17/35 - CTAF.
E111PROVIDED A CLEAR APPROACH TO EACH RWY IS MAINTAINED FOR A MINIMUM 20:1 GLIDE SLOPE AND THE TRANSITIONAL SURFACE IS MAINTAINED FOR A 7:1 SLOPE.
NEWTON-CITY-COUNTY (ICAO: KEWK, IATA: EWK) is a public airport located in NEWTON, KS, US.
