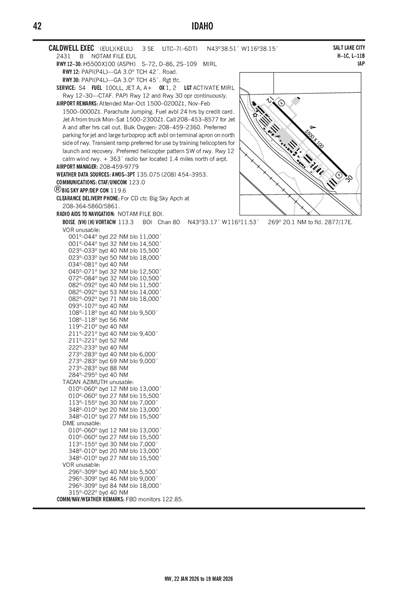

CALDWELL EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEUL
ICAO KEULIATA EULLocal EUL
CALDWELL EXEC
PublicPUB

3 miles SE of CALDWELL, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 38' 31"N 116° 38' 09"W
Elevation
2431' MSL
Pattern Alt
3431' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, JET A (FSII), 100LL
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KEUL VFR
8:56 PM MST
Clear
10sm
51°F
39°F
30.06"Hg
110° 8kts
AO2 SLP187 T01060039
METAR KEUL 040356Z AUTO 11008KT 10SM CLR 11/04 A3006 RMK AO2 SLP187 T01060039
+ Add Your Business

KEUL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.075
(208) 454-3953

Common

CTAF 123.0
ACTVT MIRL RY 12/30 - CTAF. PAPI RYS 12 & 30 OPER CONTINUOUSLY.
UNICOM 123.0

Approach

BIG SKY APPROACH 119.6

Departure

BIG SKY DEPARTURE 119.6

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KEUL
Tue, 3/3 4:38 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 AM MST
Broken 20,000'
6sm
120° 10kts
VFR
8:00 AM MST - 12:00 PM MST
Showers in vicinity
Broken 8,000'
6sm
160° 7kts
VFR
12:00 PM MST - 2:00 PM MST
Light Rain and Mist
Overcast 3,500'
6sm
270° 8kts
MVFR
2:00 PM MST - 5:00 PM MST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
5sm
290° 17kts
Gusts 28kts
TAF KEUL 032338Z 0400/0424 12010KT P6SM BKN200
   FM041500 16007KT P6SM VCSH BKN080
   FM041900 27008KT 6SM -RA BR OVC035
   FM042100 29017G28KT 5SM -RA BR SCT015 OVC025
KEUL
No NOTAM Available
No
MAR-OCT 0800-1900
NOV-FEB 0800-1700
CITY OF CALDWELL
PO BOX 1179
CALDWELL, ID 83606
Phone: 208-455-3000
ROB OATES
4814 E. LINDEN STREET
CALDWELL, ID 83605
Phone: 208-459-9779
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
EUL
--
ACTVT MIRL RY 12/30 - CTAF. PAPI RYS 12 & 30 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 12/30

5500 ft. x 100 ft.
ASPH
Excellent
NONE
MED

72,000lbs
86,000lbs
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 38' 50"N 43° 38' 11"N
Longitude 116° 38' 35"W 116° 37' 42"W
Elevation 2,426' 2,431'
Threshold Crossing Height 42 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1+363 FT RADIO TWR LCTD 1.4 MILES NORTH OF ARPT.
A110-2FUEL AVBL 24 HRS BY CREDIT CARD. JET A FROM TRUCK MON-SAT 1500-2300Z++. CALL 208-453-8577 FOR JET A AND AFTER HOURS CALLOUT.
A110-3RWY 12 CALM WIND RWY.
A110-4PREFERRED PARKING FOR JET AND LARGE TURBOPROP ACFT AVBL ON TERMINAL APRON ON NORTH SIDE OF RWY.
A110-6TRANSIENT RAMP PREFERRED FOR USE BY TRAINING HELICOPTERS FOR LAUNCH AND RECOVERY.
A110-7PREFERRED HELICOPTER PAT SW OF RWY.
A110-8FOR CD CTC BIG SKY APCH AT 208-364-5860/5861.
A110-9FBO MONITORS 122.85.
A74208-459-2360.
A81-APTACTVT MIRL RY 12/30 - CTAF. PAPI RYS 12 & 30 OPER CONTINUOUSLY.
CALDWELL EXEC (ICAO: KEUL, IATA: EUL) is a public airport located in CALDWELL, ID, US.
