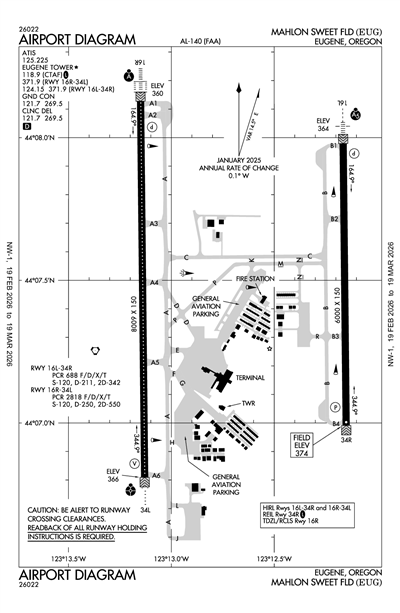

MAHLON SWEET FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEUG
ICAO KEUGIATA EUGLocal EUG
MAHLON SWEET FLD
PublicPUB

7 miles NW of EUGENE, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 07' 28"N 123° 12' 43"W
Elevation
374' MSL
Pattern Alt
1174' MSL
Mag Variation
15°E
Declination
15°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KEUG VFR
11:54 PM PST
Overcast 12,000'
Broken 9,000'
10sm
48°F
46°F
29.98"Hg
Calm
AO2 SLP152 T00890078 401610050
METAR KEUG 040754Z AUTO 00000KT 10SM BKN090 OVC120 09/08 A2998 RMK AO2 SLP152 T00890078 401610050
+ Add Your Business

KEUG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.225
(541) 607-4699
ASOS (541) 203-2648

Common

CTAF 118.9
WHEN ATCT CLSD ACTVT ALSF2 RWY 16R; MALSR RWY 16L; ODALS RWY 34L; REIL RWY 34R - CTAF. PAPI RWY 16R, 16L & 34R; VASI RWY 34L OPR CONSLY. WHEN ATCT CLSD HIRL RWY 16L/34R & 16R/34L PRESET MED INTST.
UNICOM 122.95

Clearance

Clearance Delivery 121.7

Ground

EUGENE GROUND 121.7
0600-2330

Tower

EUGENE TOWER 118.9
0600-2330 - RWY 16R/34L
EUGENE TOWER 124.15
0600-2330 - RWY 16L/34R

Approach

CASCADE APPROACH 119.6
Initial Contact - 340-159
CASCADE APPROACH 120.25
160-339

Departure

CASCADE DEPARTURE 119.6
Initial Contact - 340-159
CASCADE DEPARTURE 120.25
160-339

Center

CASCADE CENTER 125.8
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS 125.8/291.7 (HORTON RCAG) WHEN CASCADE APCH CTL (EUG) CLSD.

Flight Service

Flight Service 122.3
(MMV)

Emergency

Emergency 121.5

Terminal Area Forecast

KEUG
Tue, 3/3 9:33 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 2:00 AM PST
Overcast 6,000'
6sm
170° 5kts
MVFR
2:00 AM PST - 8:00 AM PST
Light Rain
Overcast 2,500'
Scattered 1,500'
6sm
180° 11kts
MVFR
8:00 AM PST - 2:00 PM PST
Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
MVFR
8:00 AM PST - 10:00 PM PST
Light Showers and Rain
Broken 2,500'
6sm
220° 9kts
TAF KEUG 040533Z 0406/0506 17005KT P6SM OVC060
   FM041000 18011KT P6SM -RA SCT015 OVC025
   FM041600 22009KT P6SM -SHRA BKN025
   PROB30 0416/0422 4SM TSRA OVC015CB
KEUG
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
1700Z
3/5/26
2100Z
!EUG 03/006 EUG AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF EUG SFC-3500FT AGL ACFT CS FLC71
2603051700-2603052100
3/4/26
1700Z
3/4/26
2355Z
!EUG 03/007 EUG NAV ILS RWY 16L U/S 2603041700-2603042355
3/4/26
1600Z
3/4/26
1800Z
!EUG 03/008 EUG SVC TAR/SSR U/S 2603041600-2603041800
2/21/26
1422Z
5/25/26
0130Z
!EUG 02/056 EUG APRON NORTH RAMP S 300FT CLSD LIGHTED AND BARRICADED 2602211422-2605250130
11/25/25
1504Z
!EUG 11/077 EUG NAV ILS RWY 16R IM U/S 2511251504-2605282111EST
FDC
3/4/26
2000Z
3/11/26
0442Z
!FDC 6/3277 EUG SID MAHLON SWEET FLD, EUGENE, OR.
EUGENE ONE DEPARTURE...
DESHUTES TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DSD VORTAC OUT OF SERVICE. 2603042000-2603110442EST
2/25/26
1148Z
!FDC 6/9858 EUG IAP MAHLON SWEET FLD, EUGENE, OR.
RNAV (RNP) Z RWY 34L, AMDT 2...
RNP 0.20 DA 726/HAT 358, RNP 0.30 DA 768/HAT 400.
2602251148-2810071148EST
12/8/25
1658Z
!FDC 5/6027 EUG ODP MAHLON SWEET FLD, EUGENE, OR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7B...
TAKE-OFF MINIMUMS: RWY 16L: STANDARD WITH MINIMUM CLIMB OF 207 FT/NM TO 1600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2512081658-2712081658EST
Yes
ALL
CITY OF EUGENE
500 E. 4TH
EUGENE, OR 97401
Phone: (541) 682-5010
CATHRYN STEPHENS
28855 LOCKHEED DRIVE
EUGENE, OR 97402
Phone: 541-682-5430
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
EUG
--
WHEN ATCT CLSD ACTVT ALSF2 RWY 16R; MALSR RWY 16L; ODALS RWY 34L; REIL RWY 34R - CTAF. PAPI RWY 16R, 16L & 34R; VASI RWY 34L OPR CONSLY. WHEN ATCT CLSD HIRL RWY 16L/34R & 16R/34L PRESET MED INTST.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Crop Dusting
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16L/34R

6000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
211,000lbs
342,000lbs
--
  Runway 16L Runway 34R
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 07' 59"N 44° 06' 59"N
Longitude 123° 12' 10"W 123° 12' 09"W
Elevation 364' 374'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 16R/34L

8009 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 16R Runway 34L
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 08' 08"N 44° 06' 49"N
Longitude 123° 13' 09"W 123° 13' 08"W
Elevation 360' 366'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights ALSF2 ODALS
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-2WATERFOWL & BIRDS ON & INVOF ARPT.
A110-3TWYS H & K UNAVBL TO 21000 LB SW & 40000 LB DW GWT.
A110-5TRML APRON CLSD; PPR EXC SKED ACR.
A110-7HEL ARR & DEP AVOID OTFC OF AIRLINE PAX TRML & RAMP E OF RWY 16R/34L.
A110-8RWY 34L ACES BYD TWY A6 NA.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A26PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - 541-682-5430. ARFF AVBL H24. ARFF INDEX D H24; PPR.
A39-16L/34RPCR VALUE: 688/F/D/X/T
A39-16R/34LPCR VALUE: 2818/F/D/X/T
A81-APTWHEN ATCT CLSD ACTVT ALSF2 RWY 16R; MALSR RWY 16L; ODALS RWY 34L; REIL RWY 34R - CTAF. PAPI RWY 16R, 16L & 34R; VASI RWY 34L OPR CONSLY. WHEN ATCT CLSD HIRL RWY 16L/34R & 16R/34L PRESET MED INTST.
MAHLON SWEET FLD (ICAO: KEUG, IATA: EUG) is a public airport located in EUGENE, OR, US.
