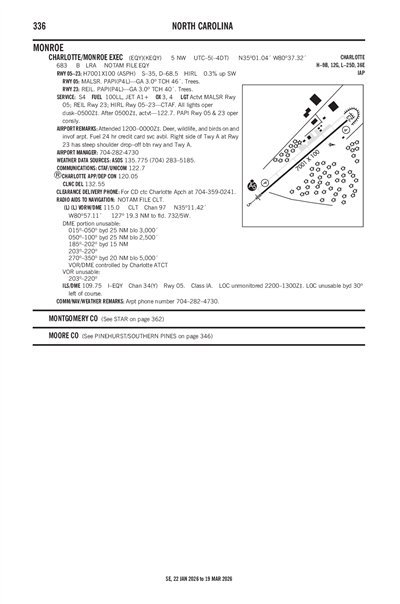

CHARLOTTE/MONROE EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEQY
ICAO KEQYIATA EQYLocal EQY
CHARLOTTE/MONROE EXEC
PublicPUB

5 miles NW of MONROE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 01' 03"N 80° 37' 19"W
Elevation
683' MSL
Pattern Alt
1683' MSL
Mag Variation
8°W
Declination
6°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KEQY VFR
8:53 PM EST
Clear
10sm
49°F
47°F
30.33"Hg
160° 3kts
AO2 SLP287 T00940083
METAR KEQY 040153Z AUTO 16003KT 10SM CLR 09/08 A3033 RMK AO2 SLP287 T00940083
+ Add Your Business

KEQY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.775
(704) 283-5185

Common

CTAF 122.7
ACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 - CTAF. ALL LIGHTS OPER DUSK-0000. AFTER 0000, ACTVT - 122.7. PAPI RWY 05 & 23 OPER CONSLY.
UNICOM 122.7

Clearance

Clearance Delivery 132.55

Arrival

JOOLS STAR 135.6
RASLN STAR 126.15

Approach

CHARLOTTE APPROACH 120.05

Departure

BARMY DP 120.05
BEAVY DP 120.05
BOBZY DP 120.05
CHARLOTTE DEPARTURE 120.05
ESTRR DP 120.05
ICONS DP 120.05
JOJJO DP 120.05
KERMIT DP 120.05
KILNS DP 120.05
KNIGHTS DP 120.05
KRITR DP 120.05
KWEEN DP 120.05
LILLS DP 120.05
WEAZL DP 120.05

Terminal Area Forecast

KCLT (20nm)
Tue, 3/3 9:03 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
9:00 PM EST - 11:00 PM EST
Scattered 25,000'
6sm
210° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Broken 2,300'
6sm
220° 3kts
MVFR
1:00 AM EST - 6:00 AM EST
Broken 1,900'
6sm
210° 3kts
VFR
6:00 AM EST - 9:00 AM EST
Mist
Broken 12,000'
Scattered 2,000'
6sm
230° 3kts
VFR
9:00 AM EST - 12:00 AM EST
Scattered 4,000'
6sm
220° 6kts
MVFR
12:00 AM EST - 1:00 AM EST
Broken 2,900'
6sm
200° 4kts
TAF KCLT 040203Z 0402/0506 21003KT P6SM SCT250
   FM040400 22003KT P6SM BKN023
   FM040600 21003KT P6SM BKN019
   FM041100 23003KT 6SM BR SCT020 BKN120
   FM041400 22006KT P6SM SCT040
   FM050500 20004KT P6SM BKN029
KEQY
EffectiveExpiresCategoryNOTAM
Domestic
2/14/26
1029Z
3/15/26
2359Z
!EQY 02/006 EQY OBST TOWER LGT (ASR 1007213) 350335.00N0804013.00W (3.4NM NW EQY) 1180.1FT (515.4FT AGL) U/S 2602141029-2603152359
12/17/25
1228Z
6/30/26
2359Z
!EQY 12/007 EQY TWY A SFC MARKING NOT STD 2512171228-2606302359
12/17/25
1227Z
6/30/26
2359Z
Runway!EQY 12/006 EQY RWY 05/23 SFC MARKING NOT STD 2512171227-2606302359
FDC
2/12/26
1941Z
9/24/26
1941Z
!FDC 6/3443 EQY SID CHARLOTTE/MONROE EXEC, MONROE, NC.
KNIGHTS THREE DEPARTURE...
PEKNN TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SDZ VOR OUT OF SERVICE. 2602121941-2609241941EST
3/21/24
0901Z
!FDC 4/9231 EQY SID CHARLOTTE/MONROE EXEC, MONROE, NC.
KNIGHTS THREE DEPARTURE ...
ANDYS TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
3/21/24
0901Z
!FDC 4/9230 EQY SID CHARLOTTE/MONROE EXEC, MONROE, NC.
KERMIT FOUR DEPARTURE ...
ANDYS TRANSITION, TREAL TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
No
0700-1900
CITY OF MONROE
CITY HALL, P.O. BOX 69
MONROE, NC 28111
Phone: 704-282-4730
MALCOLM WEEKS
3900 PAUL J. HELMS DRIVE
MONROE, NC 28110
Phone: 704-282-4730
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EQY
--
ACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 - CTAF. ALL LIGHTS OPER DUSK-0000. AFTER 0000, ACTVT - 122.7. PAPI RWY 05 & 23 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

7001 ft. x 100 ft.
ASPH
Good
NONE
HIGH

35,000lbs
68,000lbs
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 35° 00' 39"N 35° 01' 26"N
Longitude 80° 37' 50"W 80° 36' 49"W
Elevation 682' 662'
Threshold Crossing Height 46 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-2ARPT PHONE NUMBER 704-282-4730.
A110-6DEER, WILDLIFE, AND BIRDS ON AND INVOF ARPT.
A110-7RIGHT SIDE OF TWY A AT RWY 23 HAS STEEP SHOULDER DROP-OFF BTN RWY AND TWY A.
A110-8FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A58-2363 FT TREES LOCATED 0-200 FT FM THR AND OFFSET 401 FT L.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A81-APTACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 - CTAF. ALL LIGHTS OPER DUSK-0000. AFTER 0000, ACTVT - 122.7. PAPI RWY 05 & 23 OPER CONSLY.
CHARLOTTE/MONROE EXEC (ICAO: KEQY, IATA: EQY) is a public airport located in MONROE, NC, US.
