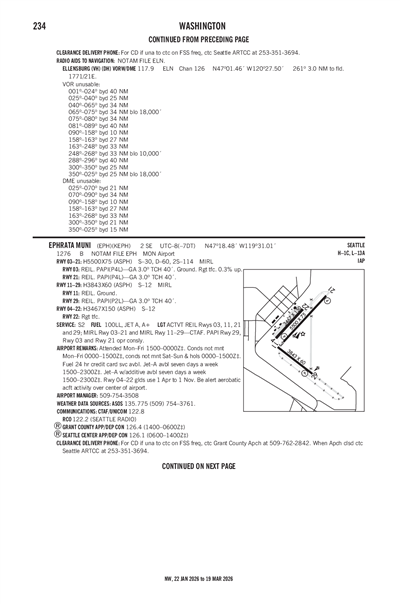

EPHRATA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEPH
ICAO KEPHIATA EPHLocal EPH
EPHRATA MUNI
PublicPUB

2 miles SE of EPHRATA, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 18' 29"N 119° 31' 01"W
Elevation
1276' MSL
Pattern Alt
2276' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A, JET A (FSII), 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KEPH VFR
12:53 AM PST
Few 11,000'
10sm
47°F
40°F
29.88"Hg
Calm
AO2 SLP122 60000 T00830044 58007
METAR KEPH 040853Z AUTO 00000KT 10SM FEW110 08/04 A2988 RMK AO2 SLP122 60000 T00830044 58007
+ Add Your Business

KEPH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.775
(509) 754-3761

Common

CTAF 122.8
ACTVT REIL RWYS 3, 11, 21 & 29; MIRL RWY 03/21 & MIRL RWY 11/29 - CTAF. PAPI RWY 29, RWY 03 & RWY 21 OPR CONSLY.
UNICOM 122.8
UNICOM MNTD INTMTLY.

Approach

GRANT COUNTY APPROACH 126.4
Initial Contact

Departure

GRANT COUNTY DEPARTURE 126.4
Initial Contact

Center

GRANT COUNTY CENTER 126.1
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS 126.1/291.6 (MARLIN RCAG) WHEN GRANT COUNTY APCH CTL (MWH)CLSD.

Flight Service

Flight Service 122.2
(SEA)

Terminal Area Forecast

KMWH (11nm)
Tue, 3/3 9:34 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 4:00 AM PST
Overcast 9,000'
Broken 8,000'
Scattered 6,000'
6sm
220° 4kts
VFR
4:00 AM PST - 10:00 AM PST
Overcast 4,500'
6sm
180° 6kts
VFR
4:00 AM PST - 10:00 AM PST
Light Rain
Overcast 3,500'
6sm
Calm
VFR
10:00 AM PST - 4:00 PM PST
Light Showers and Rain
Overcast 3,500'
6sm
Calm
VFR
10:00 AM PST - 6:00 PM PST
Overcast 5,000'
6sm
230° 8kts
VFR
6:00 PM PST - 10:00 PM PST
Broken 6,000'
6sm
270° 11kts
TAF KMWH 040534Z 0406/0506 22004KT P6SM SCT060 BKN080 OVC090
   FM041200 18006KT P6SM OVC045
   PROB30 0412/0418 6SM -RA OVC035
   FM041800 23008KT P6SM OVC050
   PROB30 0418/0424 6SM -SHRA OVC035
   FM050200 27011KT P6SM BKN060
KEPH
EffectiveExpiresCategoryNOTAM
Domestic
8/29/25
2345Z
4/30/26
2359Z
!EPH 08/023 EPH TWY A1, A2, A3, A4 EDGE MARKING NOT STD 2508292345-2604302359
FDC
2/10/25
1721Z
!FDC 5/1682 EPH ODP EPHRATA MUNI, EPHRATA, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS: RWY 4, 22: NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2502101721-2702101721EST
8/6/24
1824Z
!FDC 4/3823 EPH IAP EPHRATA MUNI, EPHRATA, WA.
VOR RWY 21, AMDT 19A...
NOTE: CIRCLING NA TO RWYS 4 AND 22.
2408061824-2608081824EST
No
MON-FRI 0700-1600
PORT DIST NO 9 GRANT CO
PORT OF EPHRATA PO BOX 1089
EPHRATA, WA 98823
Phone: 509-754-3508
DAVID LANMAN
PO BOX 1089
EPHRATA, WA 98823
Phone: 509-754-3508
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
EPH
--
ACTVT REIL RWYS 3, 11, 21 & 29; MIRL RWY 03/21 & MIRL RWY 11/29 - CTAF. PAPI RWY 29, RWY 03 & RWY 21 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Crop Dusting
Glider Service

Runway 03/21

5500 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 03 Runway 21
True Heading 43°223°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 18' 21"N 47° 19' 01"N
Longitude 119° 31' 19"W 119° 30' 25"W
Elevation 1,261' 1,276'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 04/22

3467 ft. x 150 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 42°222°
Traffic Pattern Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 47° 18' 24"N 47° 18' 49"N
Longitude 119° 31' 29"W 119° 30' 55"W
Elevation 1,261' 1,262'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

3843 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 128°308°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 18' 17"N 47° 17' 53"N
Longitude 119° 31' 26"W 119° 30' 42"W
Elevation 1,261' 1,257'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-4BE ALERT AEROBATIC ACFT ACTIVITY OVER CENTER OF AIRPORT.
A110-6(E81) REFLECTORS ON PORTIONS OF TWYS.
A110-7CONDS NOT MNT MON-FRI 1600-0700, CONDS NOT MNT SAT-SUN & HOLS 1600-0700.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC GRANT COUNTY APCH AT 509-762-2842. WHEN APCH CLSD CTC SEATTLE ARTCC AT 253-351-3694.
A30-04/22RWY 04/22 GLDS USE 1 APR TO 1 NOV.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A70-AJET-A AVBL SEVEN DAYS A WEEK 1500Z-2300Z.
A70-A+JET-A W/ ADDITIVE AVBL SEVEN DAYS A WEEK 1500Z-2300Z
A81-APTACTVT REIL RWYS 3, 11, 21 & 29; MIRL RWY 03/21 & MIRL RWY 11/29 - CTAF. PAPI RWY 29, RWY 03 & RWY 21 OPR CONSLY.
A82UNICOM MNTD INTMTLY.
EPHRATA MUNI (ICAO: KEPH, IATA: EPH) is a public airport located in EPHRATA, WA, US.
