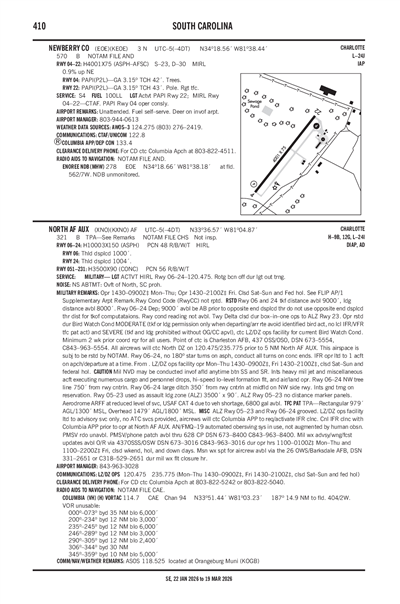

NEWBERRY COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEOE
ICAO KEOELocal EOE
NEWBERRY COUNTY
PublicPUB

3 miles N of NEWBERRY, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 18' 34"N 81° 38' 26"W
Elevation
570' MSL
Pattern Alt
1570' MSL
Mag Variation
7°W
Declination
7°W
Fuel
100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KEOE VFR
6:55 AM EST
Clear
10sm
50°F
46°F
30.38"Hg
Calm
AO2
METAR KEOE 041155Z AUTO 00000KT 10SM CLR 10/08 A3038 RMK AO2
+ Add Your Business

KEOE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.275
(803) 276-2419

Common

CTAF 122.8
ACTVT PAPI RWY 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 OPER CONSLY.
UNICOM 122.8

Approach

COLUMBIA APPROACH 133.4

Departure

COLUMBIA DEPARTURE 133.4

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCAE (34nm)
Wed, 3/4 6:30 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
MVFR
Temporary 7:00 AM EST - 9:00 AM EST
Mist
Scattered 800'
4sm
Calm
VFR
7:00 AM EST - 10:00 AM EST
Mist
Broken 25,000'
Few 1,200'
6sm
Calm
VFR
10:00 AM EST - 7:00 PM EST
Scattered 25,000'
Few 2,000'
6sm
220° 6kts
VFR
7:00 PM EST - 4:00 AM EST
Scattered 25,000'
6sm
VRB° 3kts
LIFR
4:00 AM EST - 7:00 AM EST
Mist
Broken 300'
2sm
Calm
TAF KCAE 041130Z 0412/0512 00000KT 6SM BR FEW012 BKN250
   TEMPO 0412/0414 4SM BR SCT008
   FM041500 22006KT P6SM FEW020 SCT250
   FM050000 VRB03KT P6SM SCT250
   FM050900 00000KT 2SM BR BKN003
KEOE
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
1149Z
5/29/26
0500Z
!AND 02/448 EOE OBST TOWER LGT (ASR 1018398) 340927.70N0812332.10W (15.1NM SE EOE) 697.2FT (261.2FT AGL) U/S 2602281149-2605290500
2/25/26
2246Z
4/11/26
2246Z
!AND 02/404 EOE OBST TOWER LGT (ASN 2014-ASO-8592-OE) 341547N0813844W (2.8NM S EOE) 794FT (309FT AGL) U/S 2602252246-2604112246
2/22/26
1210Z
5/23/26
0500Z
!AND 02/322 EOE OBST TOWER LGT (ASR 1240719) 340312.50N0812937.10W (16.9NM SSE EOE) 693.9FT (234.9FT AGL) U/S 2602221210-2605230500
2/14/26
0706Z
3/31/26
0705Z
!AND 02/195 EOE OBST TOWER LGT (ASR 1229402) 341114.10N0813011.10W (9.9NM SE EOE) 901.9FT (299.9FT AGL) U/S 2602140706-2603310705
1/22/26
1505Z
Runway!AND 01/204 EOE RWY 22 PAPI U/S 2601221505-2607222111EST
No
UNATNDD
NEWBERRY COUNTY
PO BOX 156
NEWBERRY, SC 29108
Phone: 803-321-2100
JOSH ROWE
P.O. BOX 156 1309 COLLEGE STREET
NEWBERRY, SC 29108
Phone: 803-944-0613
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT PAPI RWY 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 04/22

4001 ft. x 75 ft.
ASPH
Excellent
AFSC
MED

23,000lbs
30,000lbs
--
--
  Runway 04 Runway 22
True Heading 37°217°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 18' 18"N 34° 18' 49"N
Longitude 81° 38' 41"W 81° 38' 12"W
Elevation 536' 570'
Threshold Crossing Height 42 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3.15° 3.15°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3DEER ON & INVOF ARPT.
A110-4FOR CD CTC COLUMBIA APCH AT 803-822-4511.
A14PUB WORKS DIR.
A16(803) 321-2383 FAX.
A70-100LLSELF-SERVE.
A81-APTACTVT PAPI RWY 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 OPER CONSLY.
E111EXISTED PRIOR TO 1958.
NEWBERRY COUNTY (ICAO: KEOE, IATA: EOE) is a public airport located in NEWBERRY, SC, US.
