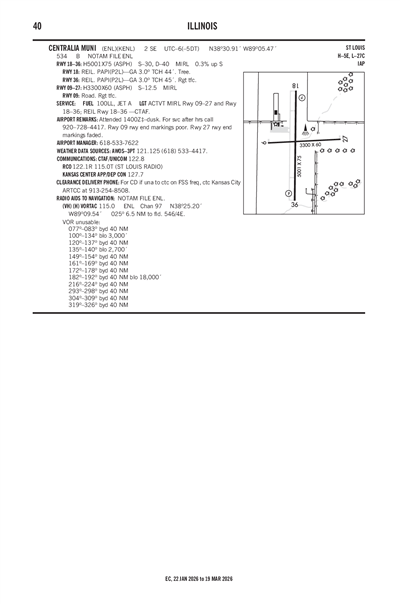

CENTRALIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KENL
ICAO KENLIATA ENLLocal ENL
CENTRALIA MUNI
PublicPUB

2 miles SE of CENTRALIA, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 30' 54"N 89° 05' 28"W
Elevation
534' MSL
Pattern Alt
1534' MSL
Mag Variation
3°W
Declination
2°W
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KENL VFR
1:55 AM CST
Broken 11,000'
Scattered 6,000'
Scattered 700'
7sm
49°F
47°F
30.11"Hg
060° 7kts
AO2 T00950082
METAR KENL 040755Z AUTO 06007KT 7SM SCT007 SCT060 BKN110 10/08 A3011 RMK AO2 T00950082
+ Add Your Business

KENL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 121.125
(618) 533-4417

Common

CTAF 122.8
ACTVT MIRL RY 09/27, RY 18/36 & REIL RY 18/36 - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 127.7/351.825 (MOUNT VERNON RCAG).

Flight Service

Flight Service 122.1
(STL)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMVN (16nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 2:00 AM CST
Showers in vicinity
Broken 4,500'
6sm
VRB° 6kts
MVFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 1,500'
6sm
VRB° 3kts
MVFR
6:00 AM CST - 9:00 AM CST
Light Showers and Rain and Mist
Broken 1,000'
6sm
VRB° 3kts
IFR
9:00 AM CST - 12:00 PM CST
Showers in vicinity
Overcast 700'
6sm
VRB° 5kts
MVFR
12:00 PM CST - 7:00 PM CST
Light Showers and Rain and Thunderstorm in vicinity
Broken 1,500'
4sm
200° 9kts
Gusts 17kts
IFR
Temporary 3:00 PM CST - 7:00 PM CST
Light Thunderstorm and Rain
No Clouds
2sm
Calm
MVFR
7:00 PM CST - 12:00 AM CST
Mist and Thunderstorm in vicinity
Broken 1,500'
3sm
190° 5kts
IFR
Temporary 9:00 PM CST - 12:00 AM CST
Thunderstorm and Rain and Mist
Overcast 500'
1sm
Calm
TAF KMVN 040520Z 0406/0506 VRB06KT P6SM VCSH BKN045
   FM040800 VRB03KT 6SM -SHRA BR VCTS OVC015CB
   FM041200 VRB03KT 6SM -SHRA BR BKN010
   FM041500 VRB05KT P6SM VCSH OVC007
   FM041800 20009G17KT 4SM -SHRA VCTS BKN015CB
   TEMPO 0421/0501 2SM -TSRA
   FM050100 19005KT 3SM BR VCTS BKN015CB
   TEMPO 0503/0506 1SM TSRA BR OVC005CB
KENL
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1400Z
3/4/26
1930Z
!ENL 03/001 ENL NAV VORTAC U/S 2603041400-2603041930
3/4/26
0600Z
3/4/26
1200Z
!ENL 02/026 ENL COM VOR VOICE 122.1 U/S 2603040600-2603041200
3/4/26
0600Z
3/4/26
1200Z
!ENL 02/025 ENL NAV VORTAC NOT MNT 2603040600-2603041200
2/14/26
0812Z
3/31/26
0811Z
!ENL 02/014 ENL OBST TOWER LGT (ASR 1008629) 383259.50N0890822.00W (3.1NM NW ENL) 816.9FT (334.0FT AGL) U/S 2602140812-2603310811
1/26/26
0728Z
3/12/26
0728Z
!ENL 01/015 ENL OBST WIND TURBINE LGT (ASN 2023-WTE-5844-OE) 382353N0891408W (9.8NM SW ENL) 802FT (267FT AGL) U/S 2601260728-2603120728
1/20/26
1526Z
Runway!ENL 01/013 ENL RWY 18 RWY END ID LGT U/S 2601201526-2607202111EST
FDC
8/20/25
1431Z
!FDC 5/0532 ENL IAP CENTRALIA MUNI, CENTRALIA, IL.
RNAV (GPS) RWY 18, AMDT 1C...
RNAV (GPS) RWY 36, AMDT 1C...
VOR-A, AMDT 1A...
CIRCLING CAT B MDA 1060/HAA 526.
2508201431-2604011431EST
No
0800-DUSK
FOR SVC AFT HRS CALL (920) 728-4417.
CITY OF CENTRALIA
101 S. LOCUST
CENTRALIA, IL 62801
Phone: (618) 533-7622
GALEN MAHLE
2331 E. CALUMET
CENTRALIA, IL 62801
Phone: 618-533-7622
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
ENL
--
ACTVT MIRL RY 09/27, RY 18/36 & REIL RY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

3300 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 38° 30' 55"N 38° 30' 56"N
Longitude 89° 05' 46"W 89° 05' 04"W
Elevation 522' 520'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

5001 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
40,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°360°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 38° 31' 18"N 38° 30' 29"N
Longitude 89° 05' 30"W 89° 05' 30"W
Elevation 519' 534'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A15EMAIL ADDRESS: GMAHLE@CITYOFCENTRALIA.ORG (ALL LOWER CASE)
A16CELL # 618-267-7844
A17-M1FOR SVC AFT HRS CALL (920) 728-4417.
A42-09_CONDRWY 9 MARKING POOR.
A42-27_CONDRWY 27 MARKINGS FADED.
A81-APTACTVT MIRL RY 09/27, RY 18/36 & REIL RY 18/36 - CTAF.
CENTRALIA MUNI (ICAO: KENL, IATA: ENL) is a public airport located in CENTRALIA, IL, US.
