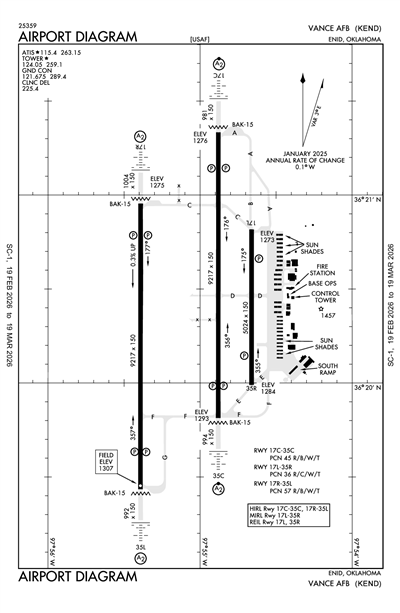

VANCE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEND
ICAO KENDIATA ENDLocal END
VANCE AFB
PrivatePVT

3 miles S of ENID, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 20' 23"N 97° 55' 02"W
Elevation
1313' MSL
Pattern Alt
2313' MSL
Mag Variation
4°E
Declination
5°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KEND MVFR
3:55 AM CST
Overcast 7,000'
Broken 3,000'
Scattered 500'
10sm
47°F
45°F
29.99"Hg
060° 14kts
Gusts 20kts
AO2A PK WND 34026/16 LTG DSNT W-NE SLP156 T00850070 $
METAR KEND 040955Z 06014G20KT 10SM SCT005 BKN030 OVC070 09/07 A2999 RMK AO2A PK WND 34026/16 LTG DSNT W-NE SLP156 T00850070 $
+ Add Your Business

KEND FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 115.4
Hours: 1300-0200Z++WKD (1 MAY-31 OCT); 1300-0100Z++WKD (1 NOV-30 APR); 2000-0000Z++ SUN, CLSD SAT & FEDERAL HOL.

Ground

VANCE GROUND 121.675
1300-0200Z++WKD, 1900-2300Z++ SUN ; CLSD SAT & FEDERAL HOL. GND CTL AND CLNC DEL SVC AVBL 15 MIN PRIOR TO AFLD OPENING. OTHER TIMES BY NOTAM

Tower

VANCE TOWER 124.05
1300-0200Z++WKD, 1900-2300Z++ SUN ; CLSD SAT & FEDERAL HOL. GND CTL AND CLNC DEL SVC AVBL 15 MIN PRIOR TO AFLD OPENING. OTHER TIMES BY NOTAM

Approach

VANCE APPROACH 118.075
337-037 TO 19 DME, FL220 & BLW
VANCE APPROACH 119.775
169-007 WITHIN 18 DME, 9500 FT & BLW
VANCE APPROACH 120.525
169-007 10000 FT TO FL240
VANCE APPROACH 120.525
337-169 FL230 TO FL240
VANCE APPROACH 121.3
037-169 6500 FT & BLW
VANCE APPROACH 125.45
7000 FT TO FL220
VANCE APPROACH 126.75
209-337 TO 18 DME, FL240 & BLW

Departure

VANCE DEPARTURE 120.525

Center

VANCE CENTER 127.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.8/319.1 (PONCA CITY RCAG) WHEN VANCE APCH CTL (END) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KEND
Tue, 3/3 8:00 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
8:00 PM CST - 9:00 PM CST
Overcast 900'
6sm
30.00"Hg
010° 10kts
MVFR
Becoming 9:00 PM CST - 11:00 PM CST
Mist
Overcast 3,500'
Broken 2,000'
Scattered 1,200'
3.73sm
30.03"Hg
360° 10kts
Gusts 15kts
IFR
Becoming 11:00 PM CST - 5:00 AM CST
Mist
Overcast 1,200'
Broken 600'
2.98sm
30.06"Hg
360° 10kts
Gusts 15kts
IFR
Temporary 4:00 AM CST - 7:00 AM CST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 1,000'
2.24sm
VRB° 15kts
Gusts 25kts
IFR
Becoming 5:00 AM CST - 2:00 PM CST
Light Rain and Mist
Overcast 600'
1.49sm
30.00"Hg
330° 10kts
Gusts 15kts
LIFR
Temporary 7:00 AM CST - 10:00 AM CST
Light Thunderstorm and Rain
Overcast 600'
0.99sm
Calm
MVFR
Becoming 2:00 PM CST - 6:00 PM CST
Overcast 2,000'
Broken 1,000'
Scattered 700'
6sm
29.97"Hg
VRB° 6kts
TAF AMD KEND 040200Z 0402/0424 01010KT 9999 OVC009 QNH3000INS
   BECMG 0403/0404 36010G15KT 6000 BR SCT012 BKN020 OVC035 QNH3003INS
   BECMG 0405/0406 36010G15KT 4800 BR BKN006 OVC012 QNH3005INS
   TEMPO 0410/0413 VRB15G25KT 3600 -SHRA VCTS OVC010CB
   BECMG 0411/0413 33010G15KT 2400 -RA BR OVC006 QNH3001INS
   TEMPO 0413/0416 1600 -TSRA OVC006CB
   BECMG 0420/0422 VRB06KT 9999 NSW SCT007 BKN010 OVC020 QNH2998INS TX10/0402Z TN06/0414Z LAST NO AMDS AFT 0402 NEXT 0410
KEND
EffectiveExpiresCategoryNOTAM
Military
3/6/26
1315Z
3/6/26
2359Z
AerodromeAERODROME HOURS OF OPS/SVC
3/3/26
1706Z
3/13/26
2359Z
MAIN RAMP ROW 10 CLOSED, USE CAUTION FOR PAEW.
3/3/26
1300Z
3/5/26
1315Z
Aerodrome!KEND M0163/26 END AD AIRPORT CLSD DLY 1300-1315 2603031300-2603051315
3/2/26
1312Z
3/5/26
1312Z
M0162/26 NOTAMC M0156/26
2/26/26
1420Z
3/13/26
2359Z
Apron!KEND M0154/26 END APRON MAIN RAMP CLSD ROW 9, USE CAUTION FOR PAEW. 2602261420-2603132359
2/24/26
1304Z
4/20/26
2359Z
RunwayRWY 17C/35C PAEW ON RWY FROM TWY F TO TWY C INTERSECTION AND CROSSING TWY F EAST OF RWY 17C/35C
2/24/26
1304Z
4/20/26
2359Z
TaxiwayTWY F TACAN CHECK POINT MARKINGS UNUSABLE
2/24/26
1303Z
4/20/26
2359Z
TaxiwayTWY F HAMMERHEAD CLOSED
2/24/26
1302Z
4/20/26
2359Z
Runway!KEND M0149/26 END RWY 17C/35C CLSD TAXI OPERATIONS APPROVED FROM TWY A TO TWY C, AND CROSSING AT TWY F, ACFT MUST STAY ON CENTERLINE. 2602241302-2604202359
2/24/26
1300Z
4/20/26
2359Z
TaxiwayTWY A TACAN CHECKPOINT MARKINGS UNUSABLE
2/24/26
1258Z
4/20/26
2359Z
Taxiway!KEND M0147/26 END TWY C CLSD BETWEEN RWY 17C/35C AND RWY 17L/35R 2602241258-2604202359
2/24/26
1257Z
4/20/26
2359Z
Taxiway!KEND M0146/26 END TWY D CLSD BETWEEN RWY 17C/35C AND RWY 17L/35R 2602241257-2604202359
2/24/26
1256Z
4/20/26
2359Z
Taxiway!KEND M0145/26 END TWY E CLSD BETWEEN RWY 17C/35C AND RWY 17L/35R 2602241256-2604202359
2/20/26
1617Z
5/15/26
2359Z
Taxiway!KEND M0141/26 END TWY E TACAN CHECKPOINT SIGN MISSING 2602201617-2605152359
Yes
SUN 1900-2300Z
MON-FRI 1300-0200Z++
CLSD SAT & FED HOL; OT BY NOTAM.
U.S. AIR FORCE
71 FTW VANCE AFB
ENID, OK 73705
Phone: 580-213-7101
LAWRENCE FRANKLIN
71FTW VANCE AFB VANCE AFB
ENID, OK 73705
Phone: 580-213-7424
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Cargo Handling

Runway 17C/35C

9217 ft. x 150 ft.
CONC
Good
GRVD
HIGH
45/R/B/W/T
--
--
--
--
  Runway 17C Runway 35C
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 21' 20"N 36° 19' 49"N
Longitude 97° 54' 53"W 97° 54' 53"W
Elevation 1,276' 1,293'
Threshold Crossing Height 51 ft. AGL 41 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights SALSF SALSF
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17L/35R

5024 ft. x 150 ft.
CONC
Good
GRVD
MED
36/R/C/W/T
--
--
--
--
  Runway 17L Runway 35R
True Heading 180°360°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 36° 20' 49"N 36° 19' 59"N
Longitude 97° 54' 40"W 97° 54' 40"W
Elevation 1,273' 1,284'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17R/35L

9217 ft. x 150 ft.
CONC
Good
GRVD
HIGH
57/R/B/W/T
--
--
--
--
  Runway 17R Runway 35L
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 20' 57"N 36° 19' 26"N
Longitude 97° 55' 23"W 97° 55' 24"W
Elevation 1,275' 1,307'
Threshold Crossing Height 48 ft. AGL 49 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights SALS SALS
Centerline Lights No No
Runway End Identifier Lights No No
A110-10BEARING STRENGTH RWY 04-22: ST127 SBTT379 DDT547.
A110-12BEARING STRENGTH RWY 17L-35R: TRT544.
A110-13BEARING STRENGTH RWY 17R-35L: TRT540.
A110-14BEARING STRENGTH RWY 17C-35C: SBTT535 DDT790 TRT469.
A110-20MISC: DV CODE 7 OR HYR ARR CTC VANCE OPS 20 MIN PRIOR TO ETA.
A110-22JUSTMISC: WX OBS LMTD ALL QUAD; ALL EOR NOT VIS FM OBS PT; WHEN FOG AND/OR LO CLOUDS OVR AER 17/35 COND RPT FM OBS PT MAY NOT BE REPRESENTATIVE.
A110-24JASU: 8(A/M32A-86) 10(AM32-95).
A110-26FLUID: SP PRESAIR LPOX LOX.
A110-27OIL: O-148-156 SOAP.
A110-28TRAN ALERT: AVBL DURG PUBL/NOTAM OPS HRS; NO FLEET SVC AVBL; TSNT DEICING UNAVBL.
A110-33CTN: SOME OBST LGT NSTD; ONLY VIS TO 3 MI.
A110-34CTN: ACFT SUNSHADES 735 FT E OF RWY 17L/35R.
A110-38RSTD: PPR AT LEAST 72 BUSINESS HRS IN ADV CTC VANCE AFLD MGT OPS DSN 448-7426, C580-213-7426.
A110-40CTN: LED OBST LGTS MAY NOT BE VIS NVD OR NGT VISION GOGGLES.
A110-41COM/NAV WEATHER: AWOS - 24/7 AUTOMATED OBS; AUGMENTED ONLY DURG OPS HR OR SEV WX.
A110-44WIND SOCK UNLGTD WHEN RWY UNLGTD.
A110-45MISC: VANCE WX OPR H24 (STANDBY PERS MNT ON SAT AND FEDERAL HOL); DSN 448-7203/7530, C580-213-7203/7530. ALL 175-1 WX REQUEST RQR 2 HR NTC. AFLD WX MNT BY AN/FMQ-19 ASOS, AUGMENTED BY HUMAN OBSN WHEN RQR. WX OBSN LTD ALL QUAD DUE BLDG, HGR, SHELTERS AND ACFT OBST VIEW. ALL EOR NOT VIS FR OBSN PT. WHEN FOG AND/OR LOW CLOUDS PRESENT OVER APCH END RWY COND RPT FR OBSN PT MAY NOT BE REPRESENTATIVE.
A110-46RSTD: OFFL BUS; SUBMIT REQ TO AFLD MGMT AT DSN 448-7425/7426 C580-213-7425/7426.
A110-47RSTD: RWY 17C-35C CLSD TIL APRX APR 2025.
A110-48MISC: MIGRATORY BIRD ACT BASH (PHASE II) 15 APR - 31 MAY AND 1 NOV - 28 FEB OR ACTIVE VIA NOTAM.
A110-49MISC: AFLD WX OBS RPRTD 24/7 VIAAN/FMQ-19 AWOS; AUGMENTED BY HUMAN OBSN WHEN REQRD.
A110-5RSTD: DURG VMC DEP RMN BLW 2300 FT UNTIL DER TO ENSURE SEPN FM VFR OVHD PAT UNLESS OTRW CLEARED BY ATC.
A17-D3CLSD SAT & FED HOL; OT BY NOTAM.
A34-17C/35CRWY 17C/35C IS GROOVED CONC.
A34-17L/35RMID 2000 FT IS GROOVED.
A43-17C4-LGT PAPI LCTD BOTH SIDES OF RWY 17C.
A43-17R4-LGT PAPI LCTD BOTH SIDES OF RWY 17R.
A43-35C4-LGT PAPI LCTD BOTH SIDES OF RWY 35C.
A43-35L4-LGT PAPI LCTD BOTH SIDES OF RWY 35L.
A43-35RPAPI UNUSBL BYD 9 DEGS RIGHT AND LEFT OF CNTRLN.
A49-17CNSTD; INSTALLED ON PRECISION RWY.
A49-35CNSTD; INSTALLED ON PRECISION RWY.
E60-17C_MA-1ABAK-15 CHAG (154 FT OVRN).
E60-17R_MA-1ABAK-15 CHAG (152 FT OVRN).
E60-35C_MA-1ABAK-15 CHAG (154 FT OVRN).
E60-35L_MA-1ABAK-15 CHAG (152 FT OVRN).
VANCE AFB (ICAO: KEND, IATA: END) is a private airport located in ENID, OK, US.
