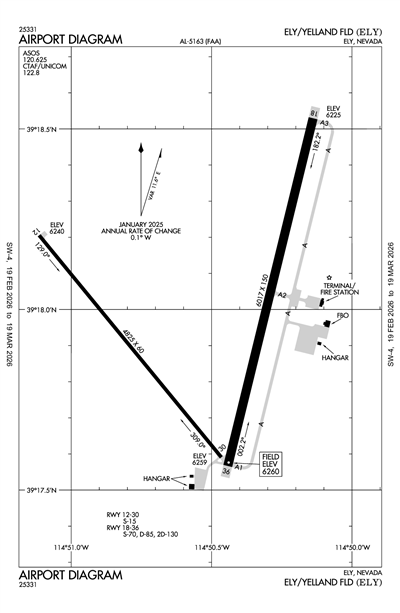

ELY/YELLAND FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KELY
ICAO KELYIATA ELYLocal ELY
ELY/YELLAND FLD
PublicPUB

3 miles NE of ELY, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 17' 59"N 114° 50' 31"W
Elevation
6260' MSL
Pattern Alt
7260' MSL
Mag Variation
12°E
Declination
14°E
Fuel
JET A, 100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KELY VFR
1:53 AM PST
Clear
10sm
28°F
25°F
30.15"Hg
160° 7kts
AO2 SLP192 T10221039 TSNO
METAR KELY 040953Z AUTO 16007KT 10SM CLR M02/M04 A3015 RMK AO2 SLP192 T10221039 TSNO
+ Add Your Business

KELY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 120.625
(775) 210-5681

Common

CTAF 122.8
ACTVT REIL RWY 18 & 36; PAPI RWY 12, 18 & 36; HIRL RWY 18/36; MIRL RWY 12/30 - CTAF.
UNICOM 122.8

Center

SALT LAKE CENTER 133.45
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC ( ZLC) ON FREQ 133.45/317.625 (ELY RCAG).

Flight Service

Flight Service 122.2
(RNO)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KELY
Tue, 3/3 9:27 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 12:00 PM PST
Sky Clear
6sm
180° 9kts
VFR
12:00 PM PST - 7:00 PM PST
Scattered 15,000'
6sm
190° 12kts
Gusts 22kts
MVFR
7:00 PM PST - 10:00 PM PST
Light Showers and Snow
Overcast 1,200'
3sm
320° 12kts
TAF KELY 040527Z 0406/0506 18009KT P6SM SKC
   FM042000 19012G22KT P6SM SCT150
   FM050300 32012KT 3SM -SHSN OVC012
KELY
EffectiveExpiresCategoryNOTAM
Domestic
1/26/26
2111Z
Runway!ELY 01/014 ELY RWY 12/30 REDL U/S 2601262111-2607272111EST
1/26/26
1405Z
Runway!ELY 01/013 ELY RWY 36 RWY END ID LGT U/S 2601261405-2607272111EST
1/26/26
1404Z
Runway!ELY 01/012 ELY RWY 36 PAPI U/S 2601261404-2607272111EST
1/26/26
1403Z
Runway!ELY 01/011 ELY RWY 18 PAPI U/S 2601261403-2607272111EST
12/31/25
2104Z
!ELY 12/007 ELY SVC AUTOMATED WX BCST SYSTEM CHANGE TO 775-210-5681 2512312104-PERM
9/5/25
1713Z
Runway!ELY 09/004 ELY RWY 18 RWY END ID LGT U/S 2509051713-2603052111EST
FDC
1/27/26
1427Z
!FDC 6/7334 ELY ODP ELY/YELLAND FLD, ELY, NV.
ELY TWO DEPARTURE ...
TAKEOFF MINIMUMS:
RWY 12: STANDARD WITH MINIMUM CLIMB OF 280 FT/NM TO 10600, OR 5700-5 FOR VCOA.
RWY 18: STANDARD WITH MINIMUM CLIMB OF 267 FT/NM TO 10600, OR 5700-5 FOR VCOA.
RWY 30: STANDARD WITH MINIMUM CLIMB OF 539 FT/NM TO 10600, OR 5700-5 FOR VCOA.
RWY 36: STANDARD WITH MINIMUM CLIMB OF 355 FT/NM TO 10600, OR 5700-5 FOR VCOA.

VISUAL CLIMB OVER AIRPORT: ALL RUNWAYS: OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS TO CROSS ELY AIRPORT AT OR ABOVE 11800 BEFORE PROCEEDING ON COURSE.

DISREGARD DEPARTURE ROUTE DESCRIPTION VCOA PORTION: OR FOR CLIMB IN VISUAL CONDITIONS, CROSS ELY AIRPORT AT OR ABOVE 11200 BEFORE PROCEEDING ON COURSE.

ALL OTHER DATA REMAINS AS PUBLISHED. 2601271427-2801271427EST
No
MON-SAT 0800-1700
WHITE PINE COUNTY
801 CLARK ST.
ELY, NV 89301
Phone: 775-293-6509
BILL CALDERWOOD
1472 MCGILL HIGHWAY
ELY, NV 89315
Phone: 775-293-7161
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
ELY
--
ACTVT REIL RWY 18 & 36; PAPI RWY 12, 18 & 36; HIRL RWY 18/36; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
High Pressure
None
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Glider Service
Pilot Instruction
Glider Towing

Runway 12/30

4825 ft. x 60 ft.
ASPH
Good
NONE
MED

15,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 141°321°
Traffic Pattern Left Left
Markings NPI NRS
Markings Condition GOOD GOOD
Latitude 39° 18' 12"N 39° 17' 35"N
Longitude 114° 51' 07"W 114° 50' 28"W
Elevation 6,240' 6,259'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

6017 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

70,000lbs
85,000lbs
130,000lbs
--
  Runway 18 Runway 36
True Heading 194°14°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 18' 32"N 39° 17' 34"N
Longitude 114° 50' 08"W 114° 50' 27"W
Elevation 6,225' 6,260'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2ULTRA-LIGHT ACFT OPS ON AND INVOF ARPT DRG DALGT HRS.
A110-4RWY 12/30 NOT AVBL FOR ACFT OVR 30 PAX SEATS.
A110-5GLD OPS ON AND INVOF ARPT MAY-SEPT.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A14FBO 775-289-8804 CLOSED SUNDAYS; CALL-OUT FEE.
A70-100LLFUEL AVBL AFT HRS.
A81-APTACTVT REIL RWY 18 & 36; PAPI RWY 12, 18 & 36; HIRL RWY 18/36; MIRL RWY 12/30 - CTAF.
ELY/YELLAND FLD (ICAO: KELY, IATA: ELY) is a public airport located in ELY, NV, US.
