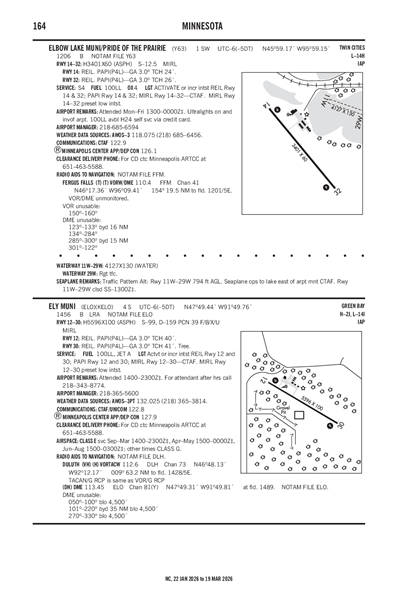

ELY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KELO
ICAO KELOIATA LYULocal ELO
ELY MUNI
PublicPUB

4 miles S of ELY, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 49' 26"N 91° 49' 46"W
Elevation
1456' MSL
Pattern Alt
2456' MSL
Mag Variation
1°W
Declination
0°
Fuel
JET A, 100LL
FSS
PRINCETON (PNM)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KELO MVFR
6:55 AM CST
Mist
Overcast 1,000'
3sm
28°F
27°F
30.07"Hg
Calm
AO2
METAR KELO 041255Z AUTO 00000KT 3SM BR OVC010 M02/M03 A3007 RMK AO2
+ Add Your Business

KELO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 132.025
(218) 365-3814

Common

CTAF 122.8
ACTVT OR INCR INTST REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF. MIRL RWY 12/30 PRESET LOW INTST.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 127.9
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQS 127.9/281.45 (DULUTH RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHIB (49nm)
Wed, 3/4 5:30 AM CST
Wed, 3/4 6:00 AM CST - Thu, 3/5 6:00 AM CST
VFR
Temporary 6:00 AM CST - 7:00 AM CST
Scattered 2,000'
N/A
Calm
IFR
6:00 AM CST - 10:00 AM CST
Mist
Overcast 600'
4sm
Calm
IFR
10:00 AM CST - 12:00 PM CST
Broken 700'
6sm
200° 6kts
VFR
12:00 PM CST - 9:00 PM CST
Broken 9,000'
6sm
210° 7kts
Gusts 17kts
MVFR
9:00 PM CST - 11:00 PM CST
Broken 2,800'
6sm
120° 5kts
IFR
11:00 PM CST - 6:00 AM CST
Mist
Overcast 1,300'
2sm
120° 6kts
TAF KHIB 041130Z 0412/0512 00000KT 4SM BR OVC006
   TEMPO 0412/0413 SCT020
   FM041600 20006KT P6SM BKN007
   FM041800 21007G17KT P6SM BKN090
   FM050300 12005KT P6SM BKN028
   FM050500 12006KT 2SM BR OVC013
KELO
EffectiveExpiresCategoryNOTAM
Domestic
2/3/26
1656Z
3/20/26
1655Z
!ELO 02/004 ELO OBST TOWER LGT (ASR 1027881) 475339.60N0915150.50W (4.5NM NNW ELO) 1820.9FT (342.8FT AGL) U/S 2602031656-2603201655
2/2/26
1424Z
3/19/26
1423Z
!ELO 02/003 ELO OBST TOWER LGT (ASR 1302029) 474319.44N0915735.05W (8.1NM SW ELO) 1793FT (309FT AGL) U/S 2602021424-2603191423
No
0800-1700
FOR ATTENDANT AFT HRS CALL 218-343-8774.
CITY OF ELY
209 E CHAPMAN ST
ELY, MN 55731
Phone: 218-365-3224
JIM PREBLICH
1583 HIGHWAY 1
ELY, MN 55731
Phone: 218-365-5600
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
ELO
--
ACTVT OR INCR INTST REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF. MIRL RWY 12/30 PRESET LOW INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

5596 ft. x 100 ft.
ASPH
Good
NONE
MED
39/F/B/X/U
99,000lbs
159,000lbs
--
--
  Runway 12 Runway 30
True Heading 120°300°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 49' 40"N 47° 49' 13"N
Longitude 91° 50' 21"W 91° 49' 10"W
Elevation 1,443' 1,456'
Threshold Crossing Height 40 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17-M1FOR ATTENDANT AFT HRS CALL 218-343-8774.
A81-APTACTVT OR INCR INTST REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF. MIRL RWY 12/30 PRESET LOW INTST.
ELY MUNI (ICAO: KELO, IATA: ELO) is a public airport located in ELY, MN, US.
