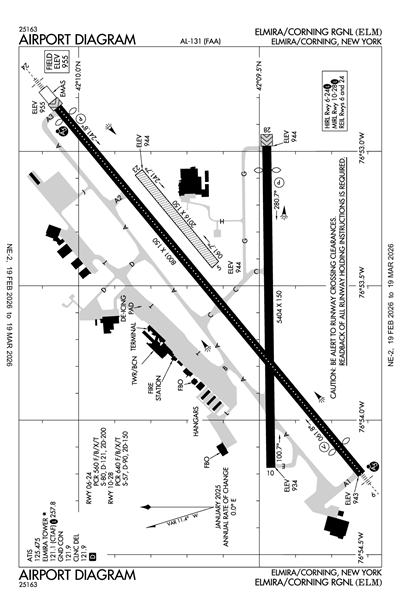

ELMIRA/CORNING RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KELM
ICAO KELMIATA ELMLocal ELM
ELMIRA/CORNING RGNL
PublicPUB

6 miles NW of ELMIRA/CORNING, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 09' 35"N 76° 53' 30"W
Elevation
955' MSL
Pattern Alt
2500' MSL
Mag Variation
11°W
Declination
12°W
Fuel
JET A, 100LL
FSS
BUFFALO (BUF)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KELM IFR
11:53 PM EST
Mist
Overcast 1,400'
2.5sm
34°F
34°F
30.17"Hg
Calm
AO2 RAB24E45 SLP226 P0001 T00110011 400221089
METAR KELM 040453Z AUTO 00000KT 2 1/2SM BR OVC014 01/01 A3017 RMK AO2 RAB24E45 SLP226 P0001 T00110011 400221089
+ Add Your Business

KELM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.475
ASOS (607) 796-0065

Common

CTAF 121.1
WHEN ATCT CLSD ACTVT MALSR RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 10/28; TWY LGTS - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.9

Ground

ELMIRA GROUND 121.9
0600-0000

Tower

ELMIRA TOWER 121.1
0600-0000

Terminal

TRSA 128.425

Approach

ELMIRA APPROACH 128.425
ELMIRA APPROACH 118.15
Secondary

Departure

ELMIRA DEPARTURE 128.425
ELMIRA DEPARTURE 118.15
Secondary

Center

ELMIRA CENTER 133.35
LOW, APCH/DEP SVC PRVDD BY NEW YORK ARTCC ON FREQS 133.35/372.0 (SAYRE RCAG) WHEN ELMIRA APCH CTL CLSD.

Flight Service

Flight Service 122.2
(BUF)

Emergency

Emergency 121.5

Terminal Area Forecast

KELM
Tue, 3/3 9:20 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
9:00 PM EST - 11:00 PM EST
Light Rain
Overcast 1,300'
4sm
210° 5kts
IFR
11:00 PM EST - 10:00 AM EST
Mist
Overcast 700'
2sm
VRB° 3kts
MVFR
10:00 AM EST - 1:00 PM EST
Broken 2,500'
6sm
VRB° 3kts
VFR
1:00 PM EST - 7:00 PM EST
Few 25,000'
6sm
080° 3kts
TAF KELM 040220Z 0402/0424 21005KT 4SM -RA OVC013
   FM040400 VRB03KT 2SM BR OVC007
   FM041500 VRB03KT P6SM BKN025
   FM041800 08003KT P6SM FEW250
KELM
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0529Z
3/28/26
2300Z
!ELM 02/338 ELM OBST TOWER LGT (ASR 1006946) 420155.00N0764701.00W (9.1NM SSE ELM) 2086.9FT (319.9FT AGL) U/S 2602250529-2603282300
2/25/26
0153Z
2/26/26
0153Z
!ELM 02/337 ELM APRON ALL FICON PATCHY 1/8IN DRY SN OVER ICE OBS AT 2602250153. 2602250153-2602260153
2/24/26
2203Z
5/26/26
0500Z
!ELM 02/336 ELM OBST TOWER LGT (ASR 1007965) 421240.00N0765105.30W (3.6NM NNE ELM) 1557.1FT (211.0FT AGL) U/S 2602242203-2605260500
2/24/26
1447Z
Runway!ELM 02/332 ELM RWY 10/28 CLSD 2602241447-2602262359EST
2/24/26
1447Z
!ELM 02/331 ELM TWY E, G, H, TWY C BTN RWY 06/24 AND RWY 10/28 CLSD 2602241447-2602262359EST
2/24/26
0254Z
!ELM 02/325 ELM NAV LOC RWY 24 U/S 2602240254-2603042000EST
2/23/26
1112Z
3/6/26
1900Z
!ELM 02/304 ELM TWY A2 HLDG PSN SIGN FOR RWY 06/24 LGT U/S 2602231112-2603061900
2/19/26
0021Z
4/19/26
2359Z
!ELM 02/178 ELM OBST TOWER LGT (ASR 1053420) 420429.00N0764646.00W (7.1NM SE ELM) 1169.9FT (330.1FT AGL) U/S 2602190021-2604192359
2/4/26
1123Z
Runway!ELM 02/054 ELM RWY 06 VASI U/S 2602041123-2604032000EST
1/31/26
0129Z
2/28/26
0129Z
Runway!ELM 01/430 ELM RWY 28 3000FT DIST REMAINING SIGN LEFT SIDE LGT U/S 2601310129-2602280129
1/30/26
1338Z
2/28/26
2359Z
Runway!ELM 01/426 ELM RWY 10/28 REDL U/S EXC MEDIUM/HIGH INTST 2601301338-2602282359
FDC
1/17/25
1554Z
!FDC 5/4424 ELM ODP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
TAKE-OFF MINIMUMS RWY 06, 500-2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 355FT PER NM TO 1500.
TAKE-OFF MINIMUMS RWY 10, RWY 10: 500-2 WITH MINIMUM CLIMB OF 270 FT PER NM TO 2200 OR STANDARD WITH MINIMUM CLIMB OF 425 FT PER NM TO 1500 OR 2100-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2501171554-2701161554EST
1/17/25
1554Z
!FDC 5/4423 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
RNAV (GPS) RWY 28, AMDT 3C...
RNAV (GPS) RWY 6, AMDT 3...
CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2501171554-2701161554EST
1/17/25
1554Z
!FDC 5/4422 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
ILS OR LOC RWY 24, AMDT 20...
CIRCLING CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165. (ERINN FIX MINIMUMS) CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2501171554-2701161554EST
1/17/25
1554Z
!FDC 5/4421 ELM IAP ELMIRA/CORNING RGNL, ELMIRA/CORNING, NY.
ILS OR LOC RWY 6, AMDT 6...
CIRCLING CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165. (CONAC FIX MINIMUMS) CIRCLING CAT A MDA 2040/HAA 1085, CAT B MDA 2100/HAA 1145, CAT C MDA 2120/HAA 1165.
2501171554-2701161554EST
Yes
ALL
COUNTY OF CHEMUNG
276 SING SING RD., SUITE 1
HORSEHEADS, NY 14845
Phone: 607-739-5621
THOMAS FREEMAN
276 SING SING RD.,SUITE 1
HORSEHEADS, NY 14845
Phone: 607-739-5621
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
ELM
--
WHEN ATCT CLSD ACTVT MALSR RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 10/28; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

2016 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 50°230°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 09' 37"N 42° 09' 50"N
Longitude 76° 53' 25"W 76° 53' 05"W
Elevation 944' 944'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

8001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
121,000lbs
200,000lbs
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 09' 13"N 42° 10' 03"N
Longitude 76° 54' 12"W 76° 52' 50"W
Elevation 943' 955'
Threshold Crossing Height 51 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 10/28

5404 ft. x 150 ft.
ASPH
Good
GRVD
MED

57,000lbs
90,000lbs
150,000lbs
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 09' 28"N 42° 09' 29"N
Longitude 76° 54' 11"W 76° 52' 59"W
Elevation 934' 944'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ACFT WITH WINGSPANS GTR THAN 93 FEET SHOULD USE EXTREME CARE WHEN TAXIING ON TWY T ADJ TO APRONS.
A110-11RWY 10 OPNS PROHIBITED FOR ACFT WITH APCH SPEEDS GTR THAN OR EQUAL TO 121 KNOTS AND/OR WINGSPANS GTR THAN OR EQUAL TO 118 FT .
A110-12COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-13TWY H, J, & L LTD TO DESIGN GROUP II ACFT.
A110-14TRML RAMP IS UNCONTROLLED. DO NOT CALL FOR PUSH/POWER BACK. ADVISE GC WHEN READY TO TAXI FOR DEP.
A110-15TWY T BTN TXY L AND TWY D NONMOVEMENT AREA.
A110-16FOR CD IF UNA TO CTC ON FSS FREQ, CTC NEW YORK ARTCC AT 631-468-1425.
A110-2EXTSV GLIDER ACT ON & INVOF ARPT.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-4RWY 05/23 (SOUTHEAST OF RWY 06/24) UNMARKED SEASONAL USE TURF RWY CLSD 1 DEC THROUGH 30 APR.
A110-5FOR LAND SIDE ACCESS FM APRON WHEN FBO CLSD CTC ELM ARPT ATTENDANT AT 607-426-5621.
A110-6WINTER DE-ICING ON GLYCOL APRON ONLY.
A110-7BLIMP ACT RQRS PPR, CTC ARPT MGMT AT 607-426-5621.
A13OR 607-739-5622.
A24LNDG FEE FOR ALL NON BASED ACFT.
A26ARFF INDEX "C" EQUIPMENT COVERAGE IS AVBL UPON REQUEST CTC ARPT MANAGEMENT AT 607-426-5621.
A39-06/24PCR VALUE: 560/F/B/X/T
A39-10/28PCR VALUE: 640/F/B/X/T
A42-05_MARKRWY 05/23 MKD WITH ASPH "L" CORNER MARKERS.
A43-24PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 10/28; TWY LGTS - CTAF.
E111EXISTED PRIOR TO 1959.
E147TPA: 1545 FT AGL RECIPROCATING ENG, 2045 FT AGL TURBOPROP/JET.
E60-06_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 259 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT DER 06.
ELMIRA/CORNING RGNL (ICAO: KELM, IATA: ELM) is a public airport located in ELMIRA/CORNING, NY, US.
