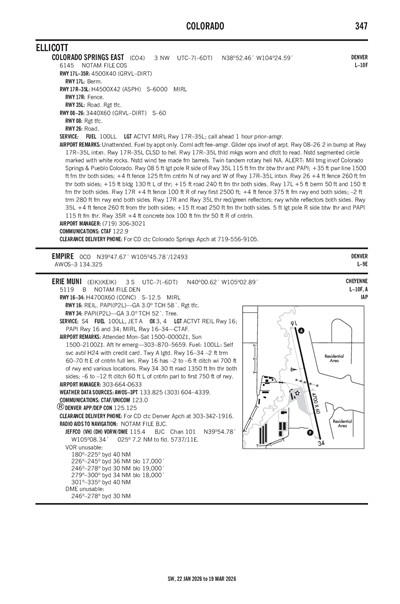

ERIE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEIK
ICAO KEIKLocal EIK
ERIE MUNI
PublicPUB

3 miles S of ERIE, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 00' 37"N 105° 02' 53"W
Elevation
5119' MSL
Pattern Alt
6119' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KEIK VFR
6:55 PM MST
Overcast 3,500'
10sm
44°F
36°F
30.20"Hg
350° 5kts
AO2 T00650020 $
METAR KEIK 040155Z AUTO 35005KT 10SM OVC035 06/02 A3020 RMK AO2 T00650020 $
+ Add Your Business

KEIK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 133.825
(303) 604-4339

Common

CTAF 123.0
ACTVT REIL RWY 16; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
UNICOM 123.0

Approach

DENVER APPROACH 125.125

Departure

DENVER DEPARTURE 125.125

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBJC (7nm)
Tue, 3/3 4:37 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Showers in vicinity
Broken 7,000'
Scattered 3,000'
6sm
360° 10kts
MVFR
Temporary 5:00 PM MST - 9:00 PM MST
Light Showers and Rain and Mist
Broken 1,000'
5sm
Calm
VFR
9:00 PM MST - 1:00 AM MST
Broken 5,000'
Scattered 3,000'
6sm
360° 10kts
VFR
1:00 AM MST - 6:00 AM MST
Scattered 5,000'
Few 500'
6sm
240° 6kts
VFR
6:00 AM MST - 12:00 PM MST
Few 15,000'
6sm
180° 6kts
VFR
12:00 PM MST - 5:00 PM MST
Few 15,000'
6sm
120° 6kts
TAF KBJC 032337Z 0400/0424 36010KT P6SM VCSH SCT030 BKN070
   TEMPO 0400/0404 5SM -SHRA BR BKN010
   FM040400 36010KT P6SM SCT030 BKN050
   FM040800 24006KT P6SM FEW005 SCT050
   FM041300 18006KT P6SM FEW150
   FM041900 12006KT P6SM FEW150
KEIK
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0213Z
2/25/26
2359Z
Runway!DEN 02/450 EIK RWY 16/34 PAPI U/S 2602230213-2602252359
2/9/26
1918Z
2/9/27
2359Z
!DEN 02/167 EIK AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS 0.5NM RADIUS OF 395739N1050213W (4.5NMNE BJC) SFC-400FT AGL 2602091918-2702092359
2/2/26
2041Z
3/2/26
2033Z
!DEN 02/039 EIK OBST OIL RIGS (ASN UNKNOWN) 400131N1050419W (1.4NM NW EIK) UNKNOWN (104FT AGL) FLAGGED AND LGTD 2602022041-2603022033
FDC
2/23/26
1438Z
5/13/26
1438Z
!FDC 6/8329 EIK IAP ERIE MUNI, ERIE, CO.
VOR-A, AMDT 1...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BJC VOR/DME UNMONITORED. 2602231438-2605131438EST
9/8/25
1650Z
!FDC 5/9667 EIK ODP ERIE MUNI, ERIE, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
NOTE: RWY 16, STANDARD WITH A MINIMUM CLIMB OF 475 FT PER NM TO 8200.
TAKE-OFF MINIMUMS RWY 16, STANDARD WITH A MINIMUM CLIMB OF 475 FT PER NM TO 8200.
RWY 34, STANDARD WITH A MINIMUM CLIMB OF 450 FT PER NM TO 8200.
ADD TAKEOFF OBSTACLE NOTE: RWY 16, MULTIPLE BUILDINGS BEGINNING 4584 FT FROM DER, BEGINNING 1554 FT LEFT OF CENTERLINE, UP TO 33 FT AGL/5265 FT MSL. LIGHTPOLE 4884 FT FROM DER, 1330 FT LEFT OF CENTERLINE, 62 FT AGL/5266 FT MSL.
CHANGE ALL REFERENCES OF RWY 15/33 TO 16/34. ALL OTHER DATA REMAINS AS PUBLISHED. 2509081650-2709081649EST
No
MON-SAT 0800-1700
SUN 0800-1400
TOWN OF ERIE
PO BOX 750
ERIE, CO 80516
Phone: 303-926-2870
JASON HURD
395 AIRPORT DRIVE
ERIE, CO 80516
Phone: 303-664-0633
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 16; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16/34

4700 ft. x 60 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 167°347°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 00' 60"N 40° 00' 14"N
Longitude 105° 02' 60"W 105° 02' 46"W
Elevation 5,076' 5,119'
Threshold Crossing Height 58 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10AFT HR EMERG - 303-870-5659.
A110-12TWY A LGTD.
A110-13FOR CD CTC DENVER APCH AT 303-342-1916.
A30-16/34-2 FT TRRN 60 - 70 FT E OF CNTRLN FULL LEN.
A30A-16-2 TO -6 FT DITCH WI 700 FT OF RWY END VARIOUS LOCATIONS.
A30A-3430 FT ROAD 1350 FT FM THR BOTH SIDES; -6 TO -12 FT DITCH 60 FT L OF CNTRLN PARL TO FIRST 750 FT OF RWY.
A70-100LLSELF SVC AVBL H24 WITH CREDIT CARD.
A81-APTACTVT REIL RWY 16; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
E111PROVIDED TELEPHONE WIRES NORTH & EAST OF FACILITY ARE EITHER MARKED OR BURIED.
ERIE MUNI (ICAO: KEIK, IATA: EIK) is a public airport located in ERIE, CO, US.
