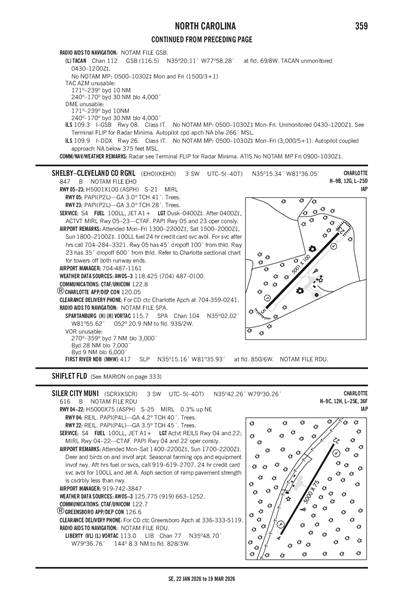

SHELBY-CLEVELAND COUNTY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEHO
ICAO KEHOLocal EHO
SHELBY-CLEVELAND COUNTY RGNL
PublicPUB

3 miles SW of SHELBY, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 15' 21"N 81° 36' 03"W
Elevation
847' MSL
Pattern Alt
1847' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KEHO VFR
8:55 PM EST
Clear
10sm
50°F
45°F
30.34"Hg
160° 3kts
AO2 T01000070
METAR KEHO 040155Z AUTO 16003KT 10SM CLR 10/07 A3034 RMK AO2 T01000070
+ Add Your Business

KEHO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.425
(704) 487-0100

Common

CTAF 122.8
DUSK-2300. AFTER 2300 ACTVT MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPER CONSLY.
UNICOM 122.8

Arrival

JOOLS STAR 135.6
RASLN STAR 126.15

Approach

CHARLOTTE APPROACH 120.05

Departure

CHARLOTTE DEPARTURE 120.05

Terminal Area Forecast

KHKY (31nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 2:00 AM EST
Sky Clear
6sm
190° 3kts
MVFR
2:00 AM EST - 3:00 AM EST
Mist
Broken 2,300'
6sm
VRB° 2kts
MVFR
3:00 AM EST - 4:00 AM EST
Mist
Broken 1,300'
3sm
Calm
IFR
4:00 AM EST - 8:00 AM EST
Mist
Broken 900'
1.5sm
Calm
LIFR
8:00 AM EST - 9:00 AM EST
Mist
Broken 300'
2sm
Calm
MVFR
9:00 AM EST - 7:00 PM EST
Mist
Scattered 1,400'
5sm
VRB° 2kts
TAF KHKY 032339Z 0400/0424 19003KT P6SM SKC
   FM040700 VRB02KT 6SM BR BKN023
   FM040800 00000KT 3SM BR BKN013
   FM040900 00000KT 1 1/2SM BR BKN009
   FM041300 00000KT 2SM BR BKN003
   FM041400 VRB02KT 5SM BR SCT014
KEHO
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1400Z
2/27/26
2200Z
!EHO 02/003 EHO AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF EHO SFC-3500FT AGL ACFT CS FLC67
2602271400-2602272200
2/23/26
0752Z
3/25/26
2359Z
!EHO 02/004 EHO OBST TOWER LGT (ASR 1007399) 351352.00N0814256.00W (5.8NM WSW EHO) 1148.3FT (269.0FT AGL) U/S 2602230752-2603252359
2/14/26
2344Z
3/1/26
2244Z
!EHO 02/002 EHO OBST TOWER LGT (ASR 1292798) 350527.50N0813332.20W (10.1NM SSE EHO) 942.3FT (261.2FT AGL) U/S 2602142344-2603012244
2/2/26
1225Z
3/7/26
2327Z
!EHO 02/001 EHO AIRSPACE UAS WI AN AREA DEFINED AS 3.5NM RADIUS OF 351636N0813145W (4.2NM ENE EHO) SFC-400FT AGL DLY 1225-2327 2602021225-2603072327
1/29/26
1950Z
4/29/26
0500Z
!EHO 01/013 EHO OBST TOWER LGT (ASR 1056421) 352022.00N0812555.00W (9.8NM ENE EHO) 1120.1FT (270.0FT AGL) U/S 2601291950-2604290500
1/26/26
1514Z
4/27/26
0500Z
!EHO 01/011 EHO OBST TOWER LGT (ASR 1031546) 351757.30N0813545.60W (2.6NM NE EHO) 1202.8FT (320.9FT AGL) U/S 2601261514-2604270500
1/22/26
1603Z
4/22/26
0500Z
!EHO 01/008 EHO OBST TOWER LGT (ASR 1024603) 351808.30N0814000.20W (4.2NM NW EHO) 1174.9FT (316.9FT AGL) U/S 2601221603-2604220500
1/22/26
1601Z
4/22/26
0500Z
!EHO 01/007 EHO OBST TOWER LGT (ASR 1241213) 351312.80N0814648.00W (9.1NM WSW EHO) 1091.9FT (311.0FT AGL) U/S 2601221601-2604220500
FDC
3/3/25
1737Z
!FDC 5/8656 EHO IAP SHELBY-CLEVELAND COUNTY RGNL, SHELBY, NC.
RNAV (GPS) RWY 23, ORIG-B...
LNAV/VNAV DA 1126/HAT 279, VISIBILITY 1 ALL CATS.
2503031737-2610131737EST
1/8/25
1619Z
!FDC 5/1504 EHO ODP SHELBY-CLEVELAND COUNTY RGNL, SHELBY, NC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 5: TREES BEGINNING 72 FT FROM DER, 143 FT LEFT OF CENTERLINE, UP TO 914 FT MSL.
TREE 910 FT FROM DER, 165 FT RIGHT OF CENTERLINE, 861 FT MSL.
TREES BEGINNING 983 FT FROM DER, 197 FT RIGHT OF CENTERLINE, UP TO 874 FT MSL. RWY 23: TREES BEGINNING 22 FT FROM DER, 446 FT LEFT OF CENTERLINE, UP TO 860 FT MSL.
TREES BEGINNING 193 FT FROM DER, 284 FT LEFT OF CENTERLINE, UP TO 897 FT MSL.
TREES BEGINNING 376 FT FROM DER, 35 FT RIGHT OF CENTERLINE, UP TO 885 FT MSL.
TREES BEGINNING 546 FT FROM DER, 147 FT LEFT OF CENTERLINE, UP TO 908 FT MSL.
TREES BEGINNING 2505 FT FROM DER, 922 FT LEFT OF CENTERLINE, UP TO 911 FT MSL. 2501081619-2701081619EST
No
MON-FRI 0800-1700
SUN 1300-1600
SAT 1000-1500
CITY OF SHELBY
830 COLLEGE AVE, HIGHWAY 150
SHELBY, NC 28152
Phone: 704-487-1161
JACK POOLE
830 COLLEGE AVE, HIGHWAY 150
SHELBY, NC 28152
Phone: 704-487-1161
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EHO
--
DUSK-2300. AFTER 2300 ACTVT MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

5001 ft. x 100 ft.
ASPH
Good
NONE
MED

21,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 15' 03"N 35° 15' 39"N
Longitude 81° 36' 24"W 81° 35' 42"W
Elevation 834' 837'
Threshold Crossing Height 41 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3FOR SERVICE AFTER HOURS CALL 704 284-3321.
A110-4RY 23 HAS 35 FT DROP-OFF 600 FT FM THLD 0B.
A110-5RY 05 HAS 45 FT DROP-OFF 100 FT FM THLD 0B.
A110-6FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A110-7REFER TO CHARLOTTE SECTIONAL CHART FOR TOWERS OFF BOTH RWY ENDS.
A70-100LL100LL FUEL 24 HR CREDIT CARD SVC AVBL.
A81-APTDUSK-2300. AFTER 2300 ACTVT MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPER CONSLY.
SHELBY-CLEVELAND COUNTY RGNL (ICAO: KEHO, IATA: EHO) is a public airport located in SHELBY, NC, US.
