KEGI
DUKE FLD,(EGLIN AF AUX NR 3)
PrivatePVT

3 miles W of CRESTVIEW, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 38' 55"N 86° 31' 19"W
195' MSL
1195' MSL
03W
None Listed
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KEGI VFR
6:55 AM CDT
Broken 11,000'
10sm
74°F
72°F
29.92"Hg
Calm
AO2 SLP131 T02310221 10241 20224 52009 $
KEGI 241155Z AUTO 00000KT 10SM BKN110 23/22 A2992 RMK AO2 SLP131 T02310221 10241 20224 52009 $
+ Add Your Business

KEGI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Ground

GND/P
 123.25

Tower

LCL/P
 133.2

Other

COMD POST
 138.437

FAA A/FD Pages

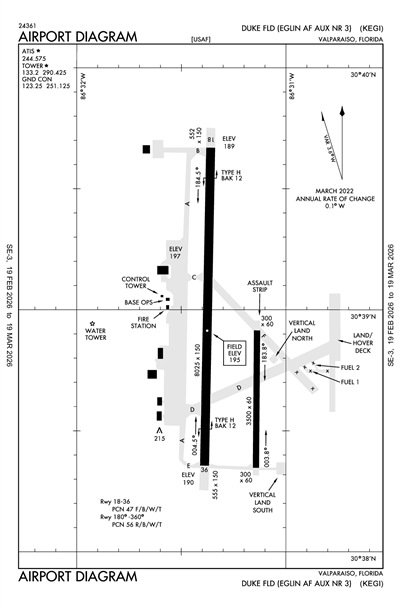

Airport Diagrams

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEGI
Fri, 8/22 8:00 PM CDT
Fri, 8/22 8:00 PM CDT - Sun, 8/24 2:00 AM CDT
VFR
8:00 PM CDT - 10:00 AM CDT
Scattered 4,000'
Scattered 4,000'
Scattered 2,400'
6sm
29.88"Hg
050° 5kts
VFR
Becoming 10:00 AM CDT - 12:00 PM CDT
Light Showers and Rain
Broken 8,500'
Broken 4,000'
Scattered 2,400'
5.59sm
29.91"Hg
040° 5kts
VFR
Becoming 12:00 PM CDT - 7:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,500'
Broken 4,000'
Scattered 2,400'
5.59sm
29.85"Hg
310° 5kts
MVFR
Temporary 1:00 PM CDT - 6:00 PM CDT
Light Thunderstorm and Rain
Broken 9,000'
Broken 6,500'
Few 3,500'
4.97sm
29.88"Hg
280° 5kts
MVFR
Becoming 7:00 PM CDT - 2:00 AM CDT
Broken 9,000'
Broken 2,400'
Few 1,600'
6sm
29.85"Hg
250° 3kts
TAF KEGI 230100Z 2301/2407 05005KT 9999 SCT024 SCT040 SCT040 QNH2988INS
   BECMG 2315/2316 04005KT 9000 -SHRA SCT024 BKN040 BKN085 QNH2990INS
   BECMG 2317/2318 31005KT 9000 -SHRA VCTS SCT024CB BKN040 BKN055 OVC085 QNH2984INS
   TEMPO 2318/2323 28005KT 8000 -TSRA FEW035CB BKN065 BKN090 OVC130 QNH2987INS
   BECMG 2400/2401 25003KT 9999 NSW FEW016 BKN024 BKN090 OVC140 QNH2984INS TX31/2320Z TN23/2311Z LAST NO AMDS AFT 2305 NEXT 2509
KEGI
Military
5/23/251345Z !KEGI M0232/25 EGI AD AIRPORT CLSD 23 MAY. 2505231345-2505240500
5/17/250204Z CAUTION: BALLPARK LIGHT NUMBER 6 OBSTRUCTION NOT LGTD. LOCATED (38.8500N/31.56666W) WEST OF RWY18/36 1020 FT FROM RCL 100 FT AGL.
5/5/251712Z AERODROME REMOTELY PILOTED AIRCRAFT OPERATIONS IN PROGRESS DAILY, MONDAY-FRIDAY 1400Z - 0100Z
4/16/251809Z WINDS REPORTED BY A SINGLE WIND SENSOR LOCATED 1400 FT FROM APPROACH END OF RWY 18
4/11/251324Z RWY18/36 MOWING OPERATIONS M-F 1400-2100Z.
3/31/251522Z OBST 90 FT COMMUNICATIONS TOWER LOCATED 950 FT WEST OF RWY 18/36 AT MID FIELD DAILY DURING DAYLIGHT HOURS.
3/28/251306Z CAUTION - APPROX 1/2 MILE WEST OF DUKE RWY 18/36 IS A METAL, RED & WHITE MICROWAVE TOWER, APROX 100 FEET TALL - OBSTRUCITON LIGHTS OTS
3/13/252119Z AERODROME BASH PHASE II IN EFFECT
Yes
MON-FRI 1445-0600Z++
CLSD WKEND AND HOL. BASE OPS/ATC NOT MANNED OT.
USAF
DEPT OF THE AF, HQ ADTC
EGLIN AFB, FL 32542
N/A
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
Sunset to Sunrise
--
N/A
ROTG BCN OTS SS-SR.
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
Low Pressure
None

Runway 18/36

8025 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
47 /F/B/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 39' 41"N 30° 38' 22"N
Longitude 86° 31' 22"W 86° 31' 23"W
Elevation 189' 190'
Threshold Crossing Height 59 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 SALSF
Centerline Lights No No
Runway End Identifier Lights No No
A110-11TRAN ALERT: TRAN ALERT SVC PRVDD AT DUKE BY EGLIN AFB (KVPS) AND ONLY AVBL FOR APV 7TH SFG MSNS AND LCL (BASE ASGN) ACFT DEPLOYMENT MSNS. TACC OR UNITS SUPPORTING TRAN MSNS MUST COORD THE PPR REQUEST 7 DAYS IN ADVN OF ARR DATE TO ENSURE USE OF DUKE FIELD. UNITS SUPPORTING 7TH SFG MSNS MUST BRING CREW CHIEF FOR LCL RRBN FLTS. TRAN ACFT MUST USE FLW ME TO PRKG. TRAN ACFT NOT ALLOWED WHEN TRAN ALERT UNAVBL. TRAN ALERT WILL NOT SUPPORT ACFT AT EGI THAT UTILIZE KVPS AS THE INITIAL ARR LCTN. TRAN PRKG ROWS 9 & 11 RSTD TO TRAN ACFT ONLY. ROW 15 RESD FOR C-130 AND C-17 ONLY. FLEET SVC UNAVBL.
A110-17CSTMS/AG/IMG: LTD SVC, NO RESIDENT CSTMS AGENT. AVBL ONLY TO BASE ASGN ACFT AND 7TH SPECIAL FORCES GP (7 SFG) APVD MSN. 48 HR PN RQR. ALL OTHER ACFT MUST CLEAR CSTMS PRIOR TO ARR.
A110-19MISC: EXP NO NTC CLOSURE OF DUKE FLD AIRSPACE FOR SPECIAL MSN TEST. STD USAF RSRS APPLIED. BASE OPS DSN 875-6516, C850-883-6516, NML OPR WKD.
A110-22COMD POST: (CALL SANDCASTLE) DSN 875-6701, C850-883-6701 OR 1-800-437-8843.
A110-26MISC- WX OPR 1400-0600Z++. REMOTE BRIEFING AVBL 96 WS EGLIN AFB, DSN 872-4800, C850-882-4800. AFLD WX MNT BY AN/FMO-19 ASOS; AUGMENTED 1400-0600Z++ WKD, AUTOMATED 0600-1400Z++ MON-FRI AND H24 WKEND/HOL. AFLD VIS RSTD TO 1/8 SM TO SW AND 1/4 SM W THRU NW DUE TO MAIN BASE STRUCTURES; MAX SFC VIS MRK 1 SM (SE). NGT CLOUD COVER VIEWING RSTD DUE TO SFC LGT.
A110-30SERVICE-LGT: RWY 36 ALS NSTD (ONLY HIRL, THLD, PRE-THLD, AND TERM BAR AVBL). RWY 180 AND RWY 360 LZ NSTD AFLD MRK PAT (AMP) LGT CONFIGN FLASHING STROBE LIGHT(FSL) NOT ON CNTRLN. FSLS OFFSET 30 FT TO LEFT AT EACH END. RWY 18 PAPI RRP NOT COINCIDENTAL WITH ILS RPI.
A110-32CAUTION: HI VOLUME OF MIL TRNG ACFT NEAR CEW VORTAC AND IN VCNTY OF BOB SIKES ARPT. UNLGTD OBST ON AFLD. DUE TO LACK OF VISUAL REFERENCE DUR NGT VFR OPR, PILOT EFFORTS TO MAINT ALT BY VISUAL MEANS MAY BE UNREL. N END NSTD OVRN (554 FT X 150 FT). S END NSTD OVRN (556 FT X 150 FT). EXTV ALZ/NVD TRNG IN EFF WKD.
A110-35MISC: AFLD MOWING SEASON MAR-NOV. EXP INCREASED BIRD ACTIVITY INVOF MOWERS OPERATING ON AFLD.
A110-36CAUTION: DITCHES APPROX 1260 FT FROM LDG THLD EACH SIDE OF RWY ADJ TO BAK-12 A-GEAR (35 FT FROM RWY EDGE LINES) PRESENT HAZ COND IF DIREC CTL LOST DUR TKOF OR LDG PHASE OF FLT.
A110-38A-GEAR: RWY 18/36 A-GEAR RQR PN; CTC TWR. EXP DELAY OF TO 30 SEC FOR CABLE TO RAISE. DEP END A-GEAR RAISED BY TWR WHEN FTR ACFT IN PAT. EXP NO NOTICE RWY CLOSURE AFTER BAK-12 ENGAGEMENT (UP TO 2 HOURS). STD A-GEAR CONFIGN IS BOTH ENDS IN DOWN POSN. A-G UNAVBL, O/S OUTSIDE PUBLISHED HR, DUR WKENDS, AND NATL HOL (NOT INSPECTED OR CERTIFIED).
A110-40CAUTION: MANDATORY SIGNS AT TWYS C, D, E, AND F IMPROPERLY SITED; LCTD 60 FT FROM TWY EDGE.
A110-41RWY 18 AND RWY 36 OVERRUN SURFACES ARE ASPHALT.
A110-42TWY D NE OF THE APEX LTD TO CV-22 DUE TO TWY LATERAL OBST CLNC. THE HOT PIT FUEL LANES EAST OF APEX CLSD TO ALL ACFT DUE TO TWY LATERAL OBST CLNC
A110-43FUEL: A++
A110-44JASU: (AM32A-95) (B-809)
A110-45FLUID: PRESAIR, OIL, LOX, AND SOAP/JOAP UNAVBL.
A110-46RSTD: OFFL BUS ONLY. PRACTICE APP AND TOUCH AND GO OPS RSTD TO 919 SOW, 492 SOW, 96 TW, 33 FW AND AFSOC ASGN ACFT ONLY. LCL ACFT REQ PAX PICKUP AND/OR DROP OFF AT AM OPS RQR PRIOR COORD WITH AFLD MGMT. TAXI TRNG FOR BASE ASGN ACFT MUST BE ACCOMPLISHED ON TWY D EAST, TWY F EAST, VERTICAL LAND NORTH, VERTICAL LAND SOUTH EAST OF THE ASSAULT LDG ZONE (LZ). NO C-5 ACFT ON TWY A NORTH OF MAIN RAMP. TWYS D EAST AND F HAVE WT RSTRN FOR C-17 ACFT; SEE ASRR AND CTC AFLD MGMT. CDDAR SVC LMTD AND BASED OUT OF KVPS. TRAN AIRCREW SUPPORTING 7TH SFG AIRBORNE OPS MUST OBTAIN LCL AREA RANGE ORIENTATION BRFG; CTC 7TH SFG S3 AIR OPS, C850-885-7305. LDG ZONE (LZ) RSTD FOR USE BY 919 SOW, 492 SOW, 96 TW AND AFSOC ASGN ACFT ONLY. NO DAYTIME VISUAL LDG ZONE MKR PANELS AVBL ON LDG ZONE (LZ). 180 DEG TURNS ON RWY 180/360 LZ LMTD TO U-28, PC-12, C-145, C-146 AND C-208 ACFT. 180 DEG TURNS UNAUTH ON RWY 18/36.
A110-47ARFF COND FOR DUKE FLD IS OPTIMUM LEVEL OF SVC (OLS) FOR CATS 1-2 AND REDUCED LEVEL OF SVC (RLS) FOR CAT 3-6, 7600 GAL AVBL.
A110-48COMMUNICATIONS: PMSV METRO - 377.625. NO SVC OUTSIDE AFLD OPR HRS - CTC CMD POST.
A110-49PRKG ROW 9 RSTRD TO C208 ACFT ONLY.
A110-50USE CAUTION FOR UAS OPS IN VCNTY OF DUKE FLD.
DUKE FLD,(EGLIN AF AUX NR 3) (ICAO: KEGI, IATA: EGI) is a private airport located in CRESTVIEW, FL.
