No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEEN
DILLANT/HOPKINS
PublicPUB

2 miles S of KEENE, NH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 53' 54"N 72° 16' 15"W
488' MSL
1488' MSL
15W
JET A, 100LL
BANGOR (BGR)
NEW YORK
BOSTON (ZBW)
4/17/25-5/15/25
KEEN VFR
2:56 AM EDT
Clear
10sm
42°F
41°F
30.05"Hg
Calm
AO2 SLP180 T00560050 $
KEEN 030656Z AUTO 00000KT 10SM CLR 06/05 A3005 RMK AO2 SLP180 T00560050 $
+ Add Your Business

KEEN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
603-358-6424
 119.025

FAA A/FD Pages

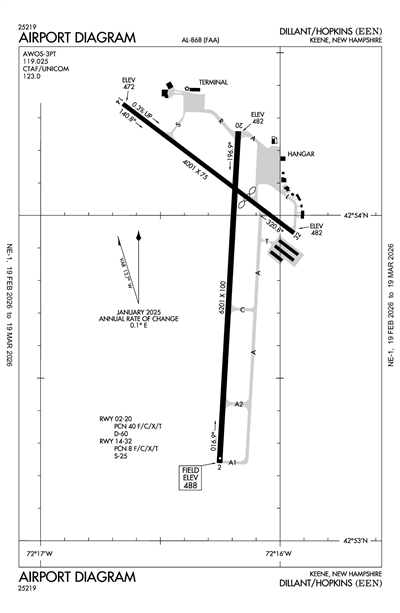

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMHT (37nm)
Tue, 6/3 1:20 AM EDT
Tue, 6/3 2:00 AM EDT - Wed, 6/4 2:00 AM EDT
VFR
2:00 AM EDT - 1:00 PM EDT
Few 10,000'
6sm
VRB° 3kts
VFR
1:00 PM EDT - 6:00 PM EDT
Sky Clear
6sm
300° 6kts
VFR
6:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
190° 8kts
KMHT 030520Z 0306/0406 VRB03KT P6SM FEW100
   FM031700 30006KT P6SM SKC
   FM032200 19008KT P6SM FEW250
KEEN
Domestic
5/16/250521Z !EEN 05/011 EEN NAV ILS RWY 02 NOT MNT 2505160521-2505222000EST
5/10/251852Z !EEN 05/008 EEN SVC AUTOMATED WX BCST SYSTEM U/S 2505101852-2505222359
5/7/251651Z !EEN 05/005 EEN RWY 20 PAPI U/S 2505071651-2508122200
4/20/250538Z !EEN 04/015 EEN OBST TOWER LGT (ASR 1211740) 425540.50N0721521.50W (1.9NM NNE EEN) 1179.8FT (134.8FT AGL) U/S 2504200538-2506040537
FDC
5/21/251300Z !FDC 5/3186 EEN IAP DILLANT/HOPKINS, KEENE, NH.
ILS OR LOC RWY 2, AMDT 6A...
CIMVI FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA,
EEN DME OUT OF SERVICE. 2505211300-2505281429EST
No
MON-FRI 0700-1900
SAT-SUN 0700-1700
CITY OF KEENE
3 WASHINGTON ST
KEENE, NH 03431
Phone: 603-357-9835
DAVID HICKLING
80 AIRPORT RD
KEENE, NH 03431
Phone: 603-357-9835
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
EEN
--
ACTVT MALSR RWY 02; HIRL RWY 02/20; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

6201 ft. x 100 ft.
ASPH
Excellent
NONE
HIGH
40 /F/C/X/T
--
60,000lbs
--
--
  Runway 02 Runway 20
True Heading 3°183°
Traffic Pattern Left Left
Markings PIR BSC
Markings Condition GOOD GOOD
Latitude 42° 53' 14"N 42° 54' 16"N
Longitude 72° 16' 15"W 72° 16' 10"W
Elevation 488' 482'
Threshold Crossing Height 39 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 14/32

4001 ft. x 75 ft.
ASPH
Excellent
NONE
MED
8 /F/C/X/T
25,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 127°307°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 54' 21"N 42° 53' 57"N
Longitude 72° 16' 39"W 72° 15' 57"W
Elevation 472' 482'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE ON & INVOF ARPT.
A110-3NOISE ABATEMENT PROC: HEL TFC AVOID RESIDENTIAL AREAS DRCTLY N OF RWY 02-20 & SW OF ARPT. HEL TFC LIMIT MULT CLSD PAT OPS.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859.
A110-5COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-6NO ENG RUN-UPS ON TRML NW APN.
A110-7GRASS AREAS NOT MNTND FOR TKOFS & LDGS.
DILLANT/HOPKINS (ICAO: KEEN, IATA: EEN) is a public airport located in KEENE, NH.
