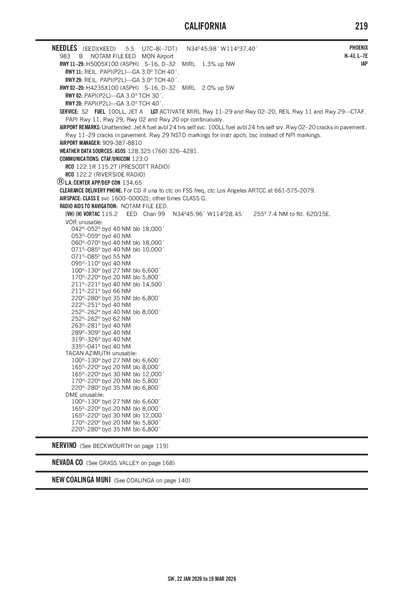

NEEDLES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEED
ICAO KEEDIATA EEDLocal EED
NEEDLES
PublicPUB

5 miles S of NEEDLES, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 45' 59"N 114° 37' 24"W
Elevation
983' MSL
Pattern Alt
1983' MSL
Mag Variation
11°E
Declination
14°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KEED VFR
4:56 AM PST
Clear
10sm
55°F
27°F
29.96"Hg
240° 5kts
AO2 SLP125 T01281028
METAR KEED 041256Z AUTO 24005KT 10SM CLR 13/M03 A2996 RMK AO2 SLP125 T01281028
+ Add Your Business

KEED FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 128.325
(760) 326-4281

Common

CTAF 123.0
ACTVT MIRL RY 11/29 & RY 02/20, REIL RY 11& RY 29 - CTAF. PAPI RY 11, RY 29, RY 02 & RY 20 OPER CONTINUOUSLY.
UNICOM 123.0

Center

L.A. CENTER CENTER 134.65
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQUENCIES 134.65/360.65 (NELSON RCAG).

Flight Service

Flight Service 122.2
(RAL)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KEED
Wed, 3/4 3:20 AM PST
Wed, 3/4 4:00 AM PST - Thu, 3/5 4:00 AM PST
VFR
4:00 AM PST - 8:00 AM PST
Few 25,000'
6sm
330° 8kts
VFR
8:00 AM PST - 3:00 PM PST
Few 25,000'
6sm
VRB° 5kts
VFR
3:00 PM PST - 11:00 PM PST
Few 20,000'
6sm
220° 10kts
VFR
11:00 PM PST - 4:00 AM PST
Few 20,000'
6sm
280° 11kts
TAF KEED 041120Z 0412/0512 33008KT P6SM FEW250
   FM041600 VRB05KT P6SM FEW250
   FM042300 22010KT P6SM FEW200
   FM050700 28011KT P6SM FEW200
KEED
No NOTAM Available
No
UNATNDD
CO OF SAN BERNARDINO
777 E RIALTO
SAN BERNARDINO, CA 92415
Phone: 909-387-7810
MAUREEN A. SNELGROVE
711 AIRPORT RD
NEEDLES, CA 92363
Phone: 909-387-8810
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
EED
--
ACTVT MIRL RY 11/29 & RY 02/20, REIL RY 11& RY 29 - CTAF. PAPI RY 11, RY 29, RY 02 & RY 20 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 02/20

4235 ft. x 100 ft.
ASPH
Poor
NONE
MED

16,000lbs
32,000lbs
--
--
  Runway 02 Runway 20
True Heading 29°209°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 45' 52"N 34° 46' 28"N
Longitude 114° 37' 23"W 114° 36' 58"W
Elevation 929' 844'
Threshold Crossing Height 30 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

5005 ft. x 100 ft.
ASPH
Poor
NONE
MED

16,000lbs
32,000lbs
--
--
  Runway 11 Runway 29
True Heading 119°299°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 34° 46' 01"N 34° 45' 37"N
Longitude 114° 38' 01"W 114° 37' 09"W
Elevation 983' 918'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1<UNLGTD MTN WEST & SOUTH OF ARPT APRX 3200' MSL.
A110-2(E81) 2 LGTS EACH SIDE MARKING RWY EXITS; REFLECTORS MARKING TWYS.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A33-02/20_CONDCRACKS IN PAVEMENT.
A33-11/29_CONDCRACKS IN PAVEMENT
A42-29_MARKNSTD MARKINGS FOR INSTR APCH; BSC INSTEAD OF NPI MARKINGS.
A70-100LL100LL FUEL AVBL 24 HRS SELF SRV
A70-AJET A FUEL AVBL 24 HRS SELF SVC
A81-APTACTVT MIRL RY 11/29 & RY 02/20, REIL RY 11& RY 29 - CTAF. PAPI RY 11, RY 29, RY 02 & RY 20 OPER CONTINUOUSLY.
E111ESTABD PRIOR TO 5/15/59.
NEEDLES (ICAO: KEED, IATA: EED) is a public airport located in NEEDLES, CA, US.
