KEBD
SOUTHERN WEST VIRGINIA RGNL
PublicPUB

8 miles E of WILLIAMSON, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 40' 54"N 82° 07' 19"W
1883' MSL
2883' MSL
07W
JET A-1, 100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
10/31/24-11/28/24
K6L4 (14nm) VFR
6:55 AM EST
Clear
10sm
45°F
37°F
30.27"Hg
040° 3kts
AO2
K6L4 091155Z AUTO 04003KT 10SM CLR 07/03 A3027 RMK AO2
Add Your Business

KEBD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

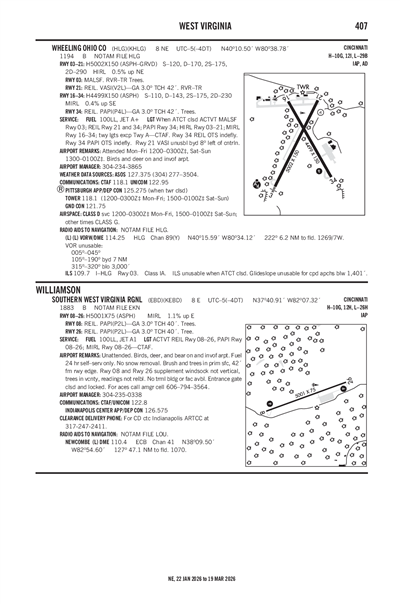

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSJS (25nm)
Sat, 11/9 6:40 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 8:00 PM EST
Broken 25,000'
6sm
VRB° 3kts
VFR
8:00 PM EST - 4:00 AM EST
Broken 9,000'
Scattered 4,000'
6sm
150° 5kts
VFR
4:00 AM EST - 7:00 AM EST
Light Showers and Rain
Overcast 6,000'
Scattered 3,000'
6sm
160° 5kts
KSJS 091140Z 0912/1012 VRB03KT P6SM BKN250
   FM100100 15005KT P6SM SCT040 BKN090
   FM100900 16005KT 6SM -SHRA SCT030 OVC060
KEBD
Domestic
10/29/241251Z !EKN 10/217 EBD RWY 26 RWY END ID LGT U/S 2410291251-2412312359
10/29/241251Z !EKN 10/216 EBD RWY 08 PAPI U/S 2410291251-2412312359
10/29/241242Z !EKN 10/213 EBD RWY 08 RWY END ID LGT U/S 2410291242-2412312359
10/26/242112Z !EKN 10/194 EBD OBST TOWER LGT (ASR 1033951) 373826.00N0815935.00W (6.6NM ESE EBD) 2768.7FT (268.7FT AGL) U/S 2410262112-2411102112
FDC
4/12/231926Z !FDC 3/0937 EBD ODP SOUTHERN WEST VIRGINIA RGNL, WILLIAMSON, WV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
IN ADDITION TO PUBLISHED TAKEOFF OBSTACLE NOTES, ADD THE FOLLOWING:
RWY 8: TREE 1.7 NM FROM DER, 2956 FT RIGHT OF CENTERLINE, 101 FT AGL/2173 FT MSL. 2304121926-2504121926EST
No
UNATNDD
MINGO COUNTY AIRPORT AUTHORITY
MINGO COUNTY COURTHOUSE, 78 EAST 2ND AVE, RM 308
WILLIAMSON, WV 25661
Phone: 304-235-0380
LEIGH ANN WELLS-RAY
MINGO COUNTY AIRPORT AUTHORITY, MINGO COUNTY COURTHOUSE
WILLLIAMSON, WV 25661
Phone: 304-235-0338
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 08/26

5001 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 70°250°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 40' 46"N 37° 41' 03"N
Longitude 82° 07' 49"W 82° 06' 50"W
Elevation 1,827' 1,883'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS, DEER, & BEAR ON & INVOF ARPT.
A110-2NO SNOW REMOVAL.
A110-3NO TRML BLDG OR FAC AVBL. ENTRANCE GATE CLSD & LOCKED. FOR ACES CALL AMGR CELL 606-794-3564.
A110-5FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
A110-6BRUSH & TREES IN PRIMARY SFC, 42 FT FM RWY EDGE.
A110-7RWY 08 & RWY 26 SUPPLEMENT WINDSOCK NOT VERTICAL, TREES IN VCNTY, READINGS NOT RELBL.
SOUTHERN WEST VIRGINIA RGNL (ICAO: KEBD, IATA: EBD) is a public airport located in WILLIAMSON, WV.
