KEAU
CHIPPEWA VALLEY RGNL
PublicPUB

3 miles N of EAU CLAIRE, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 51' 57"N 91° 29' 03"W
913' MSL
1913' MSL
01E
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KEAU VFR
5:56 AM CST
Clear
10sm
37°F
33°F
30.25"Hg
VRB° 4kts
AO2 SLP252 T00280006 10044 20006 55005
KEAU 091156Z VRB04KT 10SM CLR 03/01 A3025 RMK AO2 SLP252 T00280006 10044 20006 55005
Add Your Business

KEAU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.575

ATIS

ATIS
Hours: 0530-2030
 126.025

ASOS

ASOS
715-832-7990
 126.025

Ground

GND/P
 120.925

Tower

LCL/P
 118.575

FAA A/FD Pages

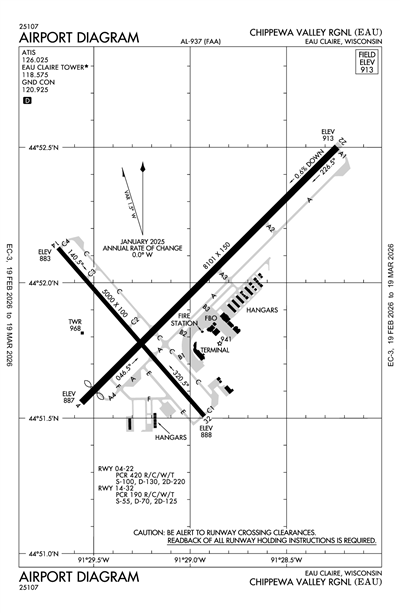

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAU
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Scattered 25,000'
6sm
VRB° 3kts
VFR
10:00 AM CST - 8:00 PM CST
Broken 15,000'
6sm
140° 7kts
VFR
8:00 PM CST - 11:00 PM CST
Light Showers and Rain and Mist
Overcast 3,500'
6sm
120° 7kts
MVFR
11:00 PM CST - 2:00 AM CST
Overcast 2,000'
6sm
120° 6kts
IFR
2:00 AM CST - 6:00 AM CST
Mist
Overcast 800'
6sm
120° 4kts
KEAU 091120Z 0912/1012 VRB03KT P6SM SCT250
   FM091600 14007KT P6SM BKN150
   FM100200 12007KT 6SM -SHRA BR OVC035
   FM100500 12006KT P6SM OVC020
   FM100800 12004KT 6SM BR OVC008
KEAU
Domestic
11/7/241500Z !EAU 11/003 EAU NAV ILS RWY 22 U/S 2411071500-2411072000
11/1/241325Z !EAU 11/001 EAU OBST TOWER LGT (ASR 1285009) 444952.20N0910831.40W (14.7NM E EAU) 1384.8FT (231.0FT AGL) U/S 2411011325-2411161225
10/30/241718Z !EAU 10/030 EAU OBST TOWER LGT (ASR 1273889) 443347.90N0912408.60W (18.5NM S EAU) 1280.2FT (289.0FT AGL) U/S 2410301718-2502282359
10/29/241526Z !EAU 10/028 EAU OBST TOWER (ASR 1304954) 445103.68N0912524.58W (2.7NM ESE EAU) 1330FT (225FT AGL) U/S 2410291526-2411281026
10/23/242014Z !EAU 10/024 EAU OBST TOWER LGT (ASR 1035045) 450221.40N0912117.50W (11.8NM NNE EAU) 1449.1FT (283.1FT AGL) U/S 2410232014-2412072013
10/17/240755Z !EAU 10/018 EAU RWY 04 RWY END ID LGT U/S 2410170755-2411212000EST
10/16/241200Z !EAU 10/006 EAU OBST CRANE (ASN UNKNOWN) 445133N0912913W (.5NM S EAU)
1025FT (140FT AGL) FLAGGED WED THU FRI MON TUE 1200-2130 2410161200-2411292130
10/14/241540Z !EAU 10/010 EAU OBST TOWER LGT (ASR 1036008) 444835.00N0913405.00W (4.9NM SW EAU) 1308.7FT (315.0FT AGL) U/S 2410141540-2501142359
6/11/241719Z !EAU 06/012 EAU OBST TOWER LGT (ASR 1034886) 445654.00N0912256.00W (6.6NM NE EAU) 1190.3FT (265.1FT AGL) U/S 2406111719-2412112359
FDC
11/5/241846Z !FDC 4/9340 EAU IAP CHIPPEWA VALLEY RGNL, EAU CLAIRE, WI.
ILS OR LOC RWY 22, AMDT 10A...
LOC BC RWY 4, AMDT 10...
VOR-A, AMDT 22A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EAU VORTAC UNMONITORED. 2411051846-2412051846EST
10/16/241200Z !FDC 4/9256 EAU IAP CHIPPEWA VALLEY RGNL,
EAU CLAIRE, WI.
RNAV (GPS) RWY 4, AMDT 1...
LPV DA 1158/HAT 269 ALL CATS, VIS 7/8 ALL CATS. WHEN LOCAL
ALTIMETER SETTING NOT RECEIVED, USE RICE LAKE RGNL/CARL'S FLD
ALTIMETER SETTING AND INCREASE LPV DA TO 1268 FEET AND ALL
VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1489 FEET AND ALL
VISIBILITIES 7/8 SM. INCREASE ALL MDAS 120 FEET AND LNAV CAT C/D
AND CIRCLING CAT C VISIBILITY 1/4 SM. TEMPORARY CRANE 1025 MSL
1194FT E OF RWY 4 (2022-AGL-12046-NRA).
2410161200-2412131534EST
2/8/232032Z !FDC 3/3289 EAU ODP CHIPPEWA VALLEY RGNL, EAU CLAIRE, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF OBSTACLE NOTES: RWY 04, TREES BEGINNING 1403 FT FROM DER, 832 FT LEFT OF CENTERLINE, UP TO 960 FT MSL. TREE 1808 FT FROM DER, 923 FT RIGHT OF CENTERLINE, 964 FT MSL. RWY 22, FENCE 3 FT FROM DER, 485 FT RIGHT OF CENTERLINE, 8 FT AGL/888 FT MSL. VEHICLES ON ROAD, POLE BEGINNING 79 FT FROM DER, 426 FT RIGHT OF CENTERLINE, UP TO 891 FT MSL. TREES BEGINNING 594 FT FROM DER, 508 FT LEFT OF CENTERLINE, UP TO 926 FT MSL. TREES BEGINNING 693 FT FROM DER, 468 FT LEFT OF CENTERLINE, UP TO 929 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2302082032-2502072032EST
Yes
0700-2100
OTHER ATTENDANCE TIMES CALL 715-839-4900.
EAU CLAIRE COUNTY
721 OXFORD AVE
EAU CLAIRE, WI 54701
Phone: 715-839-4900
CHARITY ZICH
3800 STARR AVE
EAU CLAIRE, WI 54703
Phone: 715-839-6241
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
EAU
--
WHEN ATCT CLSD HIRL RY 04/22 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RY 22; REIL RWY 4; HIRL RY 04/22; REIL RY 14; PAPI RYS 14 /32; MIRL RY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

8101 ft. x 150 ft.
CONC
Good
GRVD
HIGH
54 /R/B/W/T
100,000lbs
180,000lbs
320,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 51' 33"N 44° 52' 30"N
Longitude 91° 29' 34"W 91° 28' 14"W
Elevation 887' 913'
Threshold Crossing Height 44 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

5000 ft. x 100 ft.
ASPH CONC
Fair
NONE
MED
21 /R/B/W/T
40,000lbs
60,000lbs
--
--
  Runway 14 Runway 32
True Heading 139°319°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 52' 08"N 44° 51' 30"N
Longitude 91° 29' 41"W 91° 28' 56"W
Elevation 883' 888'
Threshold Crossing Height 43 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1ARPT CONDS UNMON 2200 - 0500.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5ALL GA ACFT PARK AT FBO.
CHIPPEWA VALLEY RGNL (ICAO: KEAU, IATA: EAU) is a public airport located in EAU CLAIRE, WI.
