No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDYR
DYERSBURG RGNL
PublicPUB

2 miles S of DYERSBURG, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 59' 53"N 89° 24' 24"W
338' MSL
1338' MSL
01W
JET A (FSII), 100LL
JACKSON (MKL)
ST LOUIS
MEMPHIS (ZME)
4/17/25-5/15/25
KDYR VFR
5:56 AM CDT
Clear
10sm
67°F
32°F
30.02"Hg
Calm
AO2 SLP168 T0194
KDYR 241056Z AUTO 00000KT 10SM CLR 19/ A3002 RMK AO2 SLP168 T0194
+ Add Your Business

KDYR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3PT

AWOS-3PT
731-287-0300
 135.625

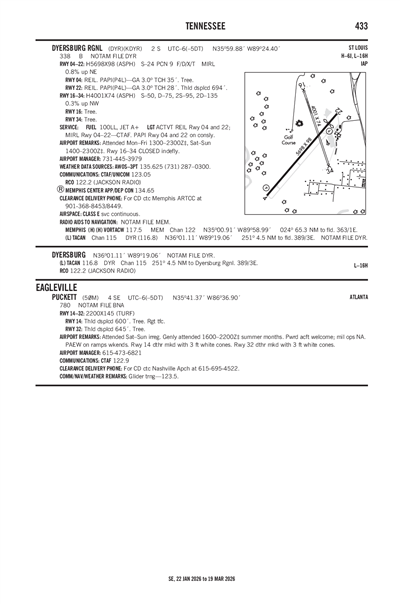

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKL (34nm)
Sun, 8/24 12:20 AM CDT
Sun, 8/24 1:00 AM CDT - Mon, 8/25 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Few 15,000'
6sm
VRB° 2kts
VFR
10:00 AM CDT - 1:00 PM CDT
Few 4,000'
6sm
020° 6kts
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 5,000'
6sm
340° 10kts
Gusts 18kts
VFR
8:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
350° 3kts
KMKL 240520Z 2406/2506 VRB02KT P6SM FEW150
   FM241500 02006KT P6SM FEW040
   FM241800 34010G18KT P6SM SCT050
   FM250100 35003KT P6SM SCT250
KDYR
Domestic
5/17/250030Z !DYR 05/006 DYR OBST TOWER LGT (ASN 2024-ASO-16447-OE) 360228N0891128W (10.8NM ENE DYR) 612FT (295FT AGL) U/S 2505170030-2506172300
4/11/251158Z !DYR 04/016 DYR RWY 04 RWY END ID LGT U/S 2504111158-2510102111EST
4/11/251146Z !DYR 04/015 DYR RWY 22 PAPI U/S 2504111146-2510102111EST
3/24/251223Z !DYR 03/011 DYR RWY 04 PAPI U/S 2503241223-2509242111EST
9/30/241303Z !DYR 09/017 DYR RWY 16/34 CLSD 2409301303-PERM
FDC
4/15/251405Z !FDC 5/6435 DYR IAP DYERSBURG RGNL, DYERSBURG, TN.
RNAV (GPS) RWY 22, AMDT 1C...
LNAV MDA 740 HAT 406, CAT C/D VIS 1 1/8.
DAKNE 2.3 NM TO RW 22 MINIMUM 1120.
2504151405-2511251405EST
4/11/252033Z !FDC 5/5517 DYR IAP DYERSBURG RGNL, DYERSBURG, TN.
RNAV (GPS) RWY 22, AMDT 1C...
LPV DA NA
LNAV/VNAV DA NA.
2504112033-2511212033EST
No
NOV-MAR 0800-1700
APR-OCT MON-FRI 0700-1900
APR-OCT SAT-SUN 0800-1700
CITY OF DYERSBURG
CITY HALL, PO BOX 1358
DYERSBURG, TN 38024
Phone: (731) 288-7600
DIAN DAWSON
315 AIRPORT ROAD
DYERSBURG, TN 38024
Phone: 731-445-3979
JACKSON FSS (MKL)
Toll Free: 1-800-WX-BRIEF
DYR
--
ACTVT REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5698 ft. x 98 ft.
ASPH
Good
NONE
MED
9 /F/D/X/T
24,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 40°221°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 59' 26"N 36° 00' 08"N
Longitude 89° 24' 50"W 89° 24' 05"W
Elevation 292' 335'
Threshold Crossing Height 35 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

4001 ft. x 74 ft.
ASPH
Poor
NONE


50,000lbs
75,000lbs
135,000lbs
--
  Runway 16 Runway 34
True Heading 162°342°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 36° 00' 20"N 35° 59' 42"N
Longitude 89° 24' 26"W 89° 24' 11"W
Elevation 338' 325'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
DYERSBURG RGNL (ICAO: KDYR, IATA: DYR) is a public airport located in DYERSBURG, TN.
