iFlightPlanner



...

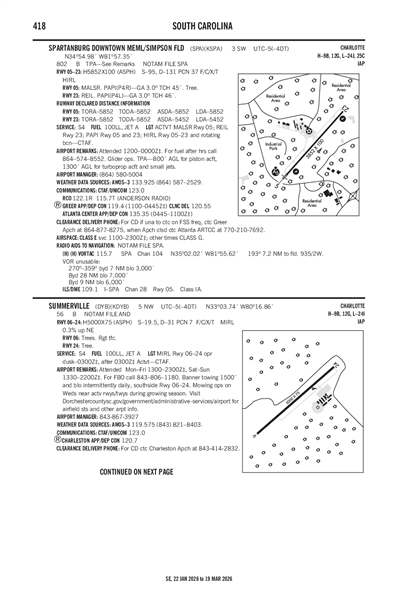

SUMMERVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDYB
ICAO KDYBLocal DYB
SUMMERVILLE
PublicPUB

5 miles NW of SUMMERVILLE, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 03' 44"N 80° 16' 51"W
Elevation
56' MSL
Pattern Alt
1056' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, 100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KDYB MVFR
12:55 AM EST
Mist
Scattered 6,500'
Scattered 4,500'
Few 3,900'
5sm
52°F
52°F
30.31"Hg
Calm
AO2
METAR KDYB 040555Z AUTO 00000KT 5SM BR FEW039 SCT045 SCT065 11/11 A3031 RMK AO2
+ Add Your Business

KDYB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.575
(843) 821-8403

Common

CTAF 123.0
MIRL RWY 06/24 OPER DUSK-2200; AFTER 2200 ACTVT - CTAF.
UNICOM 123.0

Approach

CHARLESTON APPROACH 120.7

Departure

CHARLESTON DEPARTURE 120.7

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCHS (16nm)
Wed, 3/4 12:25 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 4:00 AM EST
Broken 5,000'
Scattered 3,000'
6sm
Calm
LIFR
4:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
0.75sm
Calm
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Fog
Obscured
0.5sm
Calm
LIFR
10:00 AM EST - 12:00 PM EST
Mist
Overcast 400'
4sm
VRB° 3kts
VFR
12:00 PM EST - 2:00 PM EST
Scattered 3,000'
6sm
160° 5kts
VFR
2:00 PM EST - 1:00 AM EST
Scattered 3,500'
6sm
180° 9kts
TAF KCHS 040525Z 0406/0506 00000KT P6SM SCT030 BKN050
   FM040900 00000KT 3/4SM BR OVC003
   TEMPO 0410/0414 1/2SM FG VV002
   FM041500 VRB03KT 4SM BR OVC004
   FM041700 16005KT P6SM SCT030
   FM041900 18009KT P6SM SCT035
KDYB
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1359Z
4/2/26
2359Z
Runway!AND 03/016 DYB RWY 24 PAPI U/S 2603021359-2604022359
3/1/26
1215Z
5/30/26
0500Z
!AND 03/004 DYB OBST TOWER LGT (ASR 1002808) 330126.80N0801036.90W (5.7NM ESE DYB) 414.0FT (352.0FT AGL) U/S 2603011215-2605300500
3/1/26
0725Z
6/29/26
0725Z
!AND 03/003 DYB OBST TOWER LGT (ASR 1049566) 325217.60N0801622.40W (11.5NM S DYB) 414.0FT (380.9FT AGL) U/S 2603010725-2606290725
2/20/26
1524Z
5/20/26
2359Z
!AND 02/277 DYB OBST TOWER LGT (ASR 1002319) 325825.20N0801345.10W (5.9NM SSE DYB) 551.2FT (488.8FT AGL) U/S 2602201524-2605202359
1/18/26
1113Z
!AND 01/151 DYB NAV NDB U/S 2601181113-2701152025EST
7/14/25
1344Z
7/14/26
2359Z
!AND 07/230 DYB OBST TOWER LGT (ASR 1059172) 325535.00N0802512.00W (10.9NM SW DYB) 317.6FT (287.7FT AGL) U/S 2507141344-2607142359
FDC
10/31/24
1540Z
!FDC 4/7089 DYB IAP SUMMERVILLE, SUMMERVILLE, SC.
RNAV (GPS) RWY 6, AMDT 1A...
LNAV MDA 560/HAT 507 ALL CATS.
2410311540-2611121540EST
No
MON - FRI 0800 - 1800
SAT - SUN 0830 - 1700
DORCHESTER COUNTY
BOX 416
ST. GEORGE, SC 29477
Phone: 843-806-1180
JEFFREY CRAVEN
898 GREYBACK RD P.O. BOX 3
SUMMERVILLE, SC 29483
Phone: 843-867-3927
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
MIRL RWY 06/24 OPER DUSK-2200; AFTER 2200 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
Major
Major
None
None
Pilot Instruction

Runway 06/24

5000 ft. x 75 ft.
ASPH
Good
NONE
MED
7/F/C/X/T
20,000lbs
31,000lbs
--
--
  Runway 06 Runway 24
True Heading 49°229°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 03' 28"N 33° 04' 00"N
Longitude 80° 17' 14"W 80° 16' 29"W
Elevation 38' 54'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR MAIN FBO CALL (843) 806-1180.
A110-3BANNER TOWING 1500/BLO INTMT DAILY, SOUTH SIDE RWY 06/24.
A110-4FOR CD CTC CHARLESTON APCH AT 843-414-2832.
A110-5MOWING OPS ON WEDS NEAR ACTV RWYS/TWYS DURG GROWING SEASON.
A110-6FOR MAINT AND RPR FBO CALL 843-851-0970.
A110-7VISIT DORCHESTERCOUNTYSC.GOV/GOVERNMENT/ADMINISTRATIVE-SERVICES/AIRPORT FOR AIRFIELD STS AND OTHER ARPT INFO.
A81-APTMIRL RWY 06/24 OPER DUSK-2200; AFTER 2200 ACTVT - CTAF.
E111PRVDD VFR ONLY.
SUMMERVILLE (ICAO: KDYB, IATA: DYB) is a public airport located in SUMMERVILLE, SC, US.
