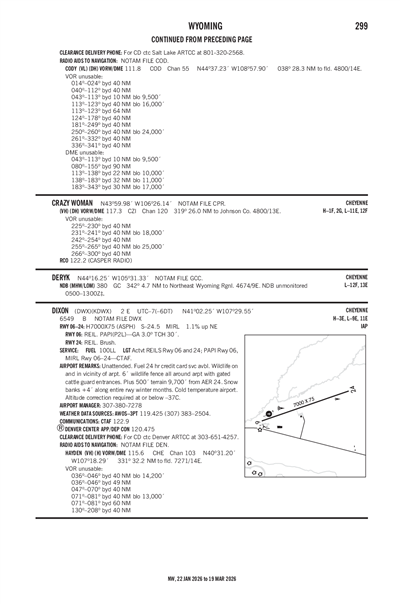

DIXON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDWX
ICAO KDWXLocal DWX
DIXON
PublicPUB

2 miles E of DIXON, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 02' 15"N 107° 29' 33"W
Elevation
6549' MSL
Pattern Alt
7549' MSL
Mag Variation
9°E
Declination
9°E
Fuel
100LL
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KDWX VFR
6:55 PM MST
Clear
10sm
35°F
33°F
30.22"Hg
010° 7kts
AO2 T00170003
METAR KDWX 040155Z AUTO 01007KT 10SM CLR 02/00 A3022 RMK AO2 T00170003
+ Add Your Business

KDWX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.425
(307) 383-2504

Common

CTAF 122.9
ACTV REILS RWY 6 & 24; PAPI RWY 6, MIRL RWY 06/24 - CTAF.

Center

DENVER CENTER 120.475
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 120.475/235.975 (HAYDEN RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KHDN (35nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 6:30 PM MST
Showers in vicinity
Scattered 9,000'
Scattered 4,000'
6sm
270° 8kts
VFR
6:30 PM MST - 11:00 AM MST
Few 12,000'
Few 4,500'
6sm
VRB° 3kts
VFR
11:00 AM MST - 12:00 PM MST
Sky Clear
6sm
150° 5kts
VFR
12:00 PM MST - 5:00 PM MST
Sky Clear
6sm
230° 6kts
TAF KHDN 032322Z 0400/0424 27008KT P6SM VCSH SCT040 SCT090
   FM040130 VRB03KT P6SM FEW045 FEW120
   FM041800 15005KT P6SM SKC
   FM041900 23006KT P6SM SKC
KDWX
No NOTAM Available
No
UNATNDD
CARBON COUNTY
PO BOX 6
RAWLINS, WY 82301
Phone: 307-328-2668
KODY STOCKS
PO BOX 6
RAWLINS, WY 82301
Phone: 307-380-7278
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
DWX
--
ACTV REILS RWY 6 & 24; PAPI RWY 6, MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 06/24

7000 ft. x 75 ft.
ASPH
Good
NONE
MED

24,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 71°251°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 02' 04"N 41° 02' 26"N
Longitude 107° 30' 16"W 107° 28' 50"W
Elevation 6,472' 6,549'
Threshold Crossing Height 30 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE ON & INVOF ARPT. 6 FT WILDLIFE FENCE ALL AROUND ARPT WITH GATED, CATTLE GUARD ENTRANCES.
A110-3SNOW BANKS +4 FT ALONG ENTIRE RY WINTER MONTHS.
A110-4+500 FT TERRAIN 9700 FT FM AER 24.
A110-6FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-7COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -37C.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A75-HPILOT SUPPLIED ROPES REQUIRED FOR TIE DOWNS
A81-APTACTV REILS RWY 6 & 24; PAPI RWY 6, MIRL RWY 06/24 - CTAF.
E111PRVDD AN OBSTN-FREE PRIMARY SFC OF 125' EITHER SIDE OF CNTRLN IS PRVDD; IF OBSTNS WITHIN APCH AREA CANNOT BE LOWERED OR REMOVED; THE THRS ARE LCTD TO PRVD A MIN 20:1 CLEARANCE OVER ALL OBSTNS.
DIXON (ICAO: KDWX, IATA: DWX) is a public airport located in DIXON, WY, US.
