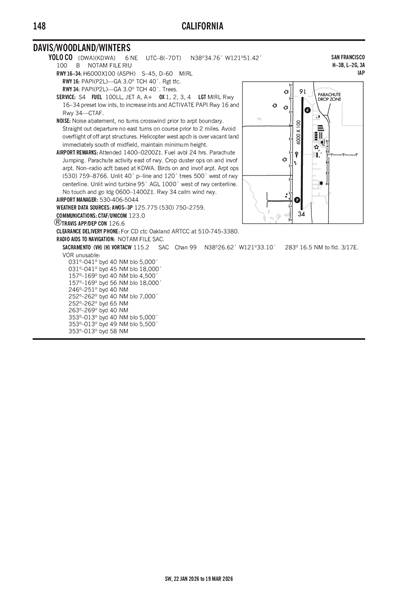

YOLO COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDWA
ICAO KDWALocal DWA
YOLO COUNTY
PublicPUB

6 miles NE of DAVIS/WOODLAND/WINTERS, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 34' 46"N 121° 51' 25"W
Elevation
100' MSL
Pattern Alt
1100' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KDWA VFR
5:55 PM PST
Clear
10sm
64°F
54°F
30.05"Hg
160° 5kts
AO2
METAR KDWA 040155Z AUTO 16005KT 10SM CLR 18/12 A3005 RMK AO2
+ Add Your Business

KDWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 125.775
(530) 750-2759

Common

CTAF 123.0
MIRL RY 16/34 PRESET LOW INTST; TO INCR INTST AND ACTVT PAPI RYS 16 & 34 - CTAF.
UNICOM 123.0

Approach

TRAVIS APPROACH 126.6

Departure

TRAVIS DEPARTURE 126.6

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSMF (14nm)
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 6:00 AM PST
Few 25,000'
6sm
VRB° 5kts
MVFR
Temporary 12:00 AM PST - 4:00 AM PST
Mist
Overcast 25,000'
5sm
Calm
VFR
6:00 AM PST - 12:00 PM PST
Broken 25,000'
6sm
160° 8kts
VFR
12:00 PM PST - 4:00 PM PST
Scattered 25,000'
6sm
310° 11kts
Gusts 20kts
TAF KSMF 032320Z 0400/0424 VRB05KT P6SM FEW250
   TEMPO 0408/0412 5SM BR OVC250
   FM041400 16008KT P6SM BKN250
   FM042000 31011G20KT P6SM SCT250
KDWA
EffectiveExpiresCategoryNOTAM
Domestic
11/1/25
1400Z
10/31/26
0500Z
!RIU 10/222 DWA AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF DWA SFC-17999FT DLY 1400-0500 2511011400-2610310500
FDC
8/18/25
1455Z
!FDC 5/9386 DWA IAP YOLO COUNTY, DAVIS/WOODLAND/WINTERS, CA.
RNAV (GPS) RWY 34, AMDT 2C...
MISSED APPROACH: CHANGE MISSED APPROACH INSTRUCTIONS TO READ: CLIMB TO 3000 DIRECT GHEER AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3000.
2508181455-2708181455EST
No
0600-1800
YOLO COUNTY
120 WEST MAIN STREET, SUITE G
WOODLAND, CA 95695
Phone: 530-406-5005
RYAN PISTOCHINI
120 WEST MAIN, SUITE G RM 202
WOODLAND, CA 95695
Phone: 530-406-5044
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
MIRL RY 16/34 PRESET LOW INTST; TO INCR INTST AND ACTVT PAPI RYS 16 & 34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Crop Dusting
Avionics
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Sales

Runway 16/34

6000 ft. x 100 ft.
ASPH
Good
NONE
MED

45,000lbs
60,000lbs
--
--
  Runway 16 Runway 34
True Heading 180°0°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 35' 15"N 38° 34' 16"N
Longitude 121° 51' 25"W 121° 51' 25"W
Elevation 98' 100'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10NON-RADIO AIRCRAFT BASED AT KDWA.
A110-1195 FT AGL UNLIT WIND TURBINE 1000 FT WEST OF RY CNTRLN.
A110-12APT OPS: (530) 759-8766
A110-13FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A110-2NO TGL 2200L TO 0600L.
A110-3RY 34 CALM WIND RY.
A110-4NOISE ABATEMENT: NO TURNS TO CROSSWIND PRIOR TO ARPT BOUNDARY. STRAIGHT OUT DEP NO EAST TURNS ON COURSE PRIOR TO 2 MIS. AVOID OVERFLIGHT OF OFF-ARPT STRUCTURES.
A110-6UNLIT 40 FT POWER LINE & 120 FT TREES 500 FT WEST OF RY CNTRLN.
A110-7BIRDS ON AND INVOF ARPT.
A110-8PARACHUTE ACTIVITY EAST OF RY.
A110-9CROP DUSTER OPNS ON AND INVOF ARPT.
A3DSTC TO WINTERS.
A70-100LLFUEL AVBL 24 HRS.
A81-APTMIRL RY 16/34 PRESET LOW INTST; TO INCR INTST AND ACTVT PAPI RYS 16 & 34 - CTAF.
YOLO COUNTY (ICAO: KDWA, IATA: DWA) is a public airport located in DAVIS/WOODLAND/WINTERS, CA, US.
