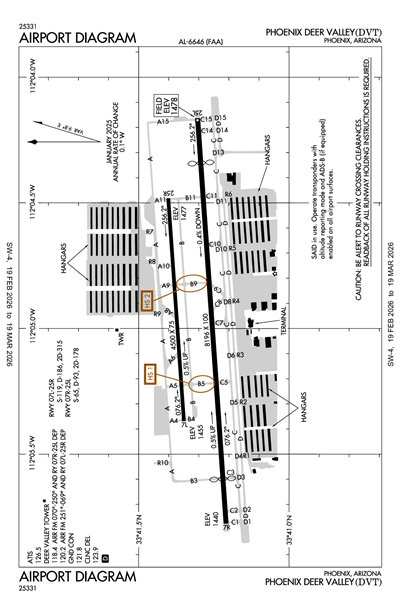

PHOENIX DEER VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDVT
ICAO KDVTIATA DVTLocal DVT
PHOENIX DEER VALLEY
PublicPUB

15 miles N of PHOENIX, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 41' 18"N 112° 04' 57"W
Elevation
1478' MSL
Pattern Alt
2478' MSL
Mag Variation
10°E
Declination
12°E
Fuel
JET A (FSII), 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KDVT IFR
4:53 AM MST
Haze
Clear
2.5sm
54°F
28°F
29.94"Hg
Calm
AO2 TWR VIS 10 SLP123 T01221022 10178 20122 55001
METAR KDVT 041153Z 00000KT 2 1/2SM HZ CLR 12/M02 A2994 RMK AO2 TWR VIS 10 SLP123 T01221022 10178 20122 55001
+ Add Your Business

KDVT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.5
ASOS 126.5
(623) 587-7764

Common

CTAF 118.4
UNICOM 122.95

Clearance

Clearance Delivery 123.9

Ground

DEER VALLEY GROUND 121.8
0600-0000

Tower

DEER VALLEY TOWER 118.4
0600-0000 - ARR FM 070-250 AND RWY 07R/25L DEP
DEER VALLEY TOWER 120.2
0600-0000 - ARR FM 251-069 AND RWY 07L/25R DEP, 0600-0000 FT

Arrival

BLYTHE STAR 124.1
DSERT STAR 120.7
SUNSS STAR 124.1

Approach

PHOENIX APPROACH 120.7

Departure

PHOENIX DEPARTURE 120.7

Terminal Area Forecast

KDVT
Wed, 3/4 4:20 AM MST
Wed, 3/4 5:00 AM MST - Thu, 3/5 5:00 AM MST
VFR
5:00 AM MST - 1:00 PM MST
Scattered 25,000'
6sm
060° 4kts
VFR
1:00 PM MST - 8:00 PM MST
Broken 25,000'
Scattered 20,000'
6sm
220° 6kts
VFR
8:00 PM MST - 5:00 AM MST
Few 25,000'
6sm
VRB° 4kts
TAF KDVT 041120Z 0412/0512 06004KT P6SM SCT250
   FM042000 22006KT P6SM SCT200 BKN250
   FM050300 VRB04KT P6SM FEW250
KDVT
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/016 DVT RWY 25L PAPI U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/015 DVT RWY 07R PAPI U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/014 DVT RWY 25R PAPI U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/013 DVT RWY 07L PAPI U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/012 DVT RWY 25R RWY END ID LGT U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/011 DVT RWY 07L RWY END ID LGT U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/010 DVT RWY 25L RWY END ID LGT U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
Runway!DVT 03/009 DVT RWY 07R RWY END ID LGT U/S 2603041400-2603041800
3/4/26
1400Z
3/4/26
1800Z
!DVT 03/008 DVT TWY ALL ELEVATED RWY GUARD LGT U/S 2603041400-2603041800
3/4/26
1300Z
5/22/26
2359Z
!DVT 02/043 DVT OBST CRANE (ASN 2025-AWP-13292-OE) 334208N1120401W (1.1NM NE DVT) 1735FT (220FT AGL) FLAGGED AND LGTD 2603041300-2605222359
3/3/26
0400Z
3/6/26
1300Z
!DVT 03/007 DVT TWY D BTN TWY D13 AND TWY D15 CLSD DLY 0400-1300 2603030400-2603061300
3/3/26
0400Z
3/6/26
1300Z
!DVT 03/006 DVT TWY C BTN TWY D13 AND TWY C15 CLSD DLY 0400-1300 2603030400-2603061300
3/2/26
0400Z
3/6/26
1300Z
!DVT 03/005 DVT TWY A BTN TWY A11 AND TWY A15 CLSD DLY 0400-1300 2603020400-2603061300
3/2/26
0400Z
3/6/26
1300Z
!DVT 03/002 DVT TWY C11 CLSD DLY 0400-1300 2603020400-2603061300
3/2/26
0400Z
3/6/26
1300Z
!DVT 03/001 DVT TWY C10 CLSD DLY 0400-1300 2603020400-2603061300
3/2/26
0400Z
3/6/26
1300Z
Runway!DVT 02/044 DVT RWY 07R/25L CLSD EXC XNG DLY 0400-1300 2603020400-2603061300
2/15/26
1305Z
9/30/26
1300Z
!DVT 02/028 DVT TWY B BTN TWY B9 AND TWY B11 CLSD 2602151305-2609301300
10/30/25
0400Z
9/30/26
1300Z
!DVT 10/038 DVT TWY B9 RWY GUARD LGT AT RWY 07L/25R U/S 2510300400-2609301300
10/28/25
0400Z
!DVT 10/028 DVT TWY B11 CLSD 2510280400-PERM
11/12/24
1100Z
11/12/26
2300Z
!DVT 11/007 DVT OBST CRANE (ASN UNKNOWN) 334124N1120141W (2.23NM E APCH END RWY 25L)
UNKNOWN (160FT AGL) FLAGGED AND LGTD 2411121100-2611122300
Yes
ALL
ADMIN - 0600-2100.
CITY OF PHOENIX
3400 SKY HARBOR BLVD
PHOENIX, AZ 85034
Phone: 623-869-0975
ED FARON
702 W DEER VALLEY DR
PHOENIX, AZ 85027
Phone: 623-869-0975
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
DVT
--
WHEN ATCT CLSD, REIL RWY 07R, 07L, 25R & 25L; PAPI RWY 07R, 07L, 25R & 25L; MIRL RWY 07R/25L & 07L/25R ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07L/25R

4500 ft. x 75 ft.
ASPH
Good
NONE
MED

119,000lbs
186,000lbs
315,000lbs
--
  Runway 07L Runway 25R
True Heading 86°266°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 41' 21"N 33° 41' 24"N
Longitude 112° 05' 22"W 112° 04' 29"W
Elevation 1,455' 1,477'
Threshold Crossing Height 53 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 07R/25L

8196 ft. x 100 ft.
ASPH
Good
NONE
MED

65,000lbs
93,000lbs
178,000lbs
--
  Runway 07R Runway 25L
True Heading 86°266°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 41' 13"N 33° 41' 18"N
Longitude 112° 05' 47"W 112° 04' 10"W
Elevation 1,440' 1,478'
Threshold Crossing Height 46 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1CTN: LGTD HILLS NE, E, SE & W; HOT AIR BLN OPS N, NE & NW; PILOT TRNG WI 20 NM; AEROBATIC PRACTICE AREA 8.5 MI NW; SFC-6000 MSL.
A110-14SPL ATC RULE (SATR) IN EFCT W OF ARPT; CK SECTIONAL/TAC.
A110-17TWY D1 & D13 RUNUP PADS CLSD TO WINGSPAN MORE THAN 49 FT.
A110-18FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-4CHARTER, TRAVEL CLUB & REVENUE ACFT FEE.
A110-8BIRDS & WILDLIFE ON & INVOF ARPT.
A16EMERG - 623-869-0977.
A17-M1ADMIN - 0600-2100.
A30-07L/25RTRNG RWY.
A43-25LUNUSBL BYD 5-DEGS LEFT OF CTRLN AND 6-DEGS RIGHT OF CTRLN.
A57-07RAPCH SLOPE 50:1 AT DTHR.
A57-25LAPCH SLOPE 50:1 AT DTHR.
A70-100LLCREDIT CARD SELF SVC AVBL H24.
A75-HCALL AHEAD FOR AVBLTY - 623-581-1444.
A81-APTWHEN ATCT CLSD, REIL RWY 07R, 07L, 25R & 25L; PAPI RWY 07R, 07L, 25R & 25L; MIRL RWY 07R/25L & 07L/25R ON CONSLY.
E147TPA-2500 (1022) PISTON ENGINE AND 3000 (1522) TURBINE ENGINE.
PHOENIX DEER VALLEY (ICAO: KDVT, IATA: DVT) is a public airport located in PHOENIX, AZ, US.
