KDVN
DAVENPORT MUNI
PublicPUB

5 miles N of DAVENPORT, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 36' 37"N 90° 35' 18"W
750' MSL
1750' MSL
01E
JET A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KDVN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
563-388-2154
 120.175

FAA A/FD Pages

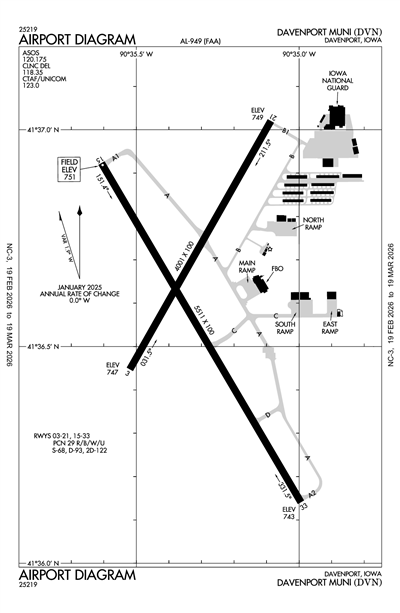

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KDVN
Domestic
1/15/250600Z !DVN 01/005 DVN COM REMOTE TRANS/REC 118.35 U/S 2501150600-2501151200
1/6/251603Z !DVN 01/002 DVN AD AP ABN U/S 2501061603-2502282359
12/20/241726Z !DVN 12/019 DVN OBST TOWER LGT (ASR 1036646) 414311.00N0903413.00W (6.6NM NE DVN) 1167.0FT (399.9FT AGL) U/S 2412201726-2502031726
10/1/241437Z !DVN 10/001 DVN RWY 15 RTHL U/S 2410011437-2504012000EST
FDC
1/15/251400Z !FDC 5/3518 DVN IAP DAVENPORT MUNI, DAVENPORT, IA.
ILS OR LOC RWY 15, AMDT 1D...
DME OR RADAR REQUIRED FOR MISSED APPROACH EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
YIKUT FIX MINIMUMS DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CVA VORTAC OUT OF SERVICE. 2501151400-2501220112EST
1/7/250551Z !FDC 5/0933 DVN ODP DAVENPORT MUNI, DAVENPORT, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 33, TEMPORARY CRANE 1332FT FROM DER, 381FT LEFT OF CENTERLINE, 60FT AGL/ 811FT MSL (2020-ACE-4860-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2501070551-2508190551EST
1/7/250551Z !FDC 5/0931 DVN IAP DAVENPORT MUNI, DAVENPORT, IA.
RNAV (GPS) RWY 15, AMDT 2D...
LPV DA 1024/HAT 273 ALL CATS. FOR INOPERATIVE ALS, INCREASE LPV VISIBILITY TO 7/8 SM, LNAV/VNAV VISIBILITY TO 1 1/8 SM, LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 811FT MSL 1385FT NORTHWEST OF RWY 15 (2020-ACE-4860-NRA).
2501070551-2508190551EST
No
0630-DUSK
FOR SVC AFT HRS CALL (563) 391-5650.
CITY OF DAVENPORT
9230 HARRISON STREET
DAVENPORT, IA 52806
Phone: 563-391-5650
THOMAS VESALGA
PUBLIC WORKS 1200 EAST 46TH STREET
DAVENPORT, IA 52807
Phone: 563-326-7783
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
DVN
--
DUSK-DAWN. ACTVT MIRL RY 03/21 AND HIRL RY 15/33; VASI RYS 03/21 AND 15/33; MALSR RY 15 & REIL RWYS 3/21 AND 33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

4001 ft. x 100 ft.
CONC
Excellent
GRVD
MED
29 /R/B/W/U
68,000lbs
93,000lbs
122,000lbs
--
  Runway 03 Runway 21
True Heading 30°210°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 36' 27"N 41° 37' 01"N
Longitude 90° 35' 31"W 90° 35' 05"W
Elevation 747' 749'
Threshold Crossing Height 43 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

5511 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH
29 /R/B/W/U
68,000lbs
93,000lbs
122,000lbs
--
  Runway 15 Runway 33
True Heading 150°330°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 36' 55"N 41° 36' 08"N
Longitude 90° 35' 36"W 90° 34' 60"W
Elevation 750' 743'
Threshold Crossing Height 56 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1HELICOPTER OPERATIONS ON CTAF OPERG PARALLEL TO RYS FM GRASS AREAS.
A110-10JET A AND 100LL FULL SVC AVBL ON MAIN RAMP IN FRONT OF TRML BUILDING.
A110-11100LL SELF SVC FUEL AVBL ON E END OF TWY C.
A110-12FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-2RWY 15 DESIGNATED CALM WIND RY.
A110-3TWO WAY RADIO COMMUNICATIONS REQUIRED FOR ALL ACFT CONDUCTING MULTIPLE OPNS.
A110-4EXTSV HVY MIL HEL (CHINOOK) TRNG ON & INVOF OF ARPT; PSBL EXTREME TRUB FM ROTORS.
A110-7ARNG: DSN 431-5510.
A110-9PAEW ANG RAMP LIMITED PARKING 48 HR PPR.
DAVENPORT MUNI (ICAO: KDVN, IATA: DVN) is a public airport located in DAVENPORT, IA.
