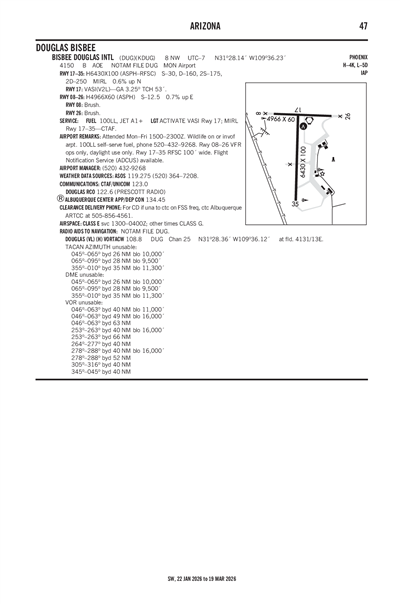

BISBEE DOUGLAS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDUG
ICAO KDUGIATA DUGLocal DUG
BISBEE DOUGLAS INTL
PublicPUB

8 miles NW of DOUGLAS BISBEE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 28' 08"N 109° 36' 14"W
Elevation
4150' MSL
Pattern Alt
5150' MSL
Mag Variation
9°E
Declination
12°E
Fuel
JET A-1+, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KDUG VFR
8:56 PM MST
Clear
10sm
58°F
20°F
30.06"Hg
360° 8kts
AO2 SLP131 T01441067 TSNO
METAR KDUG 040356Z AUTO 36008KT 10SM CLR 14/M07 A3006 RMK AO2 SLP131 T01441067 TSNO
+ Add Your Business

KDUG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.275
(520) 364-7208

Common

CTAF 123.0
ACTVT VASI RWY 17; MIRL RWY 17/35 - CTAF.
UNICOM 123.0

Center

ALBUQUERQUE CENTER 133.0
HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON 134.45/327.15 (SILVER CITY RCAG & 133.0/281.5 TUCSON RCAG).
ALBUQUERQUE CENTER 134.45
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON 134.45/327.15 (SILVER CITY RCAG & 133.0/281.5 TUCSON RCAG).

Flight Service

Flight Service 122.6
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.6 (DOUGLAS RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDUG
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Sky Clear
6sm
230° 15kts
Gusts 24kts
VFR
9:00 PM MST - 1:00 AM MST
Sky Clear
6sm
350° 7kts
VFR
1:00 AM MST - 1:00 PM MST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM MST - 5:00 PM MST
Broken 25,000'
6sm
240° 12kts
Gusts 20kts
TAF KDUG 032322Z 0400/0424 23015G24KT P6SM SKC
   FM040400 35007KT P6SM SKC
   FM040800 VRB03KT P6SM SKC
   FM042000 24012G20KT P6SM BKN250
KDUG
No NOTAM Available
No
MON-FRI 0700-1500
COCHISE COUNTY
1415 WEST MELODY LANE BLDG F
BISBEE, AZ 85603
Phone: (520) 432-9268
DANIEL COXWORTH
1415 W. MELODY LANE , BUILDING F BUILDING E
BISBEE, AZ 85603
Phone: (520) 432-9268
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
DUG
--
ACTVT VASI RWY 17; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
None
None
None
None
None

Runway 08/26

4966 ft. x 60 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 31° 28' 27"N 31° 28' 26"N
Longitude 109° 36' 39"W 109° 35' 41"W
Elevation 4,116' 4,150'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

6430 ft. x 100 ft.
ASPH
Good
RFSC
MED

30,000lbs
160,000lbs
250,000lbs
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 28' 26"N 31° 27' 22"N
Longitude 109° 36' 16"W 109° 36' 16"W
Elevation 4,124' 4,089'
Threshold Crossing Height 53 ft. AGL --
Visual Glide Path Angle 3.25° --
Visual Slope Indicator V2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A16EMERGENCY NUMBER 520-432-9268.
A30-08/26RY 08/26 VFR OPNS ONLY; DAYLIGHT USE ONLY.
A34-17/35RFSC 100 FT WIDE.
A57-08CONTROLLING OBSTRUCTION EXCEEDS A 45 DEGREE SLOPE
A58-08RWY 08, 1-8 FT SCATTERED BRUSH, 40-200 FT FM THR, 45-125 FT BOTH SIDES OF CNTRLN.
A58-17AIRPLANE TAIL HEIGHT OF 20 FT ON RWY 08/26, AT 55 FT TO CNTRLN APCH SLOPE 04:1 AT THR. 2-3 FT BRUSH & WEEDS 125 FT FM THR, 125-250 FT RIGHT OF CNTRLN.
A58-26RWY 26, 4-6 FT BRUSH 20-200 FT FM THR, 75 FT BOTH BOTH SIDES OF CNTRLN.
A58-35RWY 35, 1-2 FT GRASS, 0-200 FT FM THR, 100-250 FT LEFT OF CNTRLN.
A70-100LLSELF-SERVE FUEL, PHONE 520-432-9268.
A81-APTACTVT VASI RWY 17; MIRL RWY 17/35 - CTAF.
BISBEE DOUGLAS INTL (ICAO: KDUG, IATA: DUG) is a public airport located in DOUGLAS BISBEE, AZ, US.
