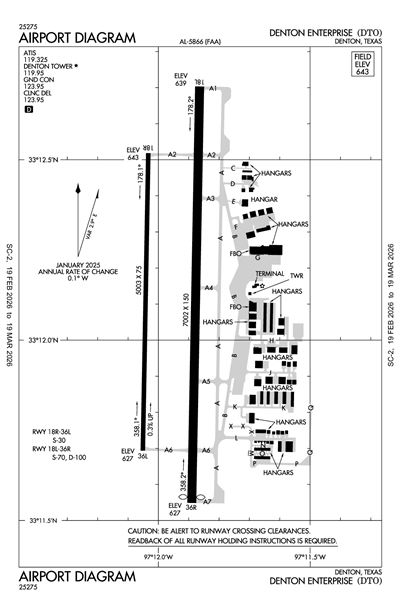

DENTON ENTERPRISE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDTO
ICAO KDTOLocal DTO
DENTON ENTERPRISE
PublicPUB

3 miles W of DENTON, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 12' 07"N 97° 11' 57"W
Elevation
643' MSL
Pattern Alt
1443' MSL
Mag Variation
3°E
Declination
4°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KDTO MVFR
4:53 AM CST
Light Rain
Overcast 2,300'
10sm
72°F
64°F
29.97"Hg
170° 15kts
AO2 SLP141 P0000 T02220178
METAR KDTO 041053Z AUTO 17015KT 10SM -RA OVC023 22/18 A2997 RMK AO2 SLP141 P0000 T02220178
+ Add Your Business

KDTO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.325
ASOS 119.325
(940) 383-8457

Common

CTAF 119.95
DUSK-DAWN WHEN ATCT CLSD, MIRL RWY 18L/36R & 18R/36L PRESET TO LOW INTST; TO INCR INTST & ACTVT MALSR RWY 18L - CTAF.

Clearance

Clearance Delivery 123.95
Clearance Delivery 123.95

Ground

DENTON GROUND 123.95
0600-2200

Tower

DENTON TOWER 119.95
0600-2200

Arrival

DODJE STAR 125.2
DODJE STAR 125.9
GREGS STAR 118.1
HERBZ STAR 118.1
LIKES STAR 125.8
SOUTH
LIKES STAR 135.975
NORTH
REEKO STAR 125.2
SASIE STAR 124.3
TRUUK RNAV STAR 124.3

Approach

LONE STAR APPROACH 118.1

Departure

BOTCH DP 118.1
DALLAS AREA DP 118.1
GARLAND DP 118.1
JOE POOL DP 118.1
LONE STAR DEPARTURE 118.1
NANDR RNAV DP 118.1

Terminal Area Forecast

KAFW (14nm)
Wed, 3/4 2:52 AM CST
Wed, 3/4 3:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
3:00 AM CST - 1:00 PM CST
Broken 2,000'
6sm
180° 15kts
VFR
1:00 PM CST - 5:00 PM CST
Showers in vicinity
Broken 25,000'
Scattered 2,500'
6sm
180° 14kts
VFR
5:00 PM CST - 10:00 PM CST
Thunderstorm in vicinity
Broken 5,000'
Scattered 2,500'
6sm
190° 13kts
VFR
10:00 PM CST - 12:00 AM CST
Broken 5,000'
6sm
200° 11kts
TAF KAFW 040852Z 0409/0506 18015KT P6SM BKN020
   FM041900 18014KT P6SM VCSH SCT025 BKN250
   FM042300 19013KT P6SM VCTS SCT025 BKN050CB
   FM050400 20011KT P6SM BKN050
KDTO
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1412Z
3/27/26
2300Z
!DTO 02/021 DTO TWY P WIP CONST ADJ NORTH SIDE 2602261412-2603272300
2/26/26
1412Z
3/27/26
2300Z
!DTO 02/020 DTO TWY P CLSD TO ACFT WINGSPAN MORE THAN 75FT 2602261412-2603272300
2/11/26
2223Z
!DTO 02/011 DTO SVC AUTOMATED WX BCST SYSTEM CHANGED TO 940-354-2971 2602112223-PERM
12/15/25
1446Z
!DTO 12/008 DTO OBST CRANE (ASN UNKNOWN) 331236N0971227W (0.77NM NW DTO)
UNKNOWN (110FT AGL) FLAGGED 2512151446-2603312359EST
12/15/25
1446Z
!DTO 12/007 DTO OBST CRANE (ASN UNKNOWN) 331231N0971229W (0.73NM WNW DTO)
UNKNOWN (100FT AGL) FLAGGED 2512151446-2603312359EST
12/15/25
1445Z
!DTO 12/006 DTO OBST CRANE (ASN UNKNOWN) 331236N0971227W (0.77NM NW DTO)
UNKNOWN (110FT AGL) FLAGGED 2512151445-2603312359EST
12/15/25
1445Z
!DTO 12/005 DTO OBST CRANE (ASN UNKNOWN) 331240N0971231W (0.85NM NW DTO)
UNKNOWN (100FT AGL) NOT LGTD 2512151445-2603312359EST
12/15/25
1445Z
!DTO 12/004 DTO OBST CRANE (ASN UNKNOWN) 331235N0971222W (0.71NM NW DTO)
UNKNOWN (110FT AGL) FLAGGED 2512151445-2603312359EST
12/15/25
1444Z
!DTO 12/003 DTO OBST CRANE (ASN UNKNOWN) 331300N0971242W (1.2NM NW DTO)
UNKNOWN (110FT AGL) FLAGGED AND LGTD 2512151444-2603312359EST
12/15/25
1444Z
!DTO 12/002 DTO OBST CRANE (ASN UNKNOWN) 331300N0971229W (1.1NM NW DTO)
UNKNOWN (100FT AGL) NOT LGTD 2512151444-2603312359EST
12/10/25
2135Z
Runway!DTO 12/001 DTO RWY 36R PAPI U/S 2512102135-2603312359EST
11/1/25
1247Z
3/10/26
0032Z
!DTO 11/001 DTO AIRSPACE SEE FUZ 11/006 UAS DLY SR-SS
2511011247-2603100032
FDC
3/4/26
0221Z
4/1/26
0321Z
!FDC 6/3246 DTO SID DENTON ENTERPRISE, DENTON, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION,LUBBOCK TRANSITION,TEXICO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LBB VOR OUT OF SERVICE. 2603040221-2604010321EST
1/12/26
1140Z
!FDC 6/2232 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18L, ORIG-A...
LNAV/VNAV DA 1136/HAT 494 ALL CATS. VIS 1 ALL CATS.
LNAV MDA 1240/HAT 598 ALL CATS. VIS CATS C/D 1 1/4.
SIDESTEP 18R MDA 1240/HAT 597 ALL CATS. VIS CAT C 1 3/4.
CIRCLING CAT A/B MDA 1280/HAA 637.
VDP NA.
FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM, AND LNAV CAT C/D TO 1 3/4 SM.
TEMPORARY CRANES, 925 MSL, BEGINNING 3179FT WEST OF RWY 18L (2025-ASW-4271 AND 4345-OE), TEMPORARY CRANE, 850 MSL, 3418FT WEST OF RWY 18L (2025-ASW-1584-OE).
2601121140-2608241140EST
1/12/26
1140Z
!FDC 6/2230 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18R, ORIG...
LNAV/VNAV DA 1136/HAT 493 ALL CATS. VIS 1 3/4 ALL CATS.
LNAV MDA 1240/HAT 597 ALL CATS. VIS CATS C/D 1 3/4.
SIDESTEP 18L MDA 1240/HAT 598 ALL CATS. VIS CAT A/B 1 3/4.
CIRCLING CAT A/B MDA 1280/HAA 637.
VDP NA.
TEMPORARY CRANES, 925 MSL, BEGINNING 3067FT WEST OF RWY 18R (2025-ASW-4271 AND 4345-OE), TEMPORARY CRANE, 850 MSL, 3135FT NW OF RWY 18R (2025-ASW-1584-OE).
2601121140-2608241140EST
1/12/26
1140Z
!FDC 6/2228 DTO IAP DENTON ENTERPRISE, DENTON, TX.
ILS OR LOC RWY 18L, ORIG...
RNAV (GPS) RWY 36L, ORIG-B...
RNAV (GPS) RWY 36R, ORIG-A...
CIRCLING CAT A/B MDA 1280/HAA 637.
TEMPORARY CRANES, 925 MSL, BEGINNING 5254FT NW OF KDTO AIRPORT (2025-ASW-4271 AND 4345-OE), TEMPORARY CRANE, 850 MSL, 5254FT NW OF KDTO AIRPORT (2025-ASW-1584-OE).
2601121140-2608241140EST
12/5/25
1903Z
!FDC 5/5359 DTO SID DENTON ENTERPRISE, DENTON, TX.
KINGDOM FIVE DEPARTURE...
LUBBOCK TRANSITION, MILLSAP TRANSITION, WICHITA FALLS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
8/11/25
1824Z
!FDC 5/5485 DTO SID DENTON ENTERPRISE, DENTON, TX.
BOTCH ONE DEPARTURE (RNAV)...
BRHMA TRANSITION: RUFFS TO KATZZ, MOCA 3500. ALIAN TRANSITION: FUMED TO ALIAN, MOCA 3200. CIKAN TRANSITION, DOSXX TRANSITION, WSTEX TRANSITION: LYNDE TO WSTEX, MOCA 3300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508111824-2603231824EST
3/13/25
1300Z
6/7/26
1218Z
!FDC 5/2698 DTO SID DENTON ENTERPRISE, DENTON, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CNX VORTAC OUT OF SERVICE. 2503131300-2606071218EST
9/12/24
1223Z
!FDC 4/4347 DTO IAP DENTON ENTERPRISE, DENTON, TX.
ILS OR LOC RWY 18L, ORIG...
DISREGARD PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 50).
2409121223-2609121223EST
9/12/24
1222Z
!FDC 4/4345 DTO IAP DENTON ENTERPRISE, DENTON, TX.
RNAV (GPS) RWY 18L, ORIG-A...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 54).
2409121222-2609121222EST
4/29/24
1450Z
4/29/26
2359Z
!FDC 4/6144 DTO STAR
LIKES THREE RNAV STAR MOCA BTN BIEST AND HRLIP CHANGED TO 3100
2404291450-2604292359EST
Yes
0600-2200
CITY OF DENTON
601 EAST HICKORY STREET
DENTON, TX 76201
Phone: 940-349-7736
RYAN ADAMS
5000 AIRPORT RD
DENTON, TX 76207
Phone: 940-349-7744
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
DTO
--
DUSK-DAWN WHEN ATCT CLSD, MIRL RWY 18L/36R & 18R/36L PRESET TO LOW INTST; TO INCR INTST & ACTVT MALSR RWY 18L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18L/36R

7002 ft. x 150 ft.
ASPH
Fair
NONE
MED

70,000lbs
100,000lbs
--
--
  Runway 18L Runway 36R
True Heading 181°1°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 12' 42"N 33° 11' 33"N
Longitude 97° 11' 52"W 97° 11' 53"W
Elevation 639' 627'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18R/36L

5003 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 18R Runway 36L
True Heading 181°1°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 12' 31"N 33° 11' 42"N
Longitude 97° 12' 02"W 97° 12' 03"W
Elevation 643' 627'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 18L DESIGNATED AS A CALM WIND RWY.
A110-2ARPT CLSD TO ULTRALIGHTS AND GLIDERS.
A110-3MOWING OPNS ON ARPT MAY-SEP.
A110-4FOR CD WHEN ATCT IS CLSD CTC LONE STAR APCH AT 972-615-2799.
A16RYAN.ADAMS@CITYOFDENTON.COM
A52-18L15 FT LOCALIZER ANT, 500 FT DSTC, OBSTN CLNC 20:1, 40:1 TO DTHR.
A57-36ROBSTN CLNC 49:1 TO DTHR OVR 20 FT TREES, 980 DSTC, 40:1 OVR LOC ANT, 600 FT DSTC.
A81-APTDUSK-DAWN WHEN ATCT CLSD, MIRL RWY 18L/36R & 18R/36L PRESET TO LOW INTST; TO INCR INTST & ACTVT MALSR RWY 18L - CTAF.
DENTON ENTERPRISE (ICAO: KDTO, IATA: DTO) is a public airport located in DENTON, TX, US.
