iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDTN
SHREVEPORT DOWNTOWN
PublicPUB

3 miles N of SHREVEPORT, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 32' 27"N 93° 44' 38"W
179' MSL
1179' MSL
01E
JET A, 100LL
DE RIDDER (DRI)
MEMPHIS
FORT WORTH (ZFW)
7/11/24-8/8/24
KDTN VFR
5:53 AM CDT
Clear
10sm
72°F
70°F
29.91"Hg
Calm
AO2 SLP123 T02220211 $
KDTN 191053Z AUTO 00000KT 10SM CLR 22/21 A2991 RMK AO2 SLP123 T02220211 $
Add Your Business

KDTN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.225

ASOS

ASOS
318-425-7967
 118.525

Clearance Delivery

CD/P
 121.65

Ground

GND/P
 121.65

Tower

LCL/P
 120.225

FAA A/FD Pages

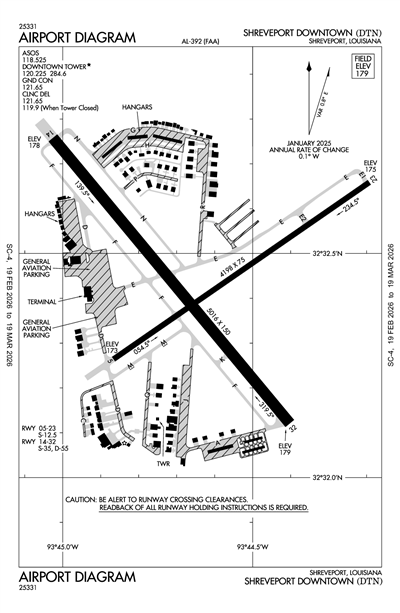

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBAD (5nm)
Wed, 9/18 11:00 PM CDT
Wed, 9/18 11:00 PM CDT - Fri, 9/20 5:00 AM CDT
VFR
11:00 PM CDT - 9:00 AM CDT
Sky Clear
6sm
29.91"Hg
110° 5kts
MVFR
Becoming 9:00 AM CDT - 5:00 AM CDT
Broken 3,000'
6sm
29.82"Hg
130° 6kts
TAF KBAD 190400Z 1904/2010 11005KT 9999 SKC QNH2990INS
   BECMG 1914/1915 13006KT 9999 BKN030 QNH2983INS TX33/1921Z TN21/1912Z
KDTN
Domestic
9/16/240000Z !DTN 09/009 DTN RWY 05/23 CLSD DLY 0000-1100 2409160000-2409201100
9/15/240230Z !DTN 09/011 DTN OBST TOWER LGT (ASR 1038610) 323222.50N0933210.80W (10.6NM E DTN) 534.8FT (259.8FT AGL) U/S 2409150230-2409300130
9/2/241427Z !DTN 09/001 DTN OBST TOWER LGT (ASR 1022487) 323958.50N0935600.70W (12.2NM NW DTN) 2049.2FT (1784.1FT AGL) U/S 2409021427-2412010400
8/30/242040Z !DTN 08/018 DTN TWY N BTN APCH END RWY 14 AND TXL G CLSD 2408302040-2411082300
8/30/242039Z !DTN 08/017 DTN TWY F BTN APCH END RWY 14 AND TWY D CLSD 2408302039-2411082300
8/29/241920Z !DTN 08/016 DTN OBST TOWER LGT (ASR 1054958) 323227.00N0935010.00W (4.7NM W DTN) 455.1FT (251.0FT AGL) U/S 2408291920-2412302300
8/5/241423Z !DTN 08/004 DTN TWY E BTN TWY N AND TWY F NONMOVEMENT AREA 2408051423-2410312359
6/27/241228Z !DTN 06/029 DTN TWY A BTN APCH END RWY 32 AND TXL A CLSD 2406271228-2411082200
6/27/241227Z !DTN 06/028 DTN TWY F BTN TWY A AND TXL J CLSD 2406271227-2411082200
5/20/241224Z !DTN 05/018 DTN AD AP WILDLIFE HAZARD DEER 2405201224-2412312359
4/15/241300Z !DTN 04/026 DTN RWY 14/32 CLSD 2404151300-2410312100
4/15/241200Z !DTN 04/021 DTN RWY 32 PAPI U/S 2404151200-2410312100
4/15/241200Z !DTN 04/020 DTN RWY 14 PAPI U/S 2404151200-2410312100
4/15/241200Z !DTN 04/019 DTN RWY 14 RWY END ID LGT U/S 2404151200-2410312100
4/15/241200Z !DTN 04/018 DTN RWY 32 RWY END ID LGT U/S 2404151200-2410312100
4/15/241200Z !DTN 04/017 DTN NAV ILS RWY 14 U/S 2404151200-2410312100
FDC
9/12/241343Z !FDC 4/4406 DTN IAP SHREVEPORT DOWNTOWN, SHREVEPORT, LA.
LOC RWY 14, AMDT 5B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EIC VORTAC UNMONITORED. 2409121343-2411131343EST
2/23/241925Z !FDC 4/9094 DTN ODP SHREVEPORT DOWNTOWN, SHREVEPORT, LA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF OBSTACLE NOTE: RWY 14, ANTENNA TOWER, 4786FT FROM DER, 316FT RIGHT OF CENTERLINE, 140 AGL/311 MSL (2023-ASW-7959-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2402231925-2602231925EST
Yes
0700-2200
SHREVEPORT ARPT AUTHORITY
5103 HOLLYWOOD, SUITE 300
SHREVEPORT, LA 71109-7764
Phone: 318-673-5370
BRUCE HOLLANDER
1550 AIRPORT ROAD, SUITE 100
SHREVEPORT, LA 71107
Phone: 318-349-8330
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DTN
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
144
23
6
0
0
0
Major
Major
High Pressure
Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

4198 ft. x 75 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 55°235°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 32' 16"N 32° 32' 39"N
Longitude 93° 44' 52"W 93° 44' 12"W
Elevation 173' 175'
Threshold Crossing Height 42 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

5016 ft. x 150 ft.
ASPH
Good
NONE
HIGH

35,000lbs
55,000lbs
--
--
  Runway 14 Runway 32
True Heading 140°320°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 32' 45"N 32° 32' 07"N
Longitude 93° 45' 02"W 93° 44' 24"W
Elevation 178' 179'
Threshold Crossing Height 43 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ALL VFR TFC REMAIN WITHIN 1 1/2 MILES NE THRU SW FM THE CENTER OF THE ARPT DUE TO SHREVEPORT/BARKSDALE AFB CLASS C AIRSPACE.
A110-3RWY 14 DESIGNATED CALM WIND RWY.
A110-5ACFT/VEHICLES NOT VSBL FROM ATCT ON N 685 FT OF TWY F.
A110-6WILDLIFE - DEER & BIRDS ON & INVOF ARPT.
SHREVEPORT DOWNTOWN (ICAO: KDTN, IATA: DTN) is a public airport located in SHREVEPORT, LA.
