iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDRT
DEL RIO INTL
PublicPUB

2 miles NW of DEL RIO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 22' 27"N 100° 55' 38"W
1002' MSL
2002' MSL
08E
JET A (FSII), 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
4/17/25-5/15/25
KDRT VFR
1:53 AM CDT
Clear
10sm
83°F
72°F
29.80"Hg
120° 15kts
Gusts 22kts
AO2 SLP080 T02830222 TSNO
KDRT 030653Z AUTO 12015G22KT 10SM CLR 28/22 A2980 RMK AO2 SLP080 T02830222 TSNO
+ Add Your Business

KDRT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
830-282-0257
 118.525

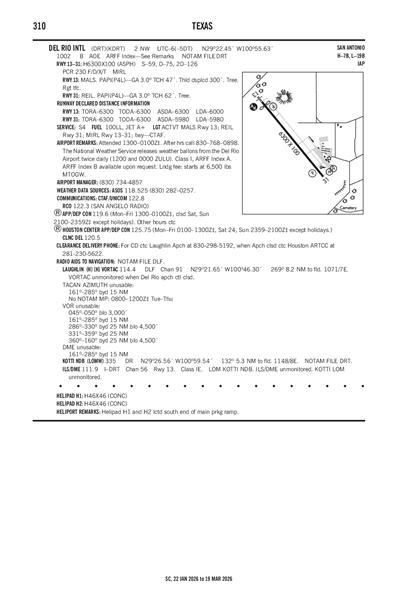

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDRT
Tue, 6/3 12:20 AM CDT
Tue, 6/3 1:00 AM CDT - Wed, 6/4 1:00 AM CDT
VFR
1:00 AM CDT - 4:30 AM CDT
Few 25,000'
Few 2,000'
6sm
120° 13kts
MVFR
4:30 AM CDT - 12:00 PM CDT
Broken 1,500'
6sm
120° 9kts
VFR
12:00 PM CDT - 8:00 PM CDT
Few 25,000'
Few 5,000'
6sm
140° 11kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
120° 10kts
KDRT 030520Z 0306/0406 12013KT P6SM FEW020 FEW250
   FM030930 12009KT P6SM BKN015
   FM031700 14011KT P6SM FEW050 FEW250
   FM040100 12010KT P6SM FEW250
KDRT
Domestic
5/21/250845Z !DRT 05/004 DRT OBST TOWER LGT (ASR 1211056) 293454.70N1005227.70W (12.7NM NNE DRT) 1640.7FT (319.9FT AGL) U/S 2505210845-2509180845
3/4/251554Z !DRT 03/003 DRT OBST TOWER LGT (ASR 1023396) 294133.20N1011101.50W (23.3NM NW DRT) 2086.0FT (482.0FT AGL) U/S 2503041554-2506030500
2/12/251921Z !DRT 02/010 DRT NAV ILS RWY 13 OM U/S 2502121921-2506302111EST
5/21/242005Z !DRT 05/012 DRT SVC CLR DELIVERY 120.5 UNREL USE LAUGHLIN APP 830-298-5192 2405212005-PERM
FDC
5/14/251936Z !FDC 5/0952 DRT IAP DEL RIO INTL, DEL RIO, TX.
ILS OR LOC RWY 13, ORIG-B...
CIRCLING CAT A MDA 1460/HAA 458.
2505141936-2705141936EST
No
0700-1900
AFT HRS CALL 830-768-0898.
DEL RIO/VAL VERDE CO
109 W BROADWAY STREET
DEL RIO, TX 78840
Phone: (830) 774-8610
JUAN ONOFRE
1104 WEST 10TH STREET
DEL RIO, TX 78840
Phone: (830) 734-4857
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
DRT
--
ACTVT MALS RWY 13; REIL RWY 31; MIRL RWY 13/31; TWY - CTAF
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Cargo Handling
Aircraft Sales

Runway 13/31

6300 ft. x 100 ft.
ASPH
Good
NONE
MED

59,000lbs
75,000lbs
126,000lbs
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 29° 22' 51"N 29° 22' 03"N
Longitude 100° 56' 01"W 100° 55' 15"W
Elevation 1,002' 995'
Threshold Crossing Height 47 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

46 ft. x 46 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 85°265°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 29° 22' 07"N N/A
Longitude 100° 55' 09"W N/A
Elevation 1,002' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

46 ft. x 46 ft.
CONC
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading 85°265°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 29° 22' 08"N N/A
Longitude 100° 55' 08"W N/A
Elevation 1,002' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HELIPAD H1 & H2 LCTD SOUTH END OF MAIN PRKG RAMP.
A110-2FOR CD CTC LAUGHLIN APCH AT 830-298-5192, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A110-3THE NATIONAL WEATHER SERVICE RELEASES WEATHER BALLOONS FROM THE DEL RIO AIRPORT TWICE DAILY (1200 AND 0000 ZULU).
A110-4ARFF INDEX B AVAILABLE UPON REQUEST
DEL RIO INTL (ICAO: KDRT, IATA: DRT) is a public airport located in DEL RIO, TX.
