KDPG
MICHAEL AAF (DUGWAY PROVING GROUND)
PrivatePVT

9 miles W of DUGWAY PROVING GROUND, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 11' 51"N 112° 56' 06"W
4350' MSL
5350' MSL
13E
None Listed
CEDAR CITY (CDC)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
4/17/25-5/15/25
KDPG VFR
4:55 PM MDT
Broken 26,000'
Few 20,000'
40sm
84°F
27°F
29.91"Hg
330° 12kts
SLP071 T02881030 LAST
KDPG 022255Z 33012KT 40SM FEW200 BKN260 29/M03 A2991 RMK SLP071 T02881030 LAST
+ Add Your Business

KDPG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

FAA A/FD Pages

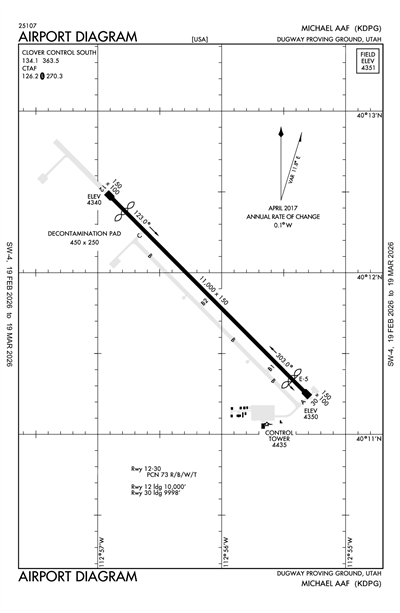

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSVR (50nm)
Mon, 6/2 11:41 PM MDT
Tue, 6/3 12:00 AM MDT - Wed, 6/4 12:00 AM MDT
VFR
12:00 AM MDT - 5:00 AM MDT
Sky Clear
6sm
350° 11kts
VFR
5:00 AM MDT - 9:00 AM MDT
Sky Clear
6sm
230° 4kts
VFR
9:00 AM MDT - 12:00 AM MDT
Sky Clear
6sm
330° 11kts
KSVR 030541Z 0306/0406 35011KT P6SM SKC
   FM031100 23004KT P6SM SKC
   FM031500 33011KT P6SM SKC
KDPG
Military
5/20/252127Z !KDPG M0031/25 DPG AD BIRD ACTIVITY BUFFER FOR EAGLES NEST IS UP TO 7920MSL AND .5SM AROUND. LOCATED AT (40.1701816,-113.3020786 )(40.40344,-113.03696) 2505202127-2508152359
5/20/252111Z !KDPG M0030/25 DPG SVC FUEL NOT AVBL FOR ALL TESTS AND ACTIVITES 2505202111-2506032359
5/20/252110Z M0029/25 NOTAMC M0028/25
4/14/251515Z !KDPG M0023/25 DPG OBST POLE 401104N1125546W (1NM SE DPG) UNKNOWN MSL
(100FT AGL) NOT LGTD 2504141515-2507012359
4/2/251849Z !KDPG M0022/25 DPG NAV TACAN UNREL BROADCASTING HAZARDOUS MISLEADING INFORMATION 2504021849-2506012359
4/1/252152Z !KDPG V0126/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 LNAV MDA MINIMA WITH WENDOVER ALT AND 323' CG: CAT AB 4960-1 616 (700-1); CAT CDE 4960-1¾ 616 (700-1¾). 2504012152-2708312359
4/1/252143Z !KDPG V0124/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 CIRCLING MINIMA CIRCLING CAT A 5160-1 809 (900-1); CAT B 5160-1 1/4 809 (900-1 1/4); CAT C 5180-2½ 829 (900-2½); CAT D 5880-3 1529 (1600-3); CAT E 6300-3 1949 (2000-3). 2504012143-2708312359
4/1/252136Z !KDPG V0122/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 CROSS ETUBY IAF AT OR ABOVE 9600 2504012136-2708312359
4/1/251901Z !KDPG V0120/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 CIRCLING MINIMA WITH WENDOVER ALT: CAT A 5300-1¼ 949 (1000-1¼); CAT B 5300-1½ 949 (1000-1½); CAT C 5320-3 969 (1000-3); CAT D 6040-3 1689 (1700-3); CAT E N/A. 2504011901-2708312359
4/1/251854Z !KDPG V0117/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 LNAV MDA MINIMA WITH WENDOVER ALT: CAT A 5300-1¼ 956 (1000-1¼); CAT B 300-1½ 956 (1000-1½); CAT CDE 5300-3 956 (1000-3). 2504011854-2708312359
4/1/251849Z !KDPG V0115/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 CIRCLING MINIMA: CAT A 5140-1 789 (800-1); CAT B 5140-1¼ 789 (800-1¼); CAT C 5160-2½ 809 (900-2½); CAT D 5880-3 1529 (1600-3); CAT E N/A. 2504011849-2708312359
4/1/251845Z !KDPG V0114/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 LNAV MDA MIMIMA: CAT A 5140-1 796 (800-1); CAT B 5140-1¼ 796 (800-1¼); CAT CDE 5140-2½ 796 (800-2½). 2504011845-2708312359
4/1/251843Z !KDPG V0113/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 LNAV MDA WITH 323 FT CG: CAT AB 4800-1 456 (500-1); CAT CDE 4800-1⅜ 456 (500-1⅜). 2504011843-2708312359
4/1/251834Z !KDPG V0110/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 RWY 12 NEW MISSED APPROACH: CLIMB TO 5200 (5360 WHEN USING WENDOVER ALTIMETER) THEN CLIMBING RIGHT TURN TO 8500 DIRECT ETUBY AND HOLD, CONTINUE CLIMB IN HOLD TO 8500. 2504011834-2708312359
4/1/251825Z !KDPG V0108/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 CIRCLING MINIMA WITH WENDOVER ALT: CAT A 5340-1¼ 989 (1000-1¼); CAT B 5340-1½ 989 (1000-1½); CAT C 5340-3 989 (1000-3); CAT D 6040-3 1689 (1700-3); CAT E 6460-3 2109 (2200-3) 2504011825-2708312359
4/1/251822Z !KDPG V0107/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 S-12 MINIMA USING WENDOVER ALT: CAT A 5340-1¼ 996 (1000-1¼); CAT B 5340-1½ 996 (1000-1½); CAT CDE 5340-3 996 (1000-3) 2504011822-2708312359
4/1/251815Z !KDPG V0105/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 W/315 CG USING WENDOVER ALT, CAT AB 5020-1 676 (700-1); CAT CDE 5020-1⅞ 676 (700-1⅞) 2504011815-2708312359
4/1/251812Z !KDPG V0104/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 S-12 MINIMA CAT A 5180-1 836 (900-1); CAT B 5180-1¼ 836 (900-1¼); CAT CDE 5180-2½ 836 (900-2½) 2504011812-2708312359
4/1/251809Z !KDPG V0103/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 S-12 W/315 CG MINIMA CAT AB 4860-1 516 (600-1); CAT CDE 4860-1⅜ 516 (600-1⅜) 2504011809-2808312359
3/13/251929Z !KDPG V0069/25 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 ALS INOP MINIMA N/A. 2503131929-2603122359
3/5/252246Z !KDPG M0011/25 DPG OBST WATERTOWER 401050N1125545W (.917NM SW DPG) UNKNOWN MSL
(150FT AGL) NOT LGTD 2503052246-2506012359
3/5/252241Z !KDPG M0010/25 DPG APRON DECONTAMINATION PAD EDGE LINE NOT MARKED RAISED CONCRETE EDGE UNMARKED 2503052241-2506012359
3/5/252239Z TWY A CAUTION ADVISE-9FT FENCE 140 FT FROM THE WEST END ALPHA TAXIWAY, ORANGE BALLARD MARKED WITH RED CAUTION TAPE. WING WALKERS MAY BE REQUIRED.
3/5/252218Z !KDPG M0008/25 DPG TWY B EDGE MARKINGS NOT MARKED 2503052218-2506012359
No
MON-THU 1400-2400Z++
CLSD FRI-SUN AND HOLIDAYS.
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
Phone: 435-831-5322
BASE OPERATION
MICHAEL AAF (DUGWAY PROVING GROUND)
UT
Phone: 435-831-5322
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT PAPI RWY 12 & 30; HIRL RWY 12/30; TWY LGTS - CTAF.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

10999 ft. x 150 ft.
ASPH
Poor
GRVD
HIGH
73 /R/B/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings NONE NONE
Markings Condition POOR POOR
Latitude 40° 12' 29"N 40° 11' 12"N
Longitude 112° 56' 56"W 112° 55' 16"W
Elevation 4,340' 4,350'
Threshold Crossing Height 88 ft. AGL 85 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RSTD: 24 HR PPR FOR LDG AND FUEL; CTC BASE OPS DSN 789-5322, C 435-831-5322.ALL USAF, ANG, AND AFRES AMC ACFT CONSULT ASRR FOR THIS LCTN.
A110-12RWY 12R-30L CLSD.
A110-13CAUTION: POTENTIAL FOR WILD ANIMALS TO CROSS RWY AND FOREIGN OBJECT DAMAGE HAZ DURING HIGH WIND CONDITIONS. BIRD ACT MNT O/R.
A110-16CAUTION-LANDING SHORT OF RY 30 THLD IS A SIGNIFICANT HAZARD. THE E-5 BARRIER PROTRUDES SEVERAL INCHES ABOVE THE GROUND. ACFT CTC WITH THE BARRIER SHORT OF THE RY THLD CAN CAUSE DAMAGE TO THE BARRIER AND SUBSTANTIAL DAMAGE TO THE ACFT.
A110-17CAUTION: LTD ACFT RESCUE & FIRE FIGHTING (ARFF) CAPABILITY FOR MANNED ACFT, CALL BASOPS FOR INFO.
A110-18FOR CD CTC CLOVER CTL AT 801-777-7575 OR VHF 134.1.
A110-19TWY B CLSD TO MANNED ACFT B1 TO B2 1300-2300Z MON-THUR.
A110-5JASU: 2 (A/M32A-86) 2(A/M32A-60).
A110-6FUEL - A++. AIRCARD RQR COMMS.
A110-7OIL: O-156.
A110-8TSNT ALERT: OPR 1400-0030Z++ MON-THU EXCP HOL.
A110-9SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
MICHAEL AAF (DUGWAY PROVING GROUND) (ICAO: KDPG, IATA: DPG) is a private airport located in DUGWAY PROVING GROUND, UT.
