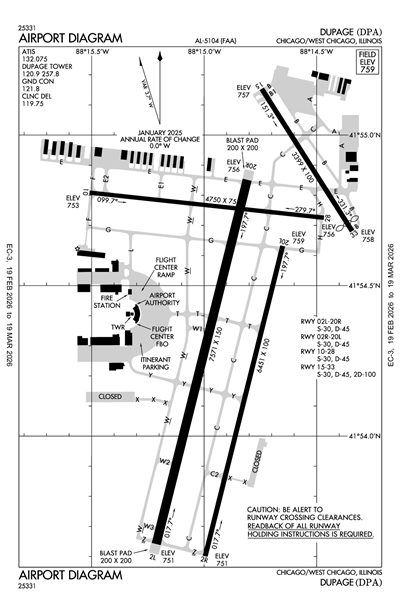

DUPAGE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDPA
ICAO KDPAIATA DPALocal DPA
DUPAGE
PublicPUB

29 miles W of CHICAGO/WEST CHICAGO, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 54' 25"N 88° 14' 53"W
Elevation
759' MSL
Pattern Alt
1759' MSL
Mag Variation
4°W
Declination
1°W
Fuel
JET A, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KDPA IFR
9:52 PM CST
Mist
Overcast 700'
4sm
35°F
34°F
30.18"Hg
Calm
AO2 SLP227 T00170011
METAR KDPA 040352Z 00000KT 4SM BR OVC007 02/01 A3018 RMK AO2 SLP227 T00170011
+ Add Your Business

KDPA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.075
ASOS (630) 587-3668

Common

UNICOM 122.95

Clearance

Clearance Delivery 119.75

Ground

DUPAGE GROUND 121.8

Tower

DUPAGE TOWER 120.9
DUPAGE TOWER 124.5
Secondary

Approach

CHICAGO APPROACH 133.5

Departure

CHICAGO DEPARTURE 133.5

Flight Service

Flight Service 122.3
(IKK)

Terminal Area Forecast

KDPA
Tue, 3/3 9:04 PM CST
Tue, 3/3 9:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
9:00 PM CST - 3:00 AM CST
Mist
Overcast 700'
6sm
060° 5kts
IFR
3:00 AM CST - 10:00 AM CST
Mist
Overcast 600'
Scattered 400'
3sm
040° 5kts
LIFR
Temporary 4:00 AM CST - 8:00 AM CST
Mist
Broken 400'
Scattered 200'
2sm
Calm
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Broken 2,000'
Scattered 600'
6sm
090° 10kts
MVFR
12:00 PM CST - 4:00 PM CST
Overcast 1,500'
Scattered 1,000'
6sm
090° 9kts
MVFR
4:00 PM CST - 6:00 PM CST
Light Showers and Rain and Mist
Overcast 1,000'
5sm
060° 9kts
TAF KDPA 040304Z 0403/0424 06005KT 6SM BR OVC007
   FM040900 04005KT 3SM BR SCT004 OVC006
   TEMPO 0410/0414 2SM BR SCT002 BKN004
   FM041600 09010KT 6SM BR SCT006 BKN020
   FM041800 09009KT P6SM SCT010 OVC015
   FM042200 06009KT 5SM -SHRA BR OVC010
KDPA
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1613Z
3/3/26
2100Z
!DPA 02/019 DPA OBST CRANE (ASN 2025-AGL-14620-OE) 415508N0881502W (0.7NM N DPA) 903FT (150FT AGL) FLAGGED 2602231613-2603032100
11/28/25
0205Z
!DPA 11/020 DPA NAV ILS RWY 10 OM DECOMMISSIONED 2511280205-PERM
FDC
11/27/25
1158Z
!FDC 5/2198 DPA IAP DUPAGE, CHICAGO/WEST CHICAGO, IL.
ILS OR LOC RWY 10, AMDT 9...
S-ILS 10 DA 1087/HAT 331 ALL CATS, VIS ALL CATS 1. RWY 10 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NA. TEMPORARY CRANE 854 MSL 3322FT W OF RWY 10 (2025-AGL-8232-OE).
2511271158-2607092355EST
11/7/25
1407Z
!FDC 5/3702 DPA ODP DUPAGE, CHICAGO/WEST CHICAGO, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1B...
TAKE-OFF MINIMUMS RWY 10: 300 1 1/4 OR STANDARD WITH A MINIMUM CLIMB OF 216FT PER NM TO 1000. TEMPORARY CRANE 6229FT FROM DER, 1899FT RIGHT OF CENTERLINE, 165FT AGL/924FT MSL (2025-AGL-9037-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2511071407-2606192355EST
8/14/25
1454Z
!FDC 5/7648 DPA IAP DUPAGE, CHICAGO/WEST CHICAGO, IL.
RNAV (GPS) RWY 10, ORIG-F...
LPV DA 1083/HAT 327 ALL CATS, VIS ALL CATS 1. RWY 10 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NA. VDP 1.18 NM TO RW10. TEMPORARY CRANE 854 MSL 3322FT W OF RWY 10 (2025-AGL-8232-OE).
2508141454-2603262355EST
8/14/25
1450Z
!FDC 5/7633 DPA ODP DUPAGE, CHICAGO/WEST CHICAGO, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1B...
TAKEOFF OBSTACLE NOTES: RWY 28, TEMPORARY CRANE 3282FT FROM DER, 518FT RIGHT OF CENTERLINE, 86FT AGL/854FT MSL (2025-AGL-8232-OE). TEMPORARY CRANE 2956 FROM DER, 453FT RIGHT OF CENTERLINE, 70FT AGL/830FT MSL, (2025-AGL-7602-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2508141450-2603262355EST
4/15/25
1817Z
!FDC 5/6565 DPA ODP DUPAGE, CHICAGO/WEST CHICAGO, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1B...
TAKE-OFF MINIMUMS RWY 15: 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 210 FT PER NM TO 1000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2504151817-2704151817EST
4/15/25
1817Z
!FDC 5/6564 DPA SID DUPAGE, CHICAGO/WEST CHICAGO, IL.
ADELL SEVEN DEPARTURE (RNAV)...
BLOKR SEVEN DEPARTURE (RNAV)...
CARYN SEVEN DEPARTURE (RNAV)...
DARCY SEVEN DEPARTURE (RNAV)...
ELANR EIGHT DEPARTURE (RNAV)...
OBENE THREE DEPARTURE (RNAV)...
DEPARTURE PROCEDURE.
TAKE-OFF MINIMUMS RWY 15: 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 210 FT PER NM TO 1000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2504151817-2704151817EST
Yes
ALL
DUPAGE ARPT AUTH
2700 INTERNATIONAL DRIVE STE 200
WEST CHICAGO, IL 60185
Phone: 630-584-2211
MARK DOLES
2700 INT'L DRIVE, STE 200
WEST CHICAGO, IL 60185
Phone: 630-584-2211
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
DPA
--
ATC-CTL
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02L/20R

7571 ft. x 150 ft.
CONC
Good
GRVD
HIGH

30,000lbs
45,000lbs
--
--
  Runway 02L Runway 20R
True Heading 14°194°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 53' 39"N 41° 54' 51"N
Longitude 88° 15' 13"W 88° 14' 49"W
Elevation 751' 756'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 02R/20L

6451 ft. x 100 ft.
CONC
Good
GRVD
MED

30,000lbs
45,000lbs
--
--
  Runway 02R Runway 20L
True Heading 14°194°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 53' 36"N 41° 54' 38"N
Longitude 88° 14' 60"W 88° 14' 39"W
Elevation 750' 758'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 10/28

4750 ft. x 75 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
45,000lbs
--
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 54' 49"N 41° 54' 44"N
Longitude 88° 15' 31"W 88° 14' 28"W
Elevation 753' 756'
Threshold Crossing Height 50 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

3399 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
45,000lbs
100,000lbs
--
  Runway 15 Runway 33
True Heading 148°328°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 55' 09"N 41° 54' 41"N
Longitude 88° 14' 45"W 88° 14' 21"W
Elevation 757' 758'
Threshold Crossing Height 42 ft. AGL --
Visual Glide Path Angle 3.9° --
Visual Slope Indicator P4R --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER, COYOTE, BIRDS & MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-2ACFT ON SHORT FINAL TO RY 15 ARE NOT VSB FROM ATCT DUE TO TREES.
A110-3ARFF INDEX B PPR
A110-4US CUST SVC AVBL PPR.
A110-5INT DEP RWY 20R AT TWY G HAS 6141'.
A15EMAIL ADDRESS: DBIRD@DUPAGEAIRPORT.GOV (ALL LOWER CASE)
A43-10UNUSBL BYD 5 DEG RIGHT AND LEFT OF CNTRLN.
A57-33APCH RATIO IS 20:1 TO DSPLCD THLD.
A58-33+13 FT ROAD 199 FT FM RY END 125 FT R.
A70-100LL100LL SELF SER AVBL 24HR WITH CREDIT CARD.
A81-APTATC-CTL
DUPAGE (ICAO: KDPA, IATA: DPA) is a public airport located in CHICAGO/WEST CHICAGO, IL, US.
