iFlightPlanner



...

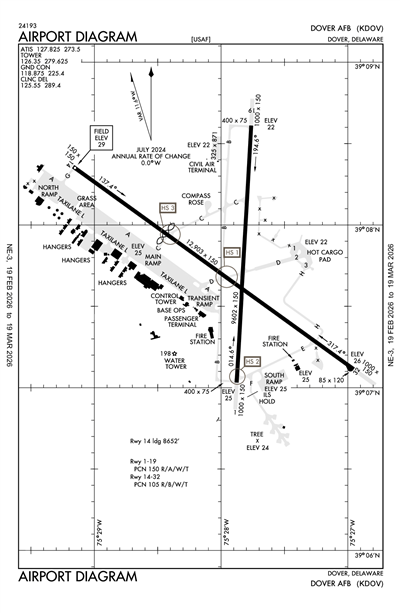

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDOV
DOVER AFB
PublicPUB

3 miles E of DOVER, DE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 07' 46"N 75° 27' 57"W
29' MSL
1029' MSL
12W
JET A (FSII), JP-8
MILLVILLE (MIV)
WASHINGTON
WASHINGTON (ZDC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KDOV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
DSN 445-2847
 127.825

Approach

APCH/S
X
 135.15

Approach/Departure

APCH/P DEP/P
 132.425

Clearance Delivery

CD/P
 125.55

Emergency

EMERG
 121.5

Ground

GND/P
 118.875

Tower

LCL/P
 126.35

Other

ARLFT STAR
 132.425
GCA
X
 142.2
VFR SEQUENCING
SVC 25 NM OUT
 125.9

Terminal Area Forecast

No TAF is available for this location.
KDOV
Military
1/14/251425Z RWY 14/32 DRY PATCHY ICE
1/14/250716Z M0336/25 NOTAMC M1992/24
1/14/250715Z RWY 01/19 MANDATORY SIGN (LEFT & RIGHT SIDE) ON RWY 32 UNLIT
1/13/251949Z M0333/25 NOTAMC M0271/25
1/13/251948Z M0332/25 NOTAMC M0270/25
1/13/251223Z AERODROME ARFF IS REDUCED LEVEL OF SERVICE FOR USAF CAT 6 (C-5) AND CAT 5 (KC-10, E-4, VC-25, 777) DUE TO PERSONNEL SHORTAGE, 9,100 GALS AVAILABLE
1/13/250919Z TWY B/D DIRECTION SIGN LOCATED ON EAST SIDE OF RWY 14/32 BETWEEN TWY B AND TWY D NOT LGTD
1/13/250911Z TWY B DIRECTION SIGN LOCATED ON NORTHEAST SIDE OF RWY 14/32 INTERSECTION NOT LGTD
1/13/250859Z TWY C DIRECTION SIGN LOCATED AT RWY 14/32 INTERSECTION ON NORTHEAST SIDE NOT LGTD
1/13/250850Z M0327/25 NOTAMC M0290/25
1/13/250849Z M0326/25 NOTAMC M0314/25
1/13/250848Z M0325/25 NOTAMC M0295/25
1/13/250848Z M0324/25 NOTAMC M0280/25
1/13/250847Z M0323/25 NOTAMC M0277/25
1/13/250847Z M0322/25 NOTAMC M0275/25
1/13/250847Z M0321/25 NOTAMC M0297/25
1/13/250846Z TWY B DIRECTION SIGN LOCATED ON TWY C BETWEEN RWY 01/19 AND TWY B NOT LGTD
1/13/250432Z TXL L CLSD FROM SPOT CC TO HANGAR 945
1/13/250354Z M0318/25 NOTAMC M0298/25
1/12/251257Z M0315/25 NOTAMC M0284/25
1/12/250748Z HC-3 RESTRICTED TO C-17 AIRCRAFT OR SMALLER
1/12/250519Z RWY 32 TWY B DIRECTIONAL SIGN (SOUTH SIDE) OTS
1/11/250722Z !KDOV M0244/25 DOV RWY 01 6000FT DIST REMAINING SIGN RIGHT SIDE NOT LGTD 2501110722-2502282359
1/11/250720Z !KDOV M0243/25 DOV RWY 32 5000FT DIST REMAINING SIGN RIGHT SIDE NOT LGTD 2501110720-2502282359
1/10/250524Z RWY 14 2K DRM LEFT SIDE OTS
1/10/250007Z !KDOV M0209/25 DOV RWY 14 PAPI U/S 2501100007-2502092359
1/8/250528Z RWY 14/32 MANDATORY SIGN ON RWY 01/19 (WEST SIDE) UNSERVICEABLE.
1/8/250524Z RWY 01/19 MANDATORY SIGN ON RWY 14/32 (NORTH SIDE) UNSERVICEABLE.
12/27/240607Z TWY DELTA DIRECTION SIGN NORTH SIDE AT RWY 14/32 INTERSECTION NOT LGTD
12/27/240604Z RWY 32 TWY E DIRECTION SIGN RIGHT SIDE BEFORE EXITING OUT OF SERVICE
12/26/240901Z RNAV (GPS) RWY 32 APPROACH NOT AUTHORIZED
12/16/240408Z AERODROME WATER TOWER OBSTRUCTION LIGHTS OTS
10/30/241312Z BASH PHASE II IN EFFECT 1 OCTOBER THRU 31 MARCH. BASH PHASE II PEAK BIRD HOURS WINDOW IS 60 MIN BEFORE TO 60 MIN AFTER SUNRISE/SUNSET. NON-USAF AIRCRAFT ARE HIGHLY ENCOURAGED TO MODIFY ARRIVAL AND DEPARTURE TIMES TO AVOID PEAK BIRD HOURS. USAF AIRCRAFT NEED TO REFERENCE AP/1 FOR RESTRICTIONS AND ADDITIONAL INFORMATION.
Yes
ALL
USAF
DOVER AFB
DOVER, DE 19901
CHIEF AFLD MANAGEMENT/ MR HETTEROTH
DOVER AFB
DOVER, DE 19901
Phone: 302-677-4183
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
DOV
--
--
N/A
N/A
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Cargo Handling

Runway 01/19

9602 ft. x 150 ft.

CONC
GRVD
HIGH
150/R/A/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 07' 02"N 39° 08' 37"N
Longitude 75° 27' 53"W 75° 27' 46"W
Elevation 25' 22'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 14/32

12903 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
105/R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 126°306°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 08' 21"N 39° 07' 07"N
Longitude 75° 29' 10"W 75° 26' 57"W
Elevation 29' 26'
Threshold Crossing Height 78 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 2.93°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10RSTD: ALL ACFT WITH HAZ MATERIAL/RQR REMOTE/ISOLATED PRK WILL CTC 436 APS EXPLOSIVE HANDLING SECTION DSN 445-2304 1230-2130Z++ OR ATOC DUTY OFFICER DSN 445-2300 2130-1230Z++ FOR PPR. BASE OPS DSN 445-2861/4192, C302-677-2861/4192.
A110-11RSTD: ALL INBD PAX/CARGO MUST CTC COMD POST NO LATER THAN 30 MIN PRIOR TO LDG. RY 32 TKOF DIST AVBL 10,070 FT.
A110-13RSTD: ACFT TAXIING OUT OF MAIN RAMP USING TAXI LANE L BTN DELTA ROW AND SPOT ECHO MUST USE MIN PWR AND IN-BOARD ENG ONLY (C5 ACFT SHOULD NOT EXCEED 40 PERCENT N1 RPM) WHEN TURNING ONTO TAXI LANE A.
A110-14CAUTION: POSSIBLE JET WAKE TURBULENCE IN TFC PAT & C5 JET BLAST DUR GND OPR. SPECIAL HAZ EXIST FOR WIDE BODY ACFT TAXIING FM RAMP. 'FOLLOWW ME TRUCK' RQR FOR ALL MOVEMENTS ON RAMP BY NON C5 TRAN ACFT, TRAN C5 FLW ME SVC AVBL O/R.
A110-15CAUTION: TREE LINE E OF RY 19 APCH END MAY CAUSE WIND SHEAR DUR LDG WHEN WIND IS FR SE. BA LESS THAN OPTIMUM WHEN RY IS WET DUE TO RUBBER BUILD-UP.
A110-17NS ABTMT: STRICT COMPLIANCE WITH PRO RQR.
A110-19FIRST 4250 FT RWY 14 AND FIRST 1650 FT RWY 32 GROOVED CONCRETE, MIDDLE 7000 FT ASPHALT.
A110-21FLUID; SP PRESAIR LPOX LOX.
A110-22CAUTION: HIGH SPEED, LOW ALTITUDE HEAVY JET TRAFFIC WITH 10 NM OF DOVER.
A110-26AFLD MANAGEMENT HAS LTD AMOUNT OF STORAGE FOR CLASIFIED MATERIAL. SIZE LTD TO SMALL BACKPACKS OR SMALLER ONLY. BASE OPERATIONS HAS LIMITED AMOUNT OF STORAGE FOR CLASSIFIED MATERIAL, SIZE LIMITED TO SMALL BACKPACK OR SMALLER ONLY. BASE OPS HAS NO COMSEC TO TRAN AIRCREWS. TRAN AIRCREWS SHOULD PLAN TO ARR WITH APPROPRIATE AMOUNT OF COMSEC TO COMPLETE ENTIRE MSN.
A110-27RSTD: NON-DOD CIVIL ACFT OPERATIONS 72 HR PPR BY CONTACTING (302) 571-6375.
A110-28TWY DELTA EDGE LGTS 40 FT FROM TWY EDGE BTN RWY 32 HOLD LINE & RWY 01/19.
A110-29MISC RWY 32 FIRST 2000 FT, MIDDLE 1500 FT 1000 FT SE OF TWY C AND LAST 1000 FT CONC REMAINDER OF RWY ASPHALT.
A110-3SERVICE: AOE.
A110-30USAF ARFF MEETS ALL EMERG RESPONSE TIMES. ARFF IS CAT 6 FIREFIGHTING AGENT (12.1K) LEVEL WITH NFPA CAT 10 STAFFING LEVEL (13). SUFFICIENT CAPABILITY IS PROVIDED FOR INITIAL RESPONSE, SCENE ASSESSMENT AND IMPLEMENTATION OF MITIGATION TACTICS.
A110-31RWY 32 WINDS DERIVED FROM APCH END OF RWY 01. RWY 14 WINDS DERIVED FROM APCH END OF RWY 19.
A110-32RSTD: CONTACT AIRFIELD MANAGEMENT DSN 445-2861 FOR BIRD WATCH CONDITIONS (BWC).
A110-34RSTD: PPR EXC AMC, SAM, DOD COURIER SVC AND EVAC MSN DSN 445-2861.
A110-35CAUTION: 5 CIV ARPT LCTD WITHIN 10 NM RAD.
A110-37RWY 32 ASSAULT LDG ZONE (ALZ) NSTD AFLD MRK CONSISTING OF WHITE BOX (500 FT X 90 FT) BEGINNING 500 FT FR THLD WITH WHITE BAR 3000 FT FR END OF BOX. AFLD IS TERPS FROM SFC (GRD LEVEL), DER CROSSING HGT 0 FT.
A110-38MISC: JET SIDE SERVICE 1-STOP SHOP PRINTS INTEGRATED FMS CREW PACKAGES.
A110-39COMMUNICATIONS-PMSV METRO: WX FLT DSN 445-4175/4176, C302-677-4175/4176. IF FCSTR IS OUT OF OFFICE AND DOES NOT ANSWER ON UHF CTC COMD POST DSN 445-4201, C302-677-4201 FOR FONE PATCH. IF FONE PATCH FAILS, CTC FRCSTR ON SBY FONE C302-363-7779. BLDG OBST MAY IMPACT PREVAILING VIS 150--260-. DUR EVAC OF WX FLT CTC 15 OWS AT DSN 576-9690, C618-256-9690. ALTN WX LCTN VIS SLIGHTLY LTD DUE TO BLDG AND PRK ACFT. ATC WILL SUPPLEMENT OBSN AS NEEDED.
A110-4LGT PAPI COINCIDENTAL WITH ILS GS RY 01/19 AND WITH TACAN VDP RY 01/19, 32 FOR H PAPI GT GP 4 ACFT ONLY. PAPI PROVIDES PROPER TCH FOR HGT GP 4 ACFT ONLY.
A110-40NSTD MRK - C17 STAR TURN MRK LCTD ON TWY A AT INT OF TWY D (2 WHITE STRIPES 100' APART, 190' LENGTH X 1' WIDE. C17 BACKING DEMONSTRATION ZONE MRK ON TWY C BTN RWY 14/32 AND TWY B. MRK WILL BE WHITE AND VARY IN WIDTH AND GEOMETRY.
A110-41MISC: RWY COND CODE NOT RPRTD.
A110-42MISC: B747 (ALL SERIES) MUST ARR WITH TOW BAR.
A110-43COMM COMD POST: CALL SIGN FIRST OPS.
A110-44CAUTION: C-17 ACFT WINGTIP TRNG LINES ON TAXI LANE L IN FRONT OF PRK SPOT E. C-5 ACFT WINGTIP TRNG LINES ON TAXI LANE L BTN PRK SPOT D2 AND E. C-5 AND C-17 WING TIP TRNG SIGN LCTD OFF OF TWY G. SIGNS DEPICT 10 FT AND 25 FT WING TIP CLNC.
A110-45CAUTION: SFC PAINTED APN ENTRANCE POINT MRKGS EXIST ON HAZ CARGO RAMP, SOUTH RAMP AND CHRISTMAS TREE RAMP. TWY D BTN RWY 01/19 AND HAZ CARGO PAD DOES NOT HAVE SHOULDER MRKGS.
A110-46RSTD: DIGNIFIED TRANSFER MISSIONS CONTACT 436 AW/CP FOR ADVANCE COORDINATION AND TO OBTAIN A CURRENT COPY OF DT AIRCREW BROCHURE.
A110-5JASU: (ADAPTERS NOT AVBL.) 3(MA-1A) (M32A-86).
A110-8OIL: 0-133-148 SOAP.
A110-9TRAN ALERT: OPR H24.
DOVER AFB (ICAO: KDOV, IATA: DOV) is a public airport located in DOVER, DE.
