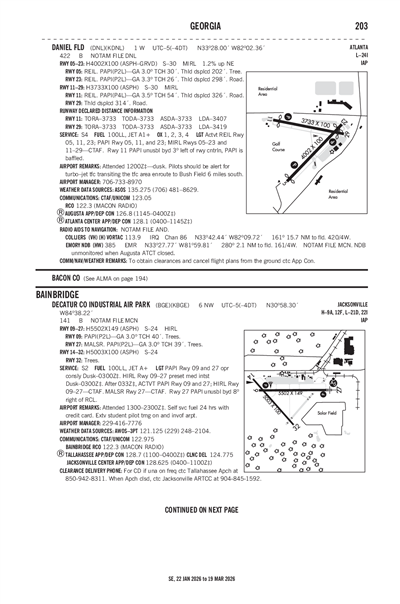

DANIEL FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDNL
ICAO KDNLIATA DNLLocal DNL
DANIEL FLD
PublicPUB

1 miles W of AUGUSTA, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 27' 60"N 82° 02' 22"W
Elevation
422' MSL
Pattern Alt
1422' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A-1+, 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KDNL VFR
2:53 AM EST
Clear
10sm
51°F
50°F
30.30"Hg
Calm
AO2 SLP259 T01060100
METAR KDNL 040753Z AUTO 00000KT 10SM CLR 11/10 A3030 RMK AO2 SLP259 T01060100
+ Add Your Business

KDNL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.275
(706) 481-8629

Common

CTAF 123.05
ACTVT REIL RWY 05, 11, 23; PAPI RWY 05, 11, & 23; MIRL RWY 05/23 & 11/29 - CTAF.
UNICOM 123.05

Approach

AUGUSTA APPROACH 126.8

Departure

AUGUSTA DEPARTURE 126.8

Center

AUGUSTA CENTER 128.1
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 128.1/322.325 (AUGUSTA RCAG) WHEN AUGUSTA APCH CTL CLSD.

Flight Service

Flight Service 122.3
(MCN)

Terminal Area Forecast

KDNL
Wed, 3/4 12:30 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 2:00 AM EST
Scattered 25,000'
Scattered 2,500'
6sm
Calm
MVFR
2:00 AM EST - 4:00 AM EST
Mist
Few 500'
4sm
Calm
LIFR
Temporary 4:00 AM EST - 8:00 AM EST
Fog
Obscured
0.5sm
Calm
IFR
4:00 AM EST - 9:00 AM EST
Mist
Broken 500'
1sm
Calm
VFR
9:00 AM EST - 1:00 AM EST
Scattered 25,000'
Few 4,000'
6sm
210° 5kts
TAF KDNL 040530Z 0406/0506 00000KT P6SM SCT025 SCT250
   FM040700 00000KT 4SM BR FEW005
   FM040900 00000KT 1SM BR BKN005
   TEMPO 0409/0413 1/2SM FG VV001
   FM041400 21005KT P6SM FEW040 SCT250
KDNL
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1300Z
3/4/26
1800Z
!DNL 03/006 DNL OBST CRANE (ASN UNKNOWN) 332815N0820259W (.11NM NE DNL) 529FT (100FT AGL) FLAGGED NOT LGTD 2603041300-2603041800
3/4/26
1200Z
3/5/26
2200Z
!DNL 03/002 DNL OBST CRANE (ASN UNKNOWN) 332801N0820242W (0.4NM E DNL) 460FT (100FT AGL) FLAGGED NOT LGTD DLY 1200-2200 2603041200-2603052200
3/3/26
0611Z
3/18/26
0511Z
!DNL 03/004 DNL OBST TOWER LGT (ASR 1235014) 332907.70N0821206.50W (8.2NM W DNL) 904.9FT (500.0FT AGL) U/S 2603030611-2603180511
3/1/26
0319Z
3/16/26
0219Z
!DNL 03/001 DNL OBST TOWER LGT (ASR 1243982) 333409.40N0820734.10W (7.5NM NW DNL) 512.1FT (257.9FT AGL) U/S 2603010319-2603160219
2/26/26
2118Z
3/6/26
2100Z
!DNL 02/027 DNL COM REMOTE COM OUTLET 122.3 U/S 2602262118-2603062100
2/26/26
1210Z
5/27/26
0500Z
!DNL 02/026 DNL OBST TOWER LGT (ASR 1213305) 332713.60N0815623.10W (5.0NM E DNL) 335.0FT (210.0FT AGL) U/S 2602261210-2605270500
2/24/26
0514Z
4/10/26
0513Z
!DNL 02/024 DNL OBST TOWER LGT (ASR 1022439) 333044.00N0820447.00W (3.4NM NW DNL) 809.7FT (446.9FT AGL) U/S 2602240514-2604100513
2/19/26
1651Z
5/20/26
0500Z
!DNL 02/020 DNL OBST TOWER LGT (ASR 1063568) 333337.00N0820314.00W (5.7NM N DNL) 525.9FT (294.9FT AGL) U/S 2602191651-2605200500
2/3/26
1040Z
6/3/26
1040Z
!DNL 02/008 DNL OBST TOWER LGT (ASR 1225418) 332418.80N0821528.80W (11.6NM WSW DNL) 761.2FT (268.0FT AGL) U/S 2602031040-2606031040
12/12/25
1824Z
Runway!DNL 12/004 DNL RWY 23 PAPI U/S 2512121824-2605132111EST
9/30/25
1547Z
Runway!DNL 09/037 DNL RWY 23 RWY END ID LGT U/S 2509301547-2603312111EST
9/30/25
1546Z
Runway!DNL 09/036 DNL RWY 05 RWY END ID LGT U/S 2509301546-2603312111EST
FDC
9/10/24
1833Z
!FDC 4/3381 DNL IAP DANIEL FLD, AUGUSTA, GA.
RNAV (GPS) RWY 5, ORIG...
CIRCLING RWY 11, 23, 29 NA AT NIGHT.
2409101833-2609221833EST
No
0700-DUSK
AUGUSTA-RICHMOND CO
535 TELFAIR STREET
AUGUSTA, GA 30901
Phone: (706) 821-2300
STEVE GAY, PRES
AUGUSTA AVIATION (FBO) 1775 HIGHLAND AVE
AUGUSTA, GA 30904
Phone: 706-733-8970
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
DNL
--
ACTVT REIL RWY 05, 11, 23; PAPI RWY 05, 11, & 23; MIRL RWY 05/23 & 11/29 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

4002 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 46°226°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 27' 39"N 33° 28' 07"N
Longitude 82° 02' 37"W 82° 02' 03"W
Elevation 374' 422'
Threshold Crossing Height 30 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

3733 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 104°284°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 28' 11"N 33° 28' 02"N
Longitude 82° 02' 45"W 82° 02' 02"W
Elevation 421' 419'
Threshold Crossing Height 54 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-1PILOTS SHOULD BE ALERT FOR TURBO-JET TFC TRANSITING THE TFC AREA ENR TO BUSH FLD 6 MILES SOUTH.
A43-11RWY 11 PAPI UNUSBL BYD 3 DEG LEFT OF RWY CNTRLN, PAPI IS BAFFLED.
A57-05APCH RATIO 50:1 TO DSPLCD THLD.
A57-11APCH RATIO 0:1 TO DSPLCD THLD; 20 FT ROAD/FENCE AT DSPLCD THLD & 245 FT LEFT.
A57-23APCH RATIO 16:1 TO DSPLCD THLD; 34FT LIGHT POLE, 577 FT FROM THLD, 213 FT RIGHT.
A57-29APCH RATIO 13:1 TO DSPLCD THLD; +55 FT TREES 715 FT FROM THLD, 139 FT LEFT.
A58-116 FT FENCE 190 FT FM THLD 94 FT RIGHT.
A58-236 FT FENCE 190 FT FM THLD 125 FT RIGHT.
A81-APTACTVT REIL RWY 05, 11, 23; PAPI RWY 05, 11, & 23; MIRL RWY 05/23 & 11/29 - CTAF.
E111EXISTED PRIOR TO 1959.
DANIEL FLD (ICAO: KDNL, IATA: DNL) is a public airport located in AUGUSTA, GA, US.
