iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDNA
DONA ANA COUNTY INTL JETPORT
PublicPUB

4 miles NW of SANTA TERESA, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 52' 50"N 106° 42' 12"W
4113' MSL
5113' MSL
11E
JET A-1+, 100LL
ALBUQUERQUE (ABQ)
EL PASO
ALBUQUERQUE (ZAB)
10/31/24-11/28/24
KDNA VFR
4:55 AM MST
Clear
10sm
36°F
27°F
30.10"Hg
Calm
AO2
KDNA 091155Z AUTO 10SM CLR 02/M03 A3010 RMK AO2
Add Your Business

KDNA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

AWOS-3PT

AWOS-3PT
575-589-2643
 124.175

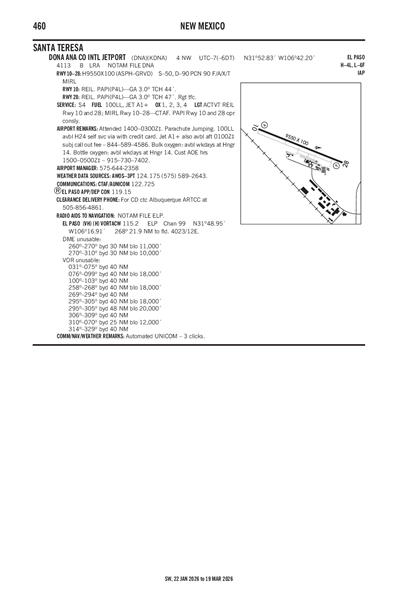

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBIF (17nm)
Fri, 11/8 9:00 PM MST
Fri, 11/8 9:00 PM MST - Sun, 11/10 3:00 AM MST
VFR
9:00 PM MST - 3:00 AM MST
Sky Clear
6sm
30.03"Hg
VRB° 6kts
TAF KBIF 090400Z 0904/1010 VRB06KT 9999 SKC QNH3003INS TX16/0922Z TN01/0912Z
KDNA
Domestic
10/23/241927Z !ABQ 10/200 DNA TWY A BTN TWY A1 AND TWY A3 CLSD 2410231927-2411152300
10/15/241723Z !ABQ 10/134 DNA TWY A LGT U/S 2410151723-2411152300
10/2/241616Z !ABQ 10/013 DNA OBST TOWER LGT (ASR 1277546) 320904.70N1063032.50W (18.9NM NNE DNA) 4288.1FT (184.1FT AGL) U/S 2410021616-2411161715
9/26/241723Z !ABQ 09/301 DNA RWY 10 PAPI U/S 2409261723-2412162259
9/26/241713Z !ABQ 09/298 DNA AD AP WINDCONE FOR RWY 28 U/S 2409261713-2412162259
9/26/241712Z !ABQ 09/297 DNA RWY 28 PAPI U/S 2409261712-2412162259
9/26/241711Z !ABQ 09/296 DNA TWY ALL SFC MARKINGS NOT STD 2409261711-2412162259
9/26/241708Z !ABQ 09/295 DNA AD AP WINDCONE FOR RWY 10 U/S 2409261708-2412162259
9/1/241751Z !ABQ 09/003 DNA AIRSPACE MOORED BALLOON WI AN AREA DEFINED AS 1NM RADIUS OF 314908N1064156W 9 (4.1NM S DNA) 7200FT (3000FT AGL)
FLAGGED AND LGTD 2409011751-2509011748
No
0700-2000
DONA ANA COUNTY
845 N. MOTEL
LAS CRUCES, NM 88007
Phone: 575-647-7200
BILL PROVANCE
8014 AIRPORT RD.
SANTA TERESA, NM 88008
Phone: 575-644-2358
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 10/28

9550 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
90 /F/A/X/T
50,000lbs
90,000lbs
--
--
  Runway 10 Runway 28
True Heading 112°292°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 53' 07"N 31° 52' 32"N
Longitude 106° 43' 03"W 106° 41' 20"W
Elevation 4,111' 4,110'
Threshold Crossing Height 43 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
DONA ANA COUNTY INTL JETPORT (ICAO: KDNA, IATA: DNA) is a public airport located in SANTA TERESA, NM.
