iFlightPlanner



...

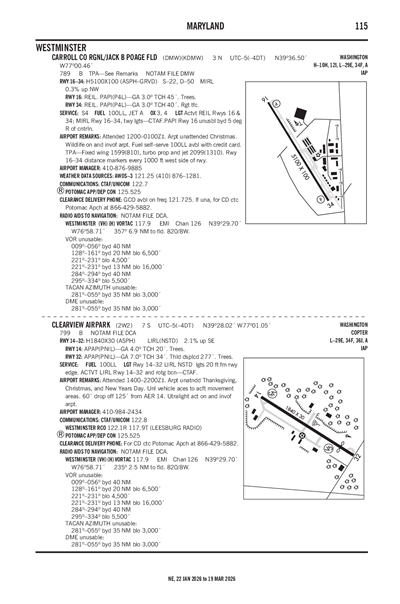

CARROLL COUNTY RGNL/JACK B POAGE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDMW
ICAO KDMWIATA DMWLocal DMW
CARROLL COUNTY RGNL/JACK B POAGE FLD
PublicPUB

3 miles N of WESTMINSTER, MD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 36' 30"N 77° 00' 28"W
Elevation
789' MSL
Pattern Alt
1789' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KDMW MVFR
10:55 PM EST
Light Rain
Overcast 4,800'
Broken 4,100'
Scattered 300'
4sm
39°F
32°F
30.20"Hg
210° 5kts
AO2
METAR KDMW 040355Z AUTO 21005KT 4SM -RA SCT003 BKN041 OVC048 04/ A3020 RMK AO2
+ Add Your Business

KDMW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.25
(410) 876-1281

Common

CTAF 122.7
ACTVT REIL RWYS 16 & 34; MIRL RWY 16/34; TWY LGTS - CTAF.
UNICOM 122.7

Arrival

RAVNN STAR 128.35
TRSTN STAR 126.75

Approach

POTOMAC APPROACH 125.525

Departure

POTOMAC DEPARTURE 125.525
TERPZ DP 125.525

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725. IF UNA, FOR CD CTC POTOMAC APCH AT 866-429-5882.

Terminal Area Forecast

KBWI (30nm)
Tue, 3/3 9:59 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 1:00 AM EST
LIFR
10:00 PM EST - 1:00 AM EST
Light Rain and Mist
Overcast 400'
3sm
230° 3kts
MVFR
1:00 AM EST - 7:00 AM EST
Light Rain and Mist
Overcast 1,000'
N/A
Calm
IFR
1:00 AM EST - 7:00 AM EST
Mist
Overcast 600'
Scattered 400'
5sm
220° 5kts
MVFR
7:00 AM EST - 4:00 PM EST
Overcast 1,000'
Scattered 500'
6sm
040° 3kts
IFR
10:00 AM EST - 4:00 PM EST
Light Showers and Rain and Mist
Overcast 500'
5sm
Calm
MVFR
4:00 PM EST - 10:00 PM EST
Light Showers and Rain and Mist
Overcast 1,000'
Scattered 500'
5sm
080° 3kts
IFR
10:00 PM EST - 1:00 AM EST
Light Showers and Rain and Mist
Overcast 500'
3sm
110° 2kts
TAF KBWI 040259Z 0403/0506 23003KT 3SM -RA BR OVC004 WS020/22035KT
   FM040600 22005KT 5SM BR SCT004 OVC006
   PROB30 0406/0412 -RA BR OVC010
   FM041200 04003KT P6SM SCT005 OVC010
   PROB30 0415/0421 5SM -SHRA BR OVC005
   FM042100 08003KT 5SM -SHRA BR SCT005 OVC010
   FM050300 11002KT 3SM -SHRA BR OVC005
KDMW
EffectiveExpiresCategoryNOTAM
Domestic
12/23/25
1315Z
3/24/26
0500Z
!DMW 12/006 DMW OBST TOWER LGT (ASR 1210494) 394055.30N0770216.20W (4.6NM NNW DMW) 1011.2FT (255.9FT AGL) U/S 2512231315-2603240500
9/4/25
1631Z
!DMW 09/001 DMW AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041631-PERM
6/26/25
1524Z
6/30/26
2359Z
!DMW 06/003 DMW OBST TOWER LGT (ASR 1040029) 393659.00N0765137.00W (6.8NM E DMW) 1599.1FT (724.1FT AGL) U/S 2506261524-2606302359
FDC
2/2/26
1525Z
!FDC 6/9500 DMW IAP CARROLL COUNTY RGNL/JACK B POAGE FLD, WESTMINSTER, MD.
VOR RWY 34, AMDT 4C...
PROCEDURE NA.
EMI VOR R-178 UNUSABLE.
2602021525-2802021525EST
8/9/24
1652Z
!FDC 4/5979 DMW SID CARROLL COUNTY RGNL/JACK B POAGE FLD, WESTMINSTER, MD.
TERPZ EIGHT DEPARTURE (RNAV)...
DO NOT FILE CLTCH TRANSITION, ATC ASSIGNED ONLY.
2408091652-2608091652EST
No
0700-2000
CARROLL COUNTY COMM
225 N CENTER ST. RM. 300
WESTMINSTER, MD 21157
Phone: 410-386-2044
M. DEAN LEISTER
200 AIRPORT DRIVE BOX 8
WESTMINSTER, MD 21157
Phone: 410-876-9885
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DMW
--
ACTVT REIL RWYS 16 & 34; MIRL RWY 16/34; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16/34

5100 ft. x 100 ft.
ASPH
Fair
GRVD
MED

22,000lbs
50,000lbs
--
--
  Runway 16 Runway 34
True Heading 148°328°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 36' 51"N 39° 36' 08"N
Longitude 77° 00' 45"W 77° 00' 10"W
Elevation 789' 774'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1ARPT UNATNDD CHRISTMAS.
A110-100GCO AVBL ON FREQ 121.725. IF UNA, FOR CD CTC POTOMAC APCH AT 866-429-5882.
A110-3WILDLIFE ON & INVOF ARPT.
A30-16/34DISTANCE MARKERS EVERY 1000 FT WEST SIDE OF RWY.
A43-16PAPI RWY 16 UNUSBL BYD 5 DEGS R OF CNTRLN.
A70-100LLSELF SERVE 100LL AVAILABLE WITH CREDIT CARD.
A81-APTACTVT REIL RWYS 16 & 34; MIRL RWY 16/34; TWY LGTS - CTAF.
E147TPA FIXED WING 810 FT, TURBO PROP & JET 1310 FT.
CARROLL COUNTY RGNL/JACK B POAGE FLD (ICAO: KDMW, IATA: DMW) is a public airport located in WESTMINSTER, MD, US.
