iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDMO
SEDALIA RGNL
PublicPUB

2 miles E of SEDALIA, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 42' 27"N 93° 10' 33"W
910' MSL
1910' MSL
03E
JET A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
4/17/25-5/15/25
KDMO LIFR
5:53 AM CDT
Mist
Overcast 9,000'
Broken 100'
0.75sm
64°F
63°F
30.20"Hg
110° 3kts
AO2 SLP222 T01780172
METAR KDMO 141053Z AUTO 11003KT 3/4SM BR BKN001 OVC090 18/17 A3020 RMK AO2 SLP222 T01780172
+ Add Your Business

KDMO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
660-826-8225
 120.525

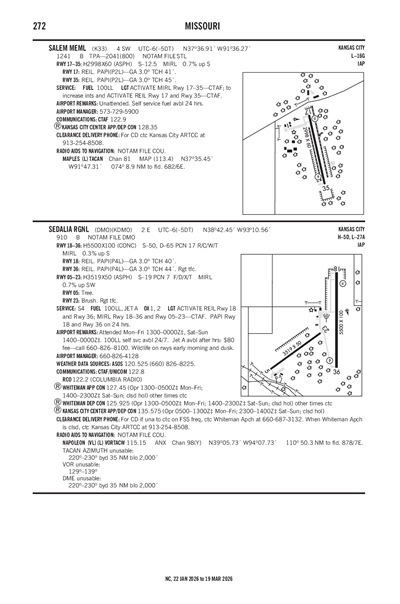

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSZL (18nm)
Tue, 10/14 6:00 AM CDT
Tue, 10/14 6:00 AM CDT - Wed, 10/15 12:00 PM CDT
VFR
Becoming 10:00 AM CDT - 12:00 PM CDT
Broken 7,000'
6sm
30.18"Hg
180° 6kts
MVFR
6:00 AM CDT - 10:00 AM CDT
Mist
Overcast 7,000'
Few 1,000'
4.97sm
30.18"Hg
180° 6kts
TAF KSZL 141100Z 1411/1517 18006KT 8000 BR FEW010 OVC070 QNH3019INS
   BECMG 1415/1416 18006KT 9999 NSW BKN070 QNH3018INS TX25/1421Z TN17/1411Z
KDMO
EffectiveExpiresCategoryNOTAM
Domestic
10/14/25
1900Z
10/14/25
2300Z
!DMO 10/004 DMO COM REMOTE COM OUTLET 122.2 U/S 2510141900-2510142300
10/11/25
1500Z
10/11/25
1834Z
!DMO 10/003 DMO AIRSPACE UNMANNED FREE BALLOON 384137N0931543W (3.8NM SW DMO) SFC-FL950 SEB 2510111500-2510111834
10/1/25
1736Z
11/15/25
1735Z
!DMO 10/001 DMO OBST TOWER LGT (ASR 1209473) 383921.10N0925427.70W (12.9NM ESE DMO) 1378.0FT (500.0FT AGL) U/S 2510011736-2511151735
9/2/25
1700Z
12/2/25
2359Z
!DMO 09/001 DMO OBST TOWER LGT (ASR 1257316) 383449.50N0931531.60W (8.6NM SSW DMO) 1202.4FT (264.8FT AGL) U/S 2509021700-2512022359
7/29/25
0417Z
10/28/25
2359Z
!DMO 07/012 DMO OBST TOWER LGT (ASR 1249260) 384559.00N0932518.00W (12.0NM WNW DMO) 1120.4FT (264.4FT AGL) U/S 2507290417-2510282359
FDC
6/30/25
2039Z
!FDC 5/0945 DMO IAP SEDALIA RGNL, SEDALIA, MO.
RNAV (GPS) RWY 36, AMDT 2A...
LPV DA 1154/HAT 252 ALL CATS. DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/ TCH 44). CHANGE NOTE TO READ: BARO-VNAV NA WHEN USING WHITEMAN AFB ALTIMETER SETTING.
2506302039-2706302039EST
No
MON-FRI 0700-1800
SAT-SUN 0800-1800
CITY OF SEDALIA
200 S. OSAGE
SEDALIA, MO 65301
Phone: 660-827-3000
DERRICK DODSON
1900 E BOONEVILLE
SEDALIA, MO 65301
Phone: 660-826-4128
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
DMO
--
ACTVT REIL RWY 18 & 36; MIRL RWY 18/36 & 05/23 - CTAF. PAPI RWY 18 & 36 ON 24 HRS.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 05/23

3519 ft. x 50 ft.
ASPH
Fair
NONE
MED
7 /F/D/X/T
19,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 54°234°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 42' 06"N 38° 42' 26"N
Longitude 93° 11' 10"W 93° 10' 33"W
Elevation 910' 884'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5500 ft. x 100 ft.
CONC
Excellent
NONE
MED
17 /R/C/W/T
50,000lbs
65,000lbs
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 43' 01"N 38° 42' 06"N
Longitude 93° 10' 21"W 93° 10' 23"W
Elevation 882' 900'
Threshold Crossing Height 40 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE ON RYS EARLY MORNING & DUSK.
A110-2100LL SELF SERVICE AVBL 24/7
A110-3JET A AVBL AFTER HOURS - $80 FEE - CALL 660-826-8100
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
SEDALIA RGNL (ICAO: KDMO, IATA: DMO) is a public airport located in SEDALIA, MO.
