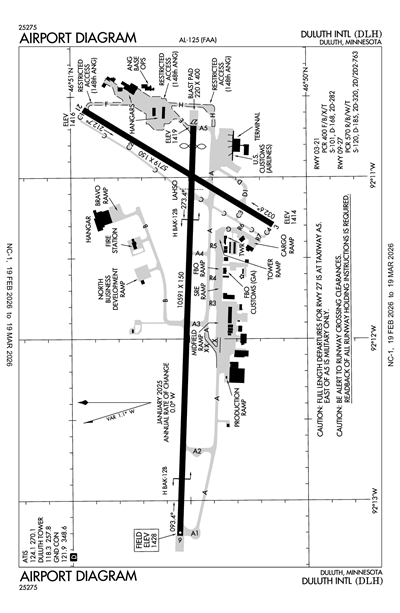

DULUTH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLH
ICAO KDLHIATA DLHLocal DLH
DULUTH INTL
PublicPUB

5 miles NW of DULUTH, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 50' 31"N 92° 11' 36"W
Elevation
1428' MSL
Pattern Alt
2428' MSL
Mag Variation
1°W
Declination
1°W
Fuel
JET A, 100LL, JP-8
FSS
PRINCETON (PNM)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KDLH MVFR
5:55 AM CST
Mist
Overcast 1,300'
3sm
35°F
34°F
30.10"Hg
200° 6kts
AO2 SLP208 T00170011 10022 20006 55003 $
METAR KDLH 041155Z 20006KT 3SM BR OVC013 02/01 A3010 RMK AO2 SLP208 T00170011 10022 20006 55003 $
+ Add Your Business

KDLH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.1
ASOS (218) 208-0194

Common

UNICOM 122.95

Ground

DULUTH GROUND 121.9

Tower

DULUTH TOWER 118.3

Approach

DULUTH APPROACH 125.45
DULUTH APPROACH 125.45
Initial Contact

Departure

DULUTH DEPARTURE 125.45
Initial Contact
DULUTH DEPARTURE 125.45

Flight Service

Flight Service 122.5
(PNM)

Emergency

Emergency 121.5

Military

ANG COMD POST 139.9

Terminal Area Forecast

KDLH
Wed, 3/4 5:30 AM CST
Wed, 3/4 6:00 AM CST - Thu, 3/5 6:00 AM CST
MVFR
6:00 AM CST - 10:00 AM CST
Mist
Broken 1,100'
3sm
240° 6kts
MVFR
10:00 AM CST - 12:00 PM CST
Broken 1,300'
6sm
220° 8kts
Gusts 16kts
VFR
12:00 PM CST - 7:00 PM CST
Broken 4,500'
6sm
220° 9kts
Gusts 18kts
MVFR
7:00 PM CST - 11:00 PM CST
Broken 2,500'
6sm
170° 6kts
LIFR
11:00 PM CST - 6:00 AM CST
Mist
Overcast 300'
1sm
090° 10kts
Gusts 20kts
TAF KDLH 041130Z 0412/0512 24006KT 3SM BR BKN011
   FM041600 22008G16KT P6SM BKN013
   FM041800 22009G18KT P6SM BKN045
   FM050100 17006KT P6SM BKN025
   FM050500 09010G20KT 1SM BR OVC003
KDLH
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
2018Z
3/31/26
2359Z
!DLH 02/279 DLH OBST TOWER LGT (ASR 1031880) 464715.00N0920722.00W (4.4NM SE DLH) 2043.3FT (838.3FT AGL) U/S 2602282018-2603312359
2/22/26
1110Z
4/8/26
1109Z
!DLH 02/197 DLH OBST TOWER LGT (ASR 1203847) 464737.00N0920704.00W (4.3NM SE DLH) 2025.9FT (789.0FT AGL) U/S 2602221110-2604081109
2/14/26
0309Z
3/14/26
2359Z
!DLH 02/108 DLH OBST TOWER LGT (ASR 1023509) 464741.00N0920706.00W (4.2NM SE DLH) 1777.9FT (503.0FT AGL) U/S 2602140309-2603142359
2/13/26
0246Z
!DLH 02/103 DLH NAV ILS RWY 27 GP NOT MNT 2602130246-2603062000EST
1/29/26
2341Z
!DLH 01/394 DLH NAV ILS RWY 09 IM U/S 2601292341-2603272000EST
1/29/26
2338Z
!DLH 01/393 DLH NAV ILS RWY 09 OM U/S 2601292338-2603272111EST
1/29/26
0931Z
!DLH 01/381 DLH NAV ILS RWY 27 OM U/S 2601290931-2608212111EST
1/15/26
2003Z
!DLH 01/220 DLH NAV ILS RWY 09 PYKLA LOM U/S 2601152003-2609302000EST
FDC
12/7/25
2238Z
!FDC 5/5777 DLH IAP U.S. DOD DULUTH INTL, DULUTH, MN.
HI-TACAN Z RWY 9, AMDT 3A...
ILS OR LOC RWY 27, AMDT 11...
RADAR-1, ORIG-A...
RNAV (GPS) RWY 27, AMDT 1...
RNAV (GPS) RWY 3, ORIG-B...
RNAV (GPS) RWY 9, AMDT 1D...
VOR OR TACAN RWY 3, AMDT 21B...
VOR/DME OR TACAN RWY 21, AMDT 15A...
CIRCLING CATS A/B MDA 1940/HAA 512. TEMPORARY CRANE 1584 MSL 4508 FT N OF RWY 03 (2025- AGL 3636 THRU 3629-NRA).
2512072238-2607192355EST
12/7/25
2233Z
!FDC 5/5775 DLH IAP DULUTH INTL, DULUTH, MN.
RNAV (GPS) RWY 21, ORIG-B...
LNAV MDA 1900/HAT 480 ALL CATS. VIS CATS C/D 1 3/8. CIRCLING MDA 1940/HAA 512 CATS A/B. TEMPORARY CRANE 1584 MSL 4508 FT N OF RWY 03 (2025-AGL-3626 THRU 3629-NRA).
2512072233-2607192355EST
12/5/25
1935Z
!FDC 5/5524 DLH IAP DULUTH INTL, DULUTH, MN.
ILS OR LOC RWY 27, AMDT 11...
ILS OR LOC RWY 9, AMDT 22B...
VOR OR TACAN RWY 3, AMDT 21B...
ILS RWY 9 (SA CAT I), AMDT 22B...
ILS RWY 9 (CAT II), AMDT 22B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HIB VOR OUT OF SERVICE. 2512051935-2607171935EST
8/21/25
1413Z
!FDC 5/1106 DLH IAP DULUTH INTL, DULUTH, MN.
ILS OR LOC RWY 9, AMDT 22B...
ILS RWY 9 (SA CAT I), AMDT 22B...
ILS RWY 9 (CAT II), AMDT 22B...
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PYKLA (DL) LOM OUT OF SERVICE. 2508211413-2604021413EST
5/19/25
0211Z
!FDC 5/2478 DLH IAP DULUTH INTL, DULUTH, MN.
RNAV (GPS) RWY 3, ORIG-B...
LNAV MDA 1900/HAT 480 ALL CATS. VIS CAT C/D 1 3/8. CIRCLING CAT A/B 1920/HAA 492.
2505190211-2705190211EST
5/16/25
1323Z
!FDC 5/1829 DLH IAP DULUTH INTL, DULUTH, MN.
RNAV (GPS) RWY 9, AMDT 1D...
LNAV MDA 1920/HAT 492 ALL CATS, LNAV VIS CAT C RVR 5000, CIRCLING CAT A/B MDA 1920/HAA 492..
2505161323-2705261323EST
Military
2/23/26
1826Z
3/8/26
2200Z
Taxiway!KDLH M0017/26 DLH TWY H APCH AREA HLDG PSN SIGN NORTH SIDE NOT LGTD 2602231826-2603082200
2/23/26
1823Z
3/8/26
2200Z
Taxiway!KDLH M0016/26 DLH TWY H LOCATION SIGN NORTH SIDE NOT LGTD 2602231823-2603082200
2/23/26
1817Z
3/8/26
2200Z
Taxiway!KDLH M0015/26 DLH TWY E RWY APCH BDRY SIGN NOT LGTD 2602231817-2603082200
Yes
ALL
CITY OF DULUTH, MINNESOTA
4701 GRINDEN DR
DULUTH, MN 55811
Phone: 218-625-7766
MARK PAPKO, DIRECTOR OF OPERATIONS
4701 GRINDEN DR
DULUTH, MN 55811
Phone: 218-727-2968
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
DLH
--
--
N/A
Yes
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5719 ft. x 150 ft.
ASPH
Good
GRVD
MED

101,000lbs
168,000lbs
282,000lbs
--
  Runway 03 Runway 21
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 50' 09"N 46° 50' 57"N
Longitude 92° 11' 18"W 92° 10' 35"W
Elevation 1,414' 1,416'
Threshold Crossing Height 39 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 09/27

10591 ft. x 150 ft.
CONC
Fair
GRVD
HIGH

120,000lbs
185,000lbs
320,000lbs
763,000lbs
  Runway 09 Runway 27
True Heading 92°272°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 46° 50' 33"N 46° 50' 29"N
Longitude 92° 13' 13"W 92° 10' 41"W
Elevation 1,428' 1,419'
Threshold Crossing Height 70 ft. AGL 91 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11JASU: 9(AM32A-60) 2(A/M32A-86) 2(MC-11) 6(MC-2A) (MIL).
A110-13SP DE-ICE LHOX LHNIT.
A110-14OIL: O-148(MIL). JOAP.
A110-20CAUTION: BIRD HAZ. (PHASE II CONDITIONS) EXISTS DUR 1 SEP THRU 31 OCT. CTC SOF/AFLD MGR/COMD POST FOR INFO.
A110-25FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-30TAXI LANE G MAY BE USED AS ALTERNATE TAXI ROUTE.
A110-32FUEL: A+, J8 (MONACO AIR DULUTH, C218-727-2911.) (NC-100LL, A). A++(MIL) (ANG, C218-788-7340).
A110-33PPR ALL ACFT. OPR 1200-2130Z++ MON-FRI, EXC HOL AND FLEX DAYS. LTD OPR HR AND TRAN SVC AVBL. CTC AFLD MGT DSN 825-7252, C218-788-7252, OPS DESK DSN 825-7399, C218-788-7399, COMD POST DSN 825-7370/7371, C218-788-7370/7371. FTR ACFT AND C12/C21 CARGO ACFT MAY ENTER ANG RAMP VIA TWY E OR H. ALL OTHER NON-FTR ACFT USE TWY F TO ENTER ANG RAMP. PER GIANT REPORT, TWY F CURRENTLY RSTD TO ONLY C17/C130 ACFT. ALL OTHER CARGO AMC ACFT MUST PARK AT MIDFIELD RAMP. ALL TRAN ACFT WILL CTC COMD POST 15 MIN PRIOR TO LDG. TRAN ACFT WILL CTC COMD POST BEFORE ENGINE STARTUP AND BEFORE TAXI. NO SVC AVAILABLE WHEN WIND CHILL EXCEEDS OR IS FCST TO EXCEED -30-F. FOR RCR INFO, AFLD STATUS AND CRASH RESCUE CAPABILITY CTC COMD POST OR TWR. NONSTD MRK FOR ALERT/MAINT VEH, ACFT GND EQPT PRK SPOTS.
A110-34TWY C BTWN TWY A & D CLSD 1 OCT THRU 30 APR.
A110-35ACFT DEICE TYPE 1 & 4 FLUID AVBL - CTC FBO C218-727-2911.
A110-36US CUST INTL AOE (NO FEES) AVBL H24 C218-720-5203 THEN PRESS 0. CUST CLEARING LCTD AT FBO.
A110-37FOR MIL TSNT ACFT PRKG, RFLG, & SER OFF ANG CTC FBO C218-727-2977 H24.
A110-4HIGH SPEED MILITARY JET TRAFFIC NOT ON ADS-B OPERATING IN AND ABOVE CLASS D AIRSPACE FROM 3000' TO 11,500' MSL CTC DLH APP FOR TRFC ADZYS FOR TRANSIT RCMDD.
A110-6WHEN RWY 03/21 IN USE; TWY C NORTH OF RWY 09/27 MAY BE RESTRICTED BY ATC TO ACFT WITH WINGSPANS LESS THAN 49 FT.
A24LDG FEE FOR ALL COML ACFT & ALL ACFT OVR 12500 LB MAX LDG WT EXC ACFT OPRD OR CHTRD BY THE US GOVT OR THE STATE OF MINNESOTA.
A26ARFF INDEX D AVBL H24 WITH 2 HR PPR - CTC ANG 218-788-7434.
A30A-27CAUTION: WINDSHEAR/DOWNDRAFTS FINAL APCH.
A35-03/21WEIGHT BEARING STRENGTH - 2S127.
A35-09/27WEIGHT BEARING STRENGTH - 2S153.
A39-03/21PCR VALUE: 400/F/B/X/T
A39-09/27PCR VALUE: 570/R/B/W/T
A70-J8AVBL AT MIL & CIVIL FUELING FACILITIES.
E60-09_BAK-12TYPE H BAK-12B(B) 1470 FT.
E60-27_BAK-12TYPE H BAK 12B(B) 2544 FT.
DULUTH INTL (ICAO: KDLH, IATA: DLH) is a public airport located in DULUTH, MN, US.
