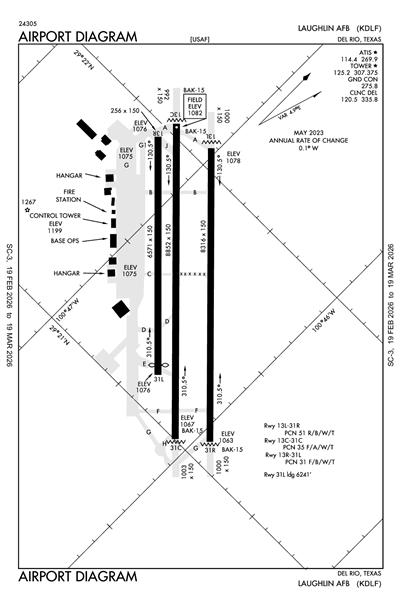

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLF
LAUGHLIN AFB
PrivatePVT

5 miles E of DEL RIO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 21' 34"N 100° 46' 41"W
1082' MSL
2082' MSL
07E
None Listed
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
7/11/24-8/8/24
KDLF MVFR
4:55 AM CDT
Overcast 1,300'
10sm
80°F
75°F
29.82"Hg
120° 11kts
AO2 SLP083 T02690237 $
KDLF 190955Z AUTO 12011KT 10SM OVC013 27/24 A2982 RMK AO2 SLP083 T02690237 $
Add Your Business

KDLF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: ATCT HOURS
 114.4

Approach/Departure

APCH/P DEP/P
 119.6

Clearance Delivery

CD/P
 120.5

Emergency

EMERG
 121.5

Tower

LCL/P
 125.2

Other

CLASS C
 119.6

Terminal Area Forecast

KDLF
Thu, 9/19 5:00 AM CDT
Thu, 9/19 5:00 AM CDT - Fri, 9/20 11:00 AM CDT
MVFR
5:00 AM CDT - 10:00 AM CDT
Broken 1,300'
6sm
29.82"Hg
110° 9kts
IFR
Temporary 6:00 AM CDT - 10:00 AM CDT
Broken 800'
N/A
Calm
MVFR
Becoming 10:00 AM CDT - 11:00 AM CDT
Broken 2,500'
Scattered 1,500'
6sm
29.91"Hg
130° 9kts
VFR
Becoming 11:00 AM CDT - 11:00 AM CDT
Scattered 3,000'
6sm
29.76"Hg
130° 10kts
Gusts 15kts
TAF KDLF 191000Z 1910/2016 11009KT 9999 BKN013 QNH2982INS
   TEMPO 1911/1915 BKN008
   BECMG 1915/1916 13009KT 9999 SCT015 BKN025 QNH2990INS
   BECMG 1916/1917 13010G15KT 9999 SCT030 QNH2975INS TX36/1922Z TN25/2010Z
KDLF
Military
9/20/241215Z AERODROME OPEN. APPROACH CONTROL AVAILABLE
9/18/241500Z 40 FT LIFT AT BLDG 508
9/18/241430Z 40 FT LIFT AT BLDG 309
9/18/241400Z 40 FT LIFT AT BLD 201
9/18/241330Z 40 FT LIFT AT BLDG 53
9/17/241313Z M0938/24 NOTAMC M0937/24
9/10/242213Z RWY 31C GS OTS
9/10/242212Z RWY 31 C LOCALIZER OTS
9/10/242212Z NORTH NAVAID CHECK POINT UNUSABLE
9/5/241330Z RWY 13R/31L MANDATORY HOLD SIGN TWY A WEST SIDE UNLIT
9/5/241328Z RWY 13L/31R DRM 1/7 WEST SIDE UNLIT
9/5/241326Z RWY 13L/31R DRM 1/7 EAST SIDE UNLIT
9/5/241323Z RWY 13C/31C DRM 1/7 EAST SIDE UNLIT
9/5/241320Z RWY 13C/31C DRM 7/1 WEST SIDE UNLIT
9/4/242020Z RWY 31L LDA 6241FT
8/4/241924Z FIRE FIGHTING AND RESCUE CAPABILITY IS 800 GALLONS
6/28/242146Z MANDATORY INST HOLD SIGNS MISSING AT TWY A AND TWY F BTWN RWY13C/31C AND RWY13L/31R
Yes
MON-FRI 1300-0100Z++
SUN 2000-2300Z++
CLSD TO ALL ACFT EXC EMERG OT, SAT AND HOL; OT BY NOTAM.
USAF
LAUGHLIN AFB
DEL RIO, TX 78840
COMMANDER
LAUGHLIN AFB
DEL RIO, TX 78840
Phone: 830-298-5308
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
DLF
Sunset to Sunrise
--
N/A
Yes
No
No
None
No
0
0
0
0
0
0
Major
Major
None
None
None

Runway 13C/31C

8852 ft. x 150 ft.

PEM
NONE
HIGH
35 /F/A/W/T
--
--
--
--
  Runway 13C Runway 31C
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 22' 03"N 29° 21' 00"N
Longitude 100° 47' 16"W 100° 46' 06"W
Elevation 1,081' 1,067'
Threshold Crossing Height 38 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13L/31R

8316 ft. x 150 ft.

PEM
NONE
HIGH
51 /R/B/W/T
--
--
--
--
  Runway 13L Runway 31R
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 22' 06"N 29° 21' 07"N
Longitude 100° 47' 04"W 100° 45' 58"W
Elevation 1,078' 1,063'
Threshold Crossing Height 40 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13R/31L

6571 ft. x 150 ft.

ASPH
NONE
MED
31 /F/B/W/T
--
--
--
--
  Runway 13R Runway 31L
True Heading 136°316°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 21' 57"N 29° 21' 11"N
Longitude 100° 47' 18"W 100° 46' 26"W
Elevation 1,076' 1,076'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RSTD: OVERHEAD APCH NOT AUTH FOR TRAN ACFT DUR STU TRNG OPR. EXP RADAR VECTORS FOR ILS, LOC OR STR-IN APCH AND FULL STOP LDG DUR STU TRNG.
A110-19SERVICE-LGT: RWY 13C-31C PAPI/ILS RPI' S NOT COINCIDENTAL.
A110-2CAUTION: ALL DEP ACFT CROSS 2 DME AT OR BLW 3000' TO ENSURE SEPARATION FR CIV CORRIDOR.
A110-20JASU: 1(MD-3M) 1(MA-1A) 1(MC-1A) 1(MC-11) 1(A/M32A-86).
A110-22FLUID: SP PRESAIR LHOX LOX.
A110-23OIL: O-148 SOAP.
A110-24RSTD: PPR, CTC BASE OPS DSN 732-5308, C830-298-5308.
A110-26MISC: CLASS C AIRSPACE EFF 1300-0100Z++ MON-FRI, 2000-2300Z++ SUN, EXC HOL; OT CLASS G.
A110-27MISC: CLASS E 700' AGL AND ABV.
A110-28MISC: ALL ACFT DEP VFR SHALL CTC CLNC DEL 335.8 FOR CLASS C AIRSPACE CLIMB OUT INST PRIOR TO TAXI. ACFT OPR WITHIN THE RSU PRACTICE AREA ARE NOT CLASS C PARTICIPANTS. RSU PRACTICE AREA DEFINED IN AP/1.
A110-32MISC: FIRST 300' RWY 13C/31C IS GROOVED CONCRETE, MIDDLE 8252' IS GROOVED ASPHALT.
A110-33CAUTION: TXWY J VFR DAYTIME ONLY, NO EDGE LIGHTS INSTALLED.
A110-34MISC: FIRST 1000' RWY 13L-31R GROOVED CONCRETE, MIDDLE 6315' GROOVED ASPHALT.
A110-35CAUTION: LGT WINDCONE 249' WEST RWY 13C CENTERLINE, SOUTH TWY A. LGT WINDCONE 211' WEST RWY 13C CENTERLINE, NORTH TWY E.
A110-37CAUTION: RUNWAY SUPERVISOR UNITS LOCATED 230' WEST OF RWY 13C ABEAM THE 7000' REMAINING MARKER; 236' WEST OF RWY 31C ABEAM THE 7000' REMAINING MARKER AND 221' EAST OF RWY 31R ABEAM THE 5500' REMAINING MARKER.
A110-38RSTD: RWY 31L - THLD DISPLD 330'; DO NOT LAND PRIOR TO RWY THLD, DISPLD THLD MAY BE USED FOR TAKEOFF ON RWY 31L AND LANDING ROLLOUT ON RWY 13R. RWY 13R - DO NOT USE OPPOSITE END DISPLD THLD FOR TAKEOFF COMPUTATIONS OR TAKEOFF ROLL.
A110-4A-GEAR: BAK-15 ON DEP END RWY 13C-31C AND RWY 13L-31R. OPPOSITE END APCH OVER RAISED BARRIER IS PROH.
A110-40RWY: RCR UNAVBL. RWY COND CODE (RWYCC) NOT RPTD. NO RWY SFC COND AVBL WHEN TWR CLSD.
A110-41RSTD: RWY 13R/31L FOR LCL USE ONLY.
A110-42RSTD: T-1 AND SMALLER ACFT ONLY ON TWYS B, C, D, E AND H.
A110-43RSTD: ALL ACFT CROSS DEP END OF ALL RWYS AT OR BLO 1600' MSL.
A110-44RSTD: ALL ACFT CROSS DEP END OF ALL RWYS AT OR BLW 1600' MSL FOR VMC DEP.
A110-45TFC PAT: DUE TO CLOSE PROXIMITY OF RWYS, ONCE ESTAB ON FINAL APCH, TRAN ACFT WILL REMAIN ALIGNED WITH RWY 13C-31C TO AVOID T-6 TFC LDG RWY 13R-31L AT 2100' AND TFC LDG RWY 13L-31R AT 2100'-2600'.
A110-46CAUTION: POTENTIAL TRANSIT/DIVERT UAS OPS WITHIN LCL TRML AREA.
A110-48SERVICE-FUEL: A++, A++100.
A110-49SERVICE-TRAN ALERT: OPR DURING AFLD HRS.
A110-50SERVICE-LGT: THREE SETS OF MISSING TWY END LGTS: INT OF TWY G & D, TWY G & E, AND TWY G AND F.
A110-51CAUTION: TWENTY-SEVEN SECURITY LGT POLES ALONG EDGE OF PRK APN HAVE NO OBST LGT.
A110-52RSTD: TWY G1 FOR USE BY T6 ACFT ONLY.
A110-54SERVICE-LGT: 4 MISSING RWY EDGE LGT ON RWY 13C/31C OPPOSITE INT WITH TWY J AND TWY D. 3 GROUPS TWY LGTS INSTL GREATER THAN 10' FR TWY EDGES: TWY B AND TWY G BOTH SIDES OF INT; TWY C AND TWY G BOTH SIDES OF INT; EAST SIDE TWY G ADJ APN. DOUBLE BLUE TWY ENTRANCE/EXIT LGT MISSING: TWY A AND RWY 13L/31R N SIDE; TWY A AND RWY 13R/31L S SIDE; TWY H AND RWY 13C/31C SW SIDE; TWY E AND RWY 13R/31L SW SIDE.
A110-55MISC: AIRFIELD OPNS DOES NOT HAVE ABILITY TO STORE COMSEC. COMMAND POST HAS LTD AVBL STORAGE. CTC COMMAND POST DSN732-5167, C830-298-5167.
A110-56MISC: FIRE FIGHTING CAPABILITIES MAX 2300 GAL.
A110-57MISC: WIDE-BODY ACFT (C17/C5) EXP 30 MIN OR LONGER SVC TIME DUE TO USE OF 1.5 HOSE.
A110-6NS ABTMT: AETC QUIET HR POLICY IN EFF 0400-1200Z++ DLY, NO TKOF, LO APCH OR TOUCH AND GO LDG.
A110-9RSTD: ALL ACFT WITH WG SPAN LARGER THAN C130 RSTD.
LAUGHLIN AFB (ICAO: KDLF, IATA: DLF) is a private airport located in DEL RIO, TX.
