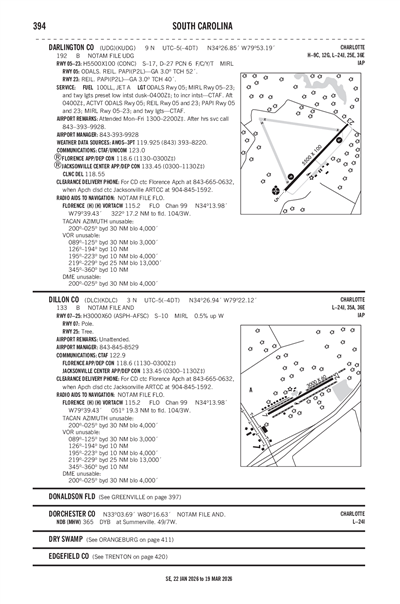

DILLON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDLC
ICAO KDLCIATA DLLLocal DLC
DILLON COUNTY
PublicPUB

3 miles N of DILLON, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 26' 57"N 79° 22' 07"W
Elevation
133' MSL
Pattern Alt
1133' MSL
Mag Variation
9°W
Declination
6°W
Fuel
None Listed
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KMAO (16nm) VFR
8:55 PM EST
Clear
10sm
63°F
59°F
30.25"Hg
170° 4kts
AO2
METAR KMAO 050155Z AUTO 17004KT 10SM CLR 17/15 A3025 RMK AO2
+ Add Your Business

KDLC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

FLORENCE APPROACH 118.6

Departure

FLORENCE DEPARTURE 118.6

Center

FLORENCE CENTER 133.45
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 133.45/306.3 (FLORENCE RCAG) WHEN FLORENCE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLBT (18nm)
Wed, 3/4 6:20 PM EST
Wed, 3/4 7:00 PM EST - Thu, 3/5 7:00 PM EST
VFR
7:00 PM EST - 10:00 PM EST
Scattered 25,000'
6sm
Calm
VFR
10:00 PM EST - 3:00 AM EST
Scattered 25,000'
6sm
180° 5kts
MVFR
3:00 AM EST - 10:00 AM EST
Mist
Broken 25,000'
Scattered 600'
5sm
VRB° 3kts
IFR
Temporary 5:00 AM EST - 8:00 AM EST
Mist
Overcast 600'
1sm
Calm
MVFR
10:00 AM EST - 2:00 PM EST
Broken 1,500'
6sm
220° 6kts
VFR
2:00 PM EST - 7:00 PM EST
Scattered 15,000'
6sm
230° 8kts
TAF KLBT 042320Z 0500/0524 00000KT P6SM SCT250
   FM050300 18005KT P6SM SCT250
   FM050800 VRB03KT 5SM BR SCT006 BKN250
   TEMPO 0510/0513 1SM BR OVC006
   FM051500 22006KT P6SM BKN015
   FM051900 23008KT P6SM SCT150
KDLC
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1324Z
7/1/26
1324Z
!AND 03/031 DLC OBST TOWER LGT (ASR 1216571) 342455.30N0792303.50W (2.2NM SSW DLC) 317.9FT (211.0FT AGL) U/S 2603031324-2607011324
3/3/26
1321Z
7/1/26
1321Z
!AND 03/029 DLC OBST TOWER LGT (ASR 1230441) 342134.70N0792646.90W (6.7NM SW DLC) 359.6FT (258.9FT AGL) U/S 2603031321-2607011321
3/3/26
1321Z
7/1/26
1321Z
!AND 03/028 DLC OBST TOWER LGT (ASR 1045346) 341959.60N0793222.30W (11.1NM SW DLC) 403.2FT (328.1FT AGL) U/S 2603031321-2607011321
2/25/26
0508Z
3/12/26
0408Z
!AND 02/389 DLC OBST TOWER LGT (ASR 1241304) 342024.30N0791057.90W (11.1NM SE DLC) 394.0FT (305.1FT AGL) U/S 2602250508-2603120408
2/12/26
1041Z
!AND 02/152 DLC OBST TOWER LGT (ASR 1041354) 342907.00N0791857.00W (3.4NM NE DLC) 490.2FT (350.1FT AGL) U/S 2602121041-2603141700EST
2/2/26
1831Z
5/1/26
2359Z
!AND 02/045 DLC AIRSPACE SEE ZDC 02/054, ZJX 02/020 UAS 2602021831-2605012359
1/27/26
2146Z
4/28/26
0500Z
!AND 01/315 DLC OBST TOWER LGT (ASR 1041454) 343217.00N0791450.00W (8.1NM NE DLC) 500.7FT (364.8FT AGL) U/S 2601272146-2604280500
No
UNATNDD
DILLON COUNTY
PO BOX 449
DILLON, SC 29536
Phone: (843) 774-1401
TIM HARPER
PO BOX 449
DILLON, SC 29536
Phone: 843-845-8529
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

3000 ft. x 60 ft.
ASPH
Fair
AFSC
MED

10,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 64°244°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 26' 50"N 34° 27' 03"N
Longitude 79° 22' 23"W 79° 21' 51"W
Elevation 133' 117'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC FLORENCE APCH AT 843-665-0632, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A58-25RWY 25 APCH HAS LINES OF TREES PARL TO THE RWY 135 FT BOTH SIDES OF CNTRLN.
DILLON COUNTY (ICAO: KDLC, IATA: DLC) is a public airport located in DILLON, SC, US.
