iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDIK
DICKINSON/THEODORE ROOSEVELT RGNL
PublicPUB

5 miles S of DICKINSON, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 48' 02"N 102° 48' 16"W
2592' MSL
3602' MSL
10E
JET A, 100LL
GRAND FORKS (GFK)
BILLINGS
MINNEAPOLIS (ZMP)
7/11/24-8/8/24
KDIK MVFR
3:56 AM MDT
Broken 2,400'
Broken 1,800'
10sm
59°F
56°F
29.55"Hg
260° 16kts
AO2 PK WND 25026/0917 SLP999 T01500133
KDIK 190956Z AUTO 26016KT 10SM BKN018 BKN024 15/13 A2955 RMK AO2 PK WND 25026/0917 SLP999 T01500133
Add Your Business

KDIK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
701-227-0280
 118.375

FAA A/FD Pages

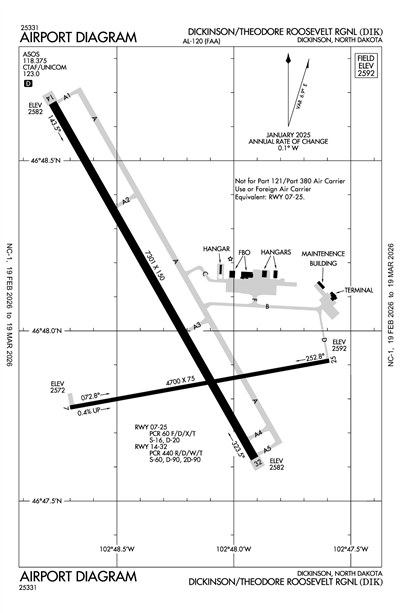

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDIK
Thu, 9/19 2:15 AM MDT
Thu, 9/19 2:00 AM MDT - Fri, 9/20 12:00 AM MDT
MVFR
2:00 AM MDT - 10:00 AM MDT
Broken 1,500'
6sm
250° 17kts
Gusts 25kts
MVFR
10:00 AM MDT - 1:00 PM MDT
Broken 2,500'
6sm
280° 22kts
Gusts 30kts
VFR
1:00 PM MDT - 8:00 PM MDT
Scattered 9,000'
6sm
280° 23kts
Gusts 33kts
VFR
8:00 PM MDT - 12:00 AM MDT
Few 25,000'
6sm
280° 11kts
Gusts 19kts
KDIK 190815Z 1908/2006 25017G25KT P6SM BKN015
   FM191600 28022G30KT P6SM BKN025
   FM191900 28023G33KT P6SM SCT090
   FM200200 28011G19KT P6SM FEW250
KDIK
Domestic
9/18/241500Z !DIK 09/064 DIK NAV ILS RWY 32 U/S 2409181500-2409181800
9/18/241430Z !DIK 09/063 DIK COM REMOTE COM OUTLET 122.2 U/S 2409181430-2409181700
9/18/240620Z !DIK 09/068 DIK TWY ALL FICON WET OBS AT 2409180619. 2409180620-2409190620
9/18/240619Z !DIK 09/067 DIK APRON ALL FICON WET OBS AT 2409180619. 2409180619-2409190619
9/18/240619Z !DIK 09/066 DIK RWY 14 FICON 5/5/5 100 PCT WET OBS AT 2409180619. 2409180619-2409190619
9/18/240618Z !DIK 09/065 DIK RWY 25 FICON 5/5/5 100 PCT WET OBS AT 2409180618. 2409180618-2409190618
9/17/240254Z !DIK 09/061 DIK TWY C LGT U/S 2409170254-2409202300
9/17/240253Z !DIK 09/060 DIK TWY B SIGNS LGT U/S 2409170253-2409202300
9/17/240253Z !DIK 09/059 DIK TWY C SIGNS LGT U/S 2409170253-2409202300
9/17/240253Z !DIK 09/058 DIK TWY D SIGNS LGT U/S 2409170253-2409202300
9/17/240253Z !DIK 09/056 DIK TWY D LGT U/S 2409170253-2409202300
9/17/240252Z !DIK 09/055 DIK TWY B LGT U/S 2409170252-2409202300
9/16/241458Z !DIK 09/049 DIK AD AP BIRD ACT 2409161458-2409202300
9/13/240246Z !DIK 09/023 DIK OBST TOWER LGT (ASR 1219501) 465305.00N1024303.90W (6.2NM NE DIK) 2849.1FT (349.1FT AGL) U/S 2409130246-2410280245
9/1/240436Z !DIK 09/001 DIK OBST TOWER LGT (ASR 1243212) 465322.40N1031348.10W (18.3NM WNW DIK) 3011.8FT (416.7FT AGL) U/S 2409010436-2410160435
8/10/242032Z !DIK 08/027 DIK OBST TOWER LGT (ASN 2018-AGL-11946-OE) 464440N1031621W (19.6NM W DIK) 3176FT (415FT AGL) U/S 2408102032-2409242031
FDC
9/18/241330Z !FDC 4/7173 DIK IAP DICKINSON/THEODORE ROOSEVELT RGNL, DICKINSON, ND.
ILS OR LOC RWY 32, ORIG...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DIK VORTAC OUT OF SERVICE. 2409181330-2409250102EST
No
0700-1600
FOR SVC AFT HRS CALL (701) 264-9966.
DICKINSON ARPT AUTHORITY
11120 42ND ST SW
DICKINSON, ND 58601-9282
Phone: 701-483-1062
KELLY BRAUN
11120 42ND ST SW
DICKINSON, ND 58601-9282
Phone: 701-483-1062
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
DIK
--
ACTVT MALSR RWY 32; REIL RWY 14, 07 & 25; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. PAPI RWY 07 & 25 OPR CONSLY SS-SR. MIRL RWY 07/25 PRESET ON LOW INTST DUSK-2200; TO INCR INTST AFT 2200 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
3
0
0
0
0
Major
Major
None
None
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 07/25

4700 ft. x 75 ft.
ASPH
Good
GRVD
MED
5 /F/D/W/T
16,000lbs
20,000lbs
--
--
  Runway 07 Runway 25
True Heading 80°260°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR GOOD
Latitude 46° 47' 46"N 46° 47' 55"N
Longitude 102° 48' 42"W 102° 47' 36"W
Elevation 2,572' 2,592'
Threshold Crossing Height 27 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

7301 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
25 /R/B/W/T
60,000lbs
90,000lbs
90,000lbs
--
  Runway 14 Runway 32
True Heading 150°330°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 46° 48' 40"N 46° 47' 38"N
Longitude 102° 48' 47"W 102° 47' 55"W
Elevation 2,582' 2,582'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-10HAYING OPNS ADJ TO ALL SFCS JUN - SEP.
A110-11CROP DUSTING OPNS INVOF ARPT.
A110-12PAEW ON MOVEMENT AREAS DURG WINTER (OCT-APR).
A110-14AIRFIELD SFC CONDS UNMON BTN 2300-0430.
A110-17FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-9CONC APRON FOR HEAVY ACFT PARKING.
DICKINSON/THEODORE ROOSEVELT RGNL (ICAO: KDIK, IATA: DIK) is a public airport located in DICKINSON, ND.
