iFlightPlanner



...

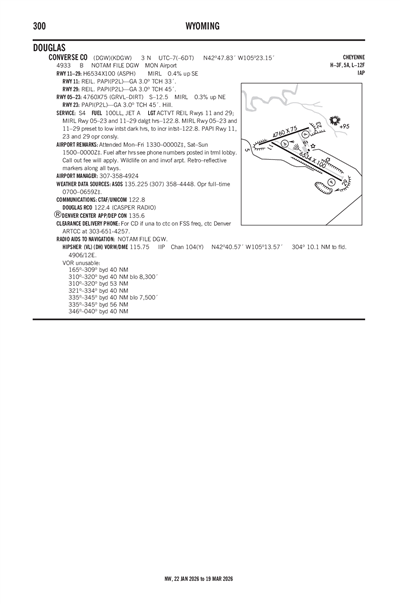

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDGW
CONVERSE COUNTY
PublicPUB

3 miles N of DOUGLAS, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 47' 50"N 105° 23' 09"W
4933' MSL
5933' MSL
11E
JET A, 100LL
CASPER (CPR)
CHEYENNE
DENVER (ZDV)
10/31/24-11/28/24
KDGW VFR
4:53 AM MST
Unknown Precipitation
Overcast 7,500'
Few 4,100'
8sm
35°F
35°F
29.96"Hg
340° 4kts
AO2 RAE49UPB49 SLP153 P0003 60011 70012 T00170017 10022 20017 56020
KDGW 091153Z AUTO 34004KT 8SM UP FEW041 OVC075 02/02 A2996 RMK AO2 RAE49UPB49 SLP153 P0003 60011 70012 T00170017 10022 20017 56020
Add Your Business

KDGW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
307-358-4448
 135.225

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUR (43nm)
Fri, 11/8 8:40 PM MST
Fri, 11/8 8:00 PM MST - Sat, 11/9 8:00 PM MST
IFR
8:00 PM MST - 11:00 AM MST
Drizzle and Mist
Overcast 1,400'
Broken 600'
4.97sm
30.18"Hg
VRB° 6kts
MVFR
Becoming 11:00 AM MST - 12:00 PM MST
Overcast 1,100'
6sm
29.91"Hg
320° 9kts
MVFR
Becoming 12:00 PM MST - 5:00 PM MST
Overcast 1,900'
Broken 1,100'
6sm
29.88"Hg
320° 12kts
MVFR
Becoming 5:00 PM MST - 7:00 PM MST
Light Rain
Overcast 1,900'
Broken 1,100'
Few 300'
5.59sm
29.88"Hg
VRB° 6kts
VFR
Becoming 7:00 PM MST - 8:00 PM MST
Overcast 4,500'
Few 2,800'
6sm
29.88"Hg
VRB° 6kts
TAF COR KGUR 090340Z 0903/1003 VRB06KT 8000 DZ BR BKN006 OVC014 QNH3017INS
   BECMG 0918/0919 32009KT 9999 NSW OVC011 QNH2991INS
   BECMG 0919/0920 32012KT 9999 BKN011 OVC019 QNH2989INS
   BECMG 1000/1001 VRB06KT 9000 -RA FEW003 BKN011 OVC019 QNH2988INS
   BECMG 1002/1003 VRB06KT 9999 NSW FEW028 OVC045 QNH2989INS TX06/0919Z TN02/0903Z LAST NO AMDS AFT 0903 NEXT 1105
KDGW
Domestic
11/5/240023Z !DGW 11/001 DGW OBST TOWER LGT (ASR 1061455) 430043.20N1051526.80W (14.1NM NNE DGW) 5236.9FT (294.9FT AGL) U/S 2411050023-2412042359
10/24/241356Z !DGW 10/004 DGW OBST TOWER LGT (ASN 2023-WTW-1884-OE) 430906N1053703W (23NM NW DGW) 5719FT (399FT AGL) U/S 2410241356-2412202359
10/24/241356Z !DGW 10/003 DGW OBST TOWER LGT (ASN 2023-WTW-1883-OE) 430917N1053705W (23.5NM NNW DGW) 5657FT (399FT AGL) U/S 2410241356-2412202359
No
MON-FRI 0630-1700
SAT-SUN 0800-1700
CONVERSE COUNTY
PO BOX 774
DOUGLAS, WY 82633
Phone: 307-358-4924
STEVE GOOD
P O BOX 774
DOUGLAS, WY 82633
Phone: 307-358-4924
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
DGW
--
ACTVT REIL RWYS 11 AND 29; MIRL RWY 05/23 &11/29 DALGT HRS - 122.8. MIRL RWY 05/23 & 11/29 PRESET TO LOW INTST DARK HRS, TO INCR INTST - 122.8. PAPI RWY 11, 23 & 29 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
None
None
None

Runway 05/23

4760 ft. x 75 ft.
GRVL DIRT
Good
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 67°247°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 47' 53"N 42° 48' 12"N
Longitude 105° 23' 55"W 105° 22' 56"W
Elevation 4,902' 4,914'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

6534 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 11 Runway 29
True Heading 118°298°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 47' 56"N 42° 47' 26"N
Longitude 105° 23' 36"W 105° 22' 18"W
Elevation 4,910' 4,933'
Threshold Crossing Height 33 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE ON & INVOF ARPT.
A110-2RETRO-REFLECTIVE MKRS ALG ALL TWYS.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
CONVERSE COUNTY (ICAO: KDGW, IATA: DGW) is a public airport located in DOUGLAS, WY.
