iFlightPlanner



...

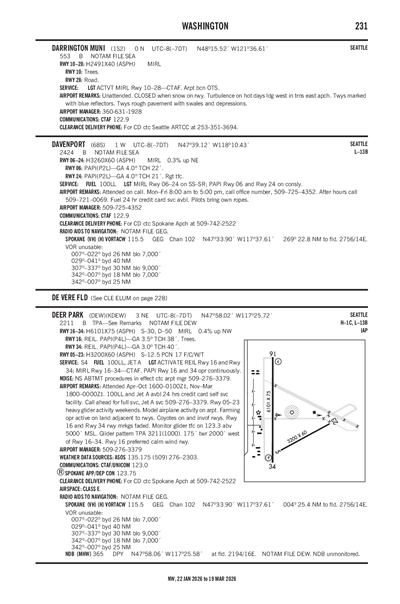

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDEW
DEER PARK
PublicPUB

3 miles NE of DEER PARK, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 58' 01"N 117° 25' 43"W
2211' MSL
3211' MSL
16E
JET A, 100LL
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KDEW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
509-276-2303
 135.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KDEW
Domestic
1/9/251932Z !DEW 01/027 DEW NAV DPY NDB U/S 2501091932-2503132000EST
No
APR-OCT 0800-1700
NOV-MAR 1000-1600
CITY OF DEER PARK
316 E. CRAWFORD
DEER PARK, WA 99006
Phone: 509-276-8802
DAROLD SCHULTZ
PO BOX F
DEER PARK, WA 99006
Phone: 509-276-3379
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
DEW
--
ACTVT REIL RWY 16 AND RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 05/23

3200 ft. x 60 ft.
ASPH
Good
NONE

17 /F/C/W/T
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 61°241°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 47° 57' 43"N 47° 57' 59"N
Longitude 117° 25' 46"W 117° 25' 05"W
Elevation 2,188' 2,183'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

6101 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 47° 58' 37"N 47° 57' 37"N
Longitude 117° 25' 52"W 117° 25' 52"W
Elevation 2,211' 2,186'
Threshold Crossing Height 38 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10MONITOR GLIDER TRAFFIC ON 123.3 ABOVE 5,000 FT MSL.
A110-11FOR CD CTC SPOKANE APCH AT 509-742-2522
A110-2MODEL AIRPLANE ACTIVITY ON ARPT.
A110-3COYOTES ON AND INVOF RUNWAYS.
A110-5RY 05/23 HEAVY GLIDER ACTIVITY ON WEEKENDS.
A110-6FARMING OPN ACTIVE ON LAND ADJACENT TO RYS.
A110-7NOISE ABATEMENT PROCEDURES IN EFFECT CTC AMGR 509-276-3379.
A110-8RY 16 PREFERRED CALM WIND RY.
A110-9175 FT TOWER 2000 FT W OF RY 16/34.
DEER PARK (ICAO: KDEW, IATA: DEW) is a public airport located in DEER PARK, WA.
