KDEN
DENVER INTL
PublicPUB

16 miles NE of DENVER, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 51' 42"N 104° 40' 23"W
5434' MSL
6434' MSL
08E
JET A, 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
7/11/24-8/8/24
KDEN VFR
4:53 AM MDT
Clear
10sm
47°F
29°F
30.02"Hg
170° 9kts
AO2 SLP096 T00831017 $
KDEN 191053Z 17009KT 10SM CLR 08/M02 A3002 RMK AO2 SLP096 T00831017 $
Add Your Business

KDEN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
303-342-0819
 125.6
D-ATIS
303-342-0819
 134.025

Clearance Delivery

CD/P
 118.75

Emergency

EMERG
 121.5

Ground

GND/P
WEST; RWY 07/25, RWY 16L/34R, RWY 16
 121.35
GND/P
RWY 08/26, 17L/35R, 17R/35L
 121.85

Tower

LCL/P
RWY 17R/35L
 124.3
LCL/P
RWY 07/25
 128.75
LCL/P
RWY 08/26, 17L/35R
 132.35
LCL/P
RWY 16L/34R, 16R/34L
 135.3

FAA A/FD Pages

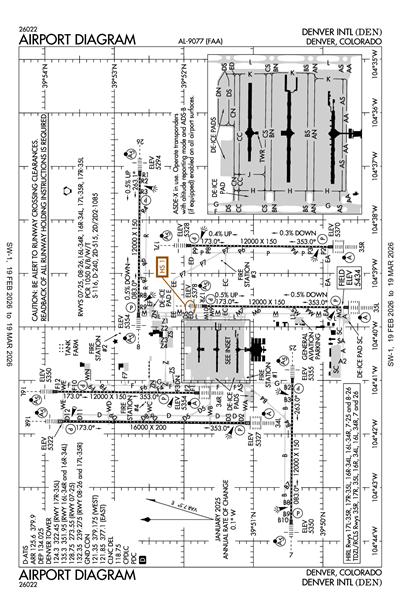

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KDEN
Thu, 9/19 2:01 AM MDT
Thu, 9/19 2:00 AM MDT - Fri, 9/20 6:00 AM MDT
VFR
2:00 AM MDT - 5:00 AM MDT
Sky Clear
6sm
VRB° 5kts
VFR
5:00 AM MDT - 2:00 PM MDT
Sky Clear
6sm
150° 8kts
VFR
2:00 PM MDT - 10:00 PM MDT
Few 12,000'
6sm
110° 12kts
VFR
10:00 PM MDT - 6:00 AM MDT
Few 12,000'
6sm
190° 11kts
KDEN 190801Z 1908/2012 VRB05KT P6SM SKC
   FM191100 15008KT P6SM SKC
   FM192000 11012KT P6SM FEW120
   FM200400 19011KT P6SM FEW120
KDEN
Domestic
9/17/241532Z !DEN 09/391 DEN TWY ED BTN TWY M AND TWY P7 CLSD 2409171532-2409242359
9/17/241526Z !DEN 09/390 DEN TWY DN BTN TWY K AND TWY CN COMMISSIONED 2500FT X 75FT CONC NOT LGTD 2409171526-PERM
9/17/241515Z !DEN 09/389 DEN TWY DS BTN TWY L AND GATE C43 COMMISSIONED 2500FT X 75FT CONC NOT LGTD 2409171515-PERM
9/16/241559Z !DEN 09/371 DEN TWY CS BTN TWY H AND GATE C26 CLSD 2409161559-2410152359
9/16/241342Z !DEN 09/364 DEN TWY J BTN J PAD SPOT 1 AND TWY CS CLSD 2409161342-2410152359
9/16/241200Z !DEN 09/291 DEN OBST CRANE (ASN 2024-ANM-939-NRA) 395006N1044137W (1.9NM SSW DEN) 5512FT (165FT AGL) FLAGGED AND LGTD 2409161200-2409212359
9/14/242009Z !DEN 09/328 DEN TWY CN CL LGT BTN TWY K AND GATE C63 NOT STD 2409142009-2409282359
9/14/242005Z !DEN 09/327 DEN TWY CN SPOT 7E HLDG PSN MARKINGS NOT STD 2409142005-2409282359
9/11/241641Z !DEN 09/241 DEN OBST CRANE (ASN 2022-ANM-3826-NRA) 395149N1043954W (0.4NM ENE DEN) 5466FT (100FT AGL) FLAGGED AND LGTD 2409111641-2411302359
8/22/241207Z !DEN 08/654 DEN TWY WB BTN TWY D5 AND TWY F CLSD TO ACFT WINGSPAN MORE THAN 214FT 2408221207-2410312359
8/15/241151Z !DEN 08/457 DEN TWY P2, P3, P4 CL LGT U/S 2408151151-2410312359
8/15/241151Z !DEN 08/456 DEN TWY EA CL LGT BTN RWY 17R/35L AND APCH END RWY 35R U/S 2408151151-2410312359
8/15/241149Z !DEN 08/455 DEN TWY P CL LGT BTN TWY P4 AND TWY EA U/S 2408151149-2410312359
8/12/241300Z !DEN 08/307 DEN TWY P BTN TWY P4 AND TWY P6 CLSD 2408121300-2410252359
8/12/241300Z !DEN 08/306 DEN TWY EC BTN RWY 17R/35L AND TWY P CLSD 2408121300-2410252359
7/30/241445Z !DEN 07/714 DEN TWY AS CL LGT BTN GATE A30 AND GATE A42 U/S 2407301445-2412012359
7/30/241442Z !DEN 07/713 DEN TWY AS CL MARKINGS BTN GATE A30 AND GATE A42 NOT STD 2407301442-2412012359
7/28/241620Z !DEN 07/682 DEN OBST POLE (ASN 2022-ANM-2861-NRA) 395159N1044060W (0.5NM WNW DEN) 5381FT (25FT AGL) FLAGGED 2407281620-2410012300
7/28/241619Z !DEN 07/681 DEN OBST POLE (ASN 2022-ANM-2863-NRA) 395159N1044110W (0.7NM WNW DEN) 5373FT (25FT AGL) FLAGGED 2407281619-2410012300
7/28/241618Z !DEN 07/680 DEN OBST CRANE (ASN 2022-ANM-4570-NRA) 395046N1044106W (1.1NM SSW DEN) 5389FT (35FT AGL) FLAGGED 2407281618-2410012300
7/28/241613Z !DEN 07/679 DEN OBST POLE (ASN 2022-ANM-4563-NRA) 395159N1044124W (0.8NM WNW DEN) 5340FT (30FT AGL) FLAGGED 2407281613-2410012300
7/28/241611Z !DEN 07/678 DEN TWY CN BTN TWY H AND TWY L CLSD TO ACFT WINGSPAN MORE
THAN 118FT CONST NORTH SIDE 2407281611-2409302359
7/28/241608Z !DEN 07/677 DEN TWY CN BTN TWY H AND TWY J WIP CONST NORTH SIDE LGTD AND BARRICADED 2407281608-2409302359
7/28/241604Z !DEN 07/676 DEN TWY F BTN TWY F2 AND TWY F3 WIP IRREGULAR SFC EAST SHOULDER PAVEMENT SENSORS 2407281604-2409302300
7/28/241603Z !DEN 07/675 DEN TWY F BTN TWY F2 AND TWY F3 WIP IRREGULAR SFC WEST SHOULDER PAVEMENT SENSORS 2407281603-2409302300
7/28/241603Z !DEN 07/674 DEN TWY G BTN TWY DS AND TWY DN WIP IRREGULAR SFC EAST SHOULDER PAVEMENT SENSOR 2407281603-2409302300
7/28/241603Z !DEN 07/673 DEN TWY G BTN TWY DS AND TWY DN WIP IRREGULAR SFC WEST SHOULDER PAVEMENT SENSORS 2407281603-2409302300
7/28/241603Z !DEN 07/672 DEN TWY WB BTN TWY D5 AND TWY F WIP IRREGULAR SFC NORTH SHOULDER PAVEMENT SENSORS 2407281603-2409302300
7/28/241602Z !DEN 07/671 DEN TWY WB BTN TWY D5 AND TWY F WIP IRREGULAR SFC SOUTH SHOULDER PAVEMENT SENSORS 2407281602-2409302300
7/28/241600Z !DEN 07/670 DEN RWY 16L/34R SAFETY AREA IRREGULAR SURFACE E SIDE SURFACE SENSORS 2407281600-2409302359
7/28/241600Z !DEN 07/669 DEN RWY 16L/34R SAFETY AREA IRREGULAR SURFACE W SIDE SURFACE SENSORS 2407281600-2409302359
7/28/241558Z !DEN 07/667 DEN TWY CN BTN TWY G AND TWY J WIP STEEL PLATES 2407281558-2409302359
6/26/241401Z !DEN 06/582 DEN OBST CRANE (ASN 2022-ANM-3818-NRA) 395116N1044052W (0.6NM SW DEN) 5474FT (100FT AGL) FLAGGED AND LGTD 2406261401-2410192359
6/26/241305Z !DEN 06/579 DEN OBST CRANE (ASN 2022-ANM-3823-NRA) 395126N1043955W (0.5NM SE DEN) 5468FT (100FT AGL) FLAGGED AND LGTD 2406261305-2410192359
6/19/241200Z !DEN 06/253 DEN OBST RIG (ASN 2024-ANM-880-NRA) 394954N1044125W (2.0NM SSW DEN) 5479FT (100FT AGL) FLAGGED AND LGTD 2406191200-2511142359
5/14/241300Z !DEN 05/260 DEN OBST RIG (ASN 2023-ANM-5153-NRA) 394949N1044304W (2.8NM SW DEN) 5468FT (80FT AGL) FLAGGED AND LGTD 2405141300-2411292359
5/10/241526Z !DEN 05/259 DEN OBST CRANE (ASN 2023-ANM-4813-NRA) 395033N1044025W (1.2NM S DEN) 5414FT (40FT AGL) FLAGGED AND LGTD 2405101526-2409302359
3/8/241345Z !DEN 03/228 DEN OBST CRANE (ASN 2022-ANM-4562-NRA) 395159N1044057W (0.5NM WNW DEN) 5478FT (120FT AGL) FLAGGED AND LGTD 2403081345-2410012330
3/5/242149Z !DEN 03/130 DEN OBST CRANE (ASN 2023-ANM-2263-OE) 395029N1044444W (3.6NM WSW DEN) 5364FT (100FT AGL) FLAGGED AND LGTD 2403052149-2410312300
12/21/231930Z !DEN 12/467 DEN OBST RIG (ASN 2022-ANM-1313-NRA) 395239N1044054W (1.0NM NNW DEN) 5435FT (90FT AGL) FLAGGED AND LGTD 2312211930-2505312300
12/11/231300Z !DEN 12/096 DEN OBST CRANE (ASN 2023-ANM-2417-NRA) 395004N1043955W (1.8NM SSE DEN) 5550FT (151FT AGL) FLAGGED AND LGTD 2312111300-2412262359
10/19/231200Z !DEN 10/282 DEN OBST CRANE (ASN 2023-ANM-1976-NRA) 395243N1044058W (1.1NM NNW DEN) 5506FT (151FT AGL) FLAGGED AND LGTD 2310191200-2412122300
6/21/231200Z !DEN 06/495 DEN OBST CRANE (ASN 2023-ANM-602-NRA) 394957N1043951W (1.8NM SSE DEN) 5458FT (65FT AGL) FLAGGED AND LGTD 2306211200-2411252300
6/14/232020Z !DEN 06/415 DEN AIRSPACE SEE DVV 05/215 UAS 2306142020-2505310220
5/3/231300Z !DEN 04/611 DEN OBST CRANE (ASN 2023-ANM-89-NRA) 395159N1044124W (0.8NM WNW DEN) 5430FT (120FT AGL) FLAGGED AND LGTD DLY 1300-2300 2305031300-2410012300
4/19/231300Z !DEN 04/195 DEN OBST CRANE (ASN 2023-ANM-605-NRA) 395248N1044058W (1.2NM NNW DEN) 5421FT (65FT AGL) FLAGGED AND LGTD 2304191300-2410312300
FDC
9/18/241530Z !FDC 4/7246 DEN SID DENVER INTL, DENVER, CO.
PIKES TWO DEPARTURE...
ALAMOSA TRANSITION, BINKE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ALS VORTAC OUT OF SERVICE. 2409181530-2409250134EST
9/13/241424Z !FDC 4/5029 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 34L, AMDT 2C...
S-LOC 34L MDA 5800/HAT 473 ALL CATS, VIS CAT A/B RVR 4000, CAT C/D RVR 5000. VDP AT I-DXU 4.06 DME; DISTANCE VDP TO THLD 1.24 NM. RWY 34L HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. FOR INOP ALS, INCREASE S-LOC CAT A/B VISIBILITY TO RVR 5000, INCREASE CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). TEMPORARY CRANE/CONSTRUCTION EQUIPMENT UP TO 5483 MSL 1.3NM S OF RWY 34L (2024-ANM-880 TO 883-NRA).
2409131424-2501151424EST
9/13/241424Z !FDC 4/5024 DEN SID DENVER INTL, DENVER, CO.
DENVER TWO DEPARTURE...
PIKES TWO DEPARTURE...
PLAINS ONE DEPARTURE...
ROCKIES SIX DEPARTURE...
YELLOWSTONE FOUR DEPARTURE...
TAKE-OFF MINIMUMS: RWY 16R, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 258FT PER NM TO 5700. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). RWY 26, 300 - 1 1/8, OR STANDARD WITH MINIMUM CLIMB OF 265FT PER NM TO 6000. TEMPORARY CRANE 5506 MSL 5110FT W OF DEP END RWY 26 (2023-ANM-1976 THRU 1983-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2409131424-2501151424EST
9/13/241424Z !FDC 4/5009 DEN SID DENVER INTL, DENVER, CO.
CHUWY ONE DEPARTURE (RNAV)...
DDRTH ONE DEPARTURE (RNAV)...
HHOTH TWO DEPARTURE (RNAV)...
XXWNG ONE DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS: RWY 16R, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 258FT PER NM TO 5700. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2409131424-2501151424EST
9/13/241424Z !FDC 4/5007 DEN ODP DENVER INTL, DENVER, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKE-OFF MINIMUMS: RWY 16R, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB 258FT PER NM TO 5700. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). RWY 26, 300 - 1 1/8, OR STANDARD WITH MINIMUM CLIMB OF 265FT PER NM TO 6000. TEMPORARY CRANE 5506 MSL 5110FT W OF DEP END RWY 26 (2023-ANM-1976 THRU 1983-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2409131424-2501151424EST
9/13/241424Z !FDC 4/5004 DEN IAP DENVER INTL, DENVER, CO.
RNAV (GPS) Y RWY 34L, AMDT 2D...
LNAV/VNAV DA 5843/HAT 516 ALL CATS, VIS RVR 5500 ALL CATS. LNAV MDA 5800/HAT 473 ALL CATS, VIS CAT A/B RVR 4000, CAT C/D VIS RVR 5000. VDP: 1.24 NM TO RW34L. RWY 34L HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM, INCREASE LNAV VISIBILITY CAT A/B TO RVR 5500 AND CAT C/D TO 1 3/8 SM. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). TEMPORARY CRANE UP TO 5483 MSL 1.3NM S OF RWY 34L (2024-ANM-880 TO 883-NRA).
2409131424-2501151424EST
9/13/241424Z !FDC 4/5002 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 34R, AMDT 3A...
S-LOC 34R MDA 5800/HAT 446 ALL CATS, VIS CAT C/D RVR 4000. VDP AT I-OUF 3.29 DME; DISTANCE VDP TO THLD 1.15NM. TEMPORARY MISCELLANEOUS 5351 MSL 1761FT SW OF RWY 34R (2022-ANM-4565-NRA). TEMPORARY CRANE UP TO 5483 MSL 2.0NM S OF RWY 34R (2024-ANM-880 TO 883-NRA). TEMPORARY CRANE 5544 MSL 1.8NM S OF RWY 34R (2024-ANM-939-TO 942-NRA).
2409131424-2501151424EST
9/13/241424Z !FDC 4/4999 DEN IAP DENVER INTL, DENVER, CO.
RNAV (RNP) Z RWY 34L, ORIG-C...
RNP 0.10 DA 5788/HAT 461 ALL CATS, VIS RVR 5000 ALL CATS. RNP 0.20 DA 5814/HAT 487 ALL CATS, VIS RVR 5000 ALL CATS. RNP 0.30 DA 5852/HAT 525 ALL CATS. FOR INOP ALS, INCREASE RNP 0.10 ALL CATS VISIBILITY TO 1 3/8 SM AND INCREASE RNP 0.20 ALL CATS VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 5544 MSL 1.1NM S OF RWY 34L (2024-ANM-939-TO 942-NRA). TEMPORARY CRANE/CONSTRUCTION EQUIPMENT UP TO 5483 MSL 1.3NM S OF RWY 34L (2024-ANM-880 TO 883-NRA).
2409131424-2501151424EST
7/25/241843Z !FDC 4/7934 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 35L, AMDT 5B...
S-LOC 35L MDA 5800/HAT 366 ALL CATS. VIS CAT C/D RVR 3500. VDP NA. TEMPORARY CRANE 5779FT MSL 1.7NM NW OF RWY 35L (2023-ANM-4147 THRU 4156-NRA).
2407251843-2410151843EST
7/25/241843Z !FDC 4/7933 DEN IAP DENVER INTL, DENVER, CO.
RNAV (GPS) Y RWY 25, AMDT 1B...
LNAV/VNAV DA 5877/HAT 522 ALL CATS. VIS ALL CATS RVR 5500. LNAV MDA 5820/HAT 465 ALL CATS. VIS CAT C/D RVR 5000. VDP 1.19NM TO RW25. FOR INOPERATIVE MALSR, INCREASE LNAV CAT C/D VISIBILITY TO 1 3/8. TEMPORARY CRANE 5550 MSL 5631FT SE OF RWY 25 (2023-ANM-2417 THRU 2424-NRA). TEMPORARY CRANE 5779FT MSL 1.1NM NE OF RWY 25 (2023-ANM-4147 THRU 4156-NRA).
2407251843-2410151843EST
6/18/241324Z !FDC 4/0433 DEN SID DENVER INTL, DENVER, CO.
ROCKIES SIX DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2406181324-2501281324EST
3/8/241430Z !FDC 4/5144 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 17R, AMDT 3B...
S-ILS 17R DA 5779/HAT 387 ALL CATS. VISIBILITY ALL CATS RVR 3500. S-LOC 17R MDA 5980/HAT 588 ALL CATS. VISIBILITY CAT C/D 1 1/4. VDP NA. TEMPORARY CRANE 5779 MSL 3241FT SWOF RWY 17R (2023-ANM-4147 THRU 4156-NRA). TEMPORARY CRANE 5539 MSL 2145FT NW OF RWY 17R (2023-ANM-3465-NRA).
2403081430-2501151430EST
1/31/241925Z !FDC 4/9871 DEN IAP DENVER INTL, DENVER, CO.
RNAV (GPS) Y RWY 8, AMDT 1C...
LPV DA# 5758/HAT 404 ALL CATS, VIS RVR 4000 ALL CATS. LNAV/VNAV DA 5833/HAT 479 ALL CATS. LNAV MDA 5760/HAT 406 ALL CATS, VIS RVR 4000 ALL CATS. VDP 1.04 NM TO RW08. DISREGARD NOTE: #RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. FOR INOPERATIVE MALSR, INCREASE LPV VISIBILITY TO RVR 6000 ALL CATS, INCREASE LNAV/VNAV VISIBILITY TO 1 3/8 SM ALL CATS, AND INCREASE LNAV CATS A/B VISIBILITY TO RVR 5500 AND CATS C/D VISIBILITY TO RVR 6000.TEMPORARY CRANE 5602 MSL 4675FT SW OF RWY 8 (2023-ANM-3465-NRA). TEMPORARY CRANE 5506 MSL 5110FT W OF RWY 8 (2023-ANM-1976 THRU 1983-NRA).
2401311925-2504151925EST
1/31/241925Z !FDC 4/9867 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 8, AMDT 5A...
S-ILS 8** DA 5758/HAT 404 ALL CATS, VIS RVR 4000 ALL CATS. S-LOC 8 MDA 5760/HAT 406 ALL CATS, VIS RVR 4000 ALL CATS. VDP AT I-FUI 0.87 DME; DISTANCE VDP TO THLD 1.04 MILES. DISREGARD NOTE: **RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. FOR INOPERATIVE MALSR, INCREASE S-ILS 8 VISIBILITY ALL CATS TO RVR 6000, AND INCREASE S-LOC 8 VISIBILITY CATS A/B TO RVR 5500 AND CATS C/D TO RVR 6000. TEMPORARY CRANE 5506 MSL 5110FT W OF RWY 8 (2023-ANM-1976 THRU 1983-NRA).
2401311925-2504151925EST
8/15/231410Z !FDC 3/4557 DEN IAP DENVER INTL, DENVER, CO.
ILS OR LOC RWY 35L, AMDT 5B...
S-LOC 35L MDA 5780/HAT 346 ALL CATS.
2308151410-2508151410EST
Yes
ALL
CITY & COUNTY OF DENVER
DEPT OF AVIATION
DENVER, CO 80249
Phone: 303-342-2200
PHIL WASHINGTON
ADMIN BLDG, 8500 PENA BLVD
DENVER, CO 80249
Phone: (303) 342-2206
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
Sunset to Sunrise
--
N/A
Yes
No
Yes
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
1
0
0
0
0
Major
Major
High Pressure
High Pressure
None

Runway 07/25

12000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 07 Runway 25
True Heading 90°271°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 50' 27"N 39° 50' 26"N
Longitude 104° 43' 36"W 104° 41' 02"W
Elevation 5,350' 5,355'
Threshold Crossing Height 68 ft. AGL 83 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 08/26

12000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 52' 39"N 39° 52' 38"N
Longitude 104° 39' 44"W 104° 37' 10"W
Elevation 5,354' 5,294'
Threshold Crossing Height 70 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 16L/34R

12000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 16L Runway 34R
True Heading 181°1°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 49"N 39° 51' 51"N
Longitude 104° 41' 12"W 104° 41' 14"W
Elevation 5,350' 5,354'
Threshold Crossing Height 71 ft. AGL 63 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 16R/34L

16000 ft. x 200 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 16R Runway 34L
True Heading 181°1°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 45"N 39° 51' 07"N
Longitude 104° 41' 46"W 104° 41' 48"W
Elevation 5,322' 5,327'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17L/35R

12000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 17L Runway 35R
True Heading 181°1°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 51' 54"N 39° 49' 55"N
Longitude 104° 38' 29"W 104° 38' 30"W
Elevation 5,328' 5,370'
Threshold Crossing Height 66 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17R/35L

12000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
116,000lbs
240,000lbs
515,000lbs
1,085,000lbs
  Runway 17R Runway 35L
True Heading 181°1°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 51' 40"N 39° 49' 42"N
Longitude 104° 39' 37"W 104° 39' 38"W
Elevation 5,378' 5,434'
Threshold Crossing Height 69 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-11DEP RWY 08, 25 & 34R HAS MNTND CWY 500 X 1000 FT 1.25 SLOPE.
A110-12ASDE-X IN USE; OPR TRANSPONDERS WITH ALT RPRTG MODE & ADS-B IF EQUIPPED ENABLED ON ALL ARPT SFCS.
A110-14TWY F7 CLSD TO ACFT WINGSPAN MORE THAN 118 FT.
A110-3OVHD PAX BRIDGE S SIDE OF CONCOURSE-A PRVDS 42 FT TAIL & 118 FT WINGSPAN CLNC WHEN ON TWY CNTRLN.
A110-5CUSTOMS AVBL PPR.
A110-6INFORMAL RWY USE PROGRAM IN EFCT H24; NOISE ABATEMENT INFO - ARPT MGMT 303-342-4200.
A110-8WATERFOWL & BIRDS INVOF ARPT.
DENVER INTL (ICAO: KDEN, IATA: DEN) is a public airport located in DENVER, CO.
