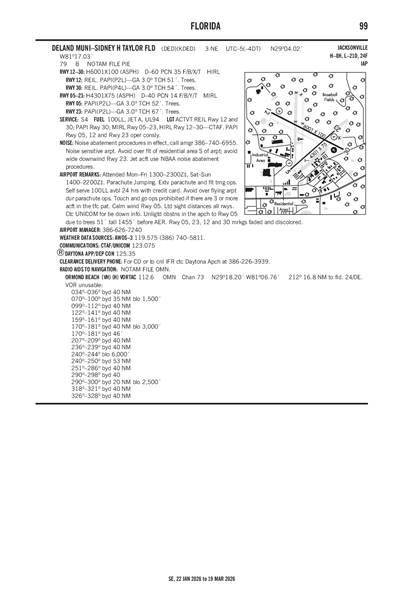

DELAND MUNI-SIDNEY H TAYLOR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDED
ICAO KDEDLocal DED
DELAND MUNI-SIDNEY H TAYLOR FLD
PublicPUB

3 miles NE of DELAND, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 04' 01"N 81° 17' 02"W
Elevation
79' MSL
Pattern Alt
1079' MSL
Mag Variation
7°W
Declination
5°W
Fuel
JET A, 100LL, UL94
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KDED LIFR
10:55 PM EST
Mist
Overcast 200'
1.25sm
60°F
59°F
30.29"Hg
360° 3kts
AO2 T01570151
METAR KDED 040355Z AUTO 36003KT 1 1/4SM BR OVC002 16/15 A3029 RMK AO2 T01570151
+ Add Your Business

KDED FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.575
(386) 740-5811

Common

CTAF 123.075
ACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 05/23, HIRL RWY 12/30 - CTAF. PAPI RWY 05, 12, & 23 OPER CONSLY.
UNICOM 123.075
CTC UNICOM FOR TIE DOWN INFO.

Arrival

TTHOR STAR 118.85

Approach

DAYTONA APPROACH 125.35

Departure

DAYTONA DEPARTURE 125.35

Terminal Area Forecast

KDAB (13nm)
Tue, 3/3 7:34 PM EST
Tue, 3/3 8:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
8:00 PM EST - 1:00 AM EST
Showers in vicinity
Few 6,000'
6sm
050° 5kts
IFR
Temporary 1:00 AM EST - 5:00 AM EST
Mist
Broken 500'
3sm
Calm
MVFR
1:00 AM EST - 9:00 AM EST
Mist
Sky Clear
4sm
050° 3kts
VFR
9:00 AM EST - 7:00 PM EST
Scattered 3,000'
6sm
080° 8kts
TAF KDAB 040034Z 0401/0424 05005KT P6SM VCSH FEW060
   FM040600 05003KT 4SM BR SKC
   TEMPO 0406/0410 3SM BR BKN005
   FM041400 08008KT P6SM SCT030
KDED
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1533Z
7/23/26
2359Z
!PIE 02/335 DED OBST TOWER LGT (ASR 1041193) 285616.00N0811857.00W (8.0NM SSW DED) 1742.8FT (1674.9FT AGL) U/S 2602231533-2607232359
2/3/26
1100Z
2/28/26
2300Z
!PIE 02/025 DED AIRSPACE UAS WI AN AREA DEFINED AS 1.25NM RADIUS OF DED SFC-400FT AGL DLY 1100-2300 2602031100-2602282300
1/23/26
1628Z
4/23/26
0500Z
!PIE 01/200 DED OBST TOWER LGT (ASR 1030354) 285832.00N0811800.40W (5.6NM S DED) 686.0FT (630.9FT AGL) U/S 2601231628-2604230500
1/12/26
1322Z
Runway!PIE 01/078 DED RWY 30 RWY END ID LGT U/S 2601121322-2607132111EST
1/12/26
1320Z
Runway!PIE 01/077 DED RWY 12 RWY END ID LGT U/S 2601121320-2607132111EST
11/10/25
1639Z
!PIE 11/117 DED OBST TOWER LGT (ASN 2020-ASO-10831-OE) 285809.00N0811630.00W (5.9NM S DED) 449.1FT (389.1FT AGL) U/S 2511101639-PERM
FDC
2/23/26
1428Z
!FDC 6/8311 DED ODP DELAND MUNI-SIDNEY H TAYLOR FLD, DELAND, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
ADD TAKEOFF OBSTACLE NOTES: RWY 12, TEMPORARY CRANES BEGINNING 3269FT FROM DER, 149FT LEFT OF CENTERLINE, UP TO 129FT AGL/ 199FT MSL (2024-ASO-25437 THRU 25448-OE). TEMPORARY CRANES BEGINNING 4749FT FROM DER, 28FT RIGHT OF CENTERLINE, UP TO 130FT AGL/ 198FT MSL (2024-ASO-25449 THRU 25451-OE). TEMPORARY CRANE 5027FT FROM DER, 542FT RIGHT OF CENTERLINE, 132FT AGL/ 199FT MSL (2024-ASO-25452-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2602231428-2604261428EST
No
MON-FRI 0800-1800
SAT-SUN 0900-1700
CITY OF DELAND
120 S FLORIDA AVE
DELAND, FL 32720
Phone: 386-626-7107
JOHN EIFF
1000 FLIGHTLINE BLVD
DELAND, FL 32724
Phone: 386-626-7240
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 05/23, HIRL RWY 12/30 - CTAF. PAPI RWY 05, 12, & 23 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 05/23

4301 ft. x 75 ft.
ASPH
Fair
NONE
MED
14/F/B/Y/T
--
40,000lbs
--
--
  Runway 05 Runway 23
True Heading 48°228°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 29° 03' 39"N 29° 04' 07"N
Longitude 81° 17' 17"W 81° 16' 41"W
Elevation 78' 68'
Threshold Crossing Height 52 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

6001 ft. x 100 ft.
ASPH
Fair
NONE
HIGH
35/F/B/X/T
--
60,000lbs
--
--
  Runway 12 Runway 30
True Heading 117°297°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 29° 04' 21"N 29° 03' 54"N
Longitude 81° 17' 33"W 81° 16' 33"W
Elevation 74' 70'
Threshold Crossing Height 51 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10UNLIGTD OBSTNS IN THE APCH TO RWY 05 DUE TO TREES 51 FT TALL 1455 FT BFR AER.
A110-2TOUCH & GO OPNS PROHIBITED IF THERE ARE 3 OR MORE ACFT IN THE TFC PATTERN.
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT, CALL AMGR (386) 740-6955.
A110-4EXTSV PARACHUTE & FLT TRNG OPNS. AVOID OVER FLYING ARPT DURG PARACHUTE OPNS.
A110-5NOISE SENSITIVE ARPT. AVOID OVER FLT OF RESIDENTIAL AREA S OF ARPT; AVOID WIDE DOWNWIND RY 23. JET ACFT USE NBAA NOISE ABATEMENT PROCEDURES.
A110-6CALM WIND RY 05.
A110-7LMTD SIGHT DISTANCES ALL RYS.
A110-8CTC UNICOM FOR TIE DOWN INFO.
A110-9FOR CD OR TO CNL IFR CTC DAYTONA APCH AT 386-226-3939.
A14ARPT PHYS ADS: 1000 FLIGHTLINE BLVD.
A42-05_CONDRWY 05 MRKGS FADED & DISCOLORED.
A42-12_CONDRWY 12 MRKGS FADED & DISCOLORED.
A42-23_CONDRWY 23 MRKGS FADED & DISCOLORED.
A42-30_CONDRWY 30 MRKGS FADED & DISCOLORED.
A70-100LLSELF SERVE 100LL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 05/23, HIRL RWY 12/30 - CTAF. PAPI RWY 05, 12, & 23 OPER CONSLY.
DELAND MUNI-SIDNEY H TAYLOR FLD (ICAO: KDED, IATA: DED) is a public airport located in DELAND, FL, US.
