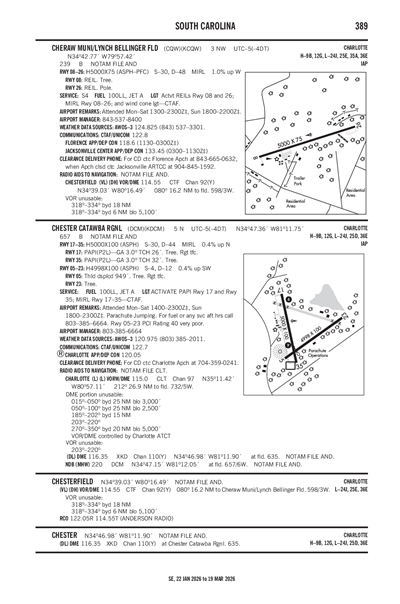

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDCM
CHESTER CATAWBA RGNL
PublicPUB

5 miles N of CHESTER, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 47' 22"N 81° 11' 45"W
657' MSL
1657' MSL
06W
JET A, 100LL
ANDERSON (AND)
CHARLOTTE
ATLANTA (ZTL)
7/11/24-8/8/24
KDCM IFR
6:35 AM EDT
Mist
Obscured
1sm
64°F
64°F
29.92"Hg
Calm
AO2 VIS 1/2V1 3/4 LTG DSNT SE AND SW
KDCM 191035Z AUTO 00000KT 1SM BR VV007 18/18 A2992 RMK AO2 VIS 1/2V1 3/4 LTG DSNT SE AND SW
Add Your Business

KDCM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
803-385-2011
 120.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KCLT (29nm)
Thu, 9/19 5:25 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 8:00 AM EDT
IFR
5:00 AM EDT - 9:00 AM EDT
Mist
Overcast 500'
5sm
010° 4kts
LIFR
Temporary 6:00 AM EDT - 8:00 AM EDT
Mist
Obscured
0.75sm
Calm
IFR
9:00 AM EDT - 11:00 AM EDT
Broken 700'
6sm
030° 5kts
MVFR
11:00 AM EDT - 1:00 PM EDT
Broken 1,500'
6sm
030° 5kts
VFR
1:00 PM EDT - 5:00 PM EDT
Broken 6,000'
Scattered 2,200'
6sm
020° 5kts
VFR
5:00 PM EDT - 4:00 AM EDT
Scattered 6,000'
6sm
030° 6kts
MVFR
4:00 AM EDT - 8:00 AM EDT
Mist
Scattered 400'
4sm
VRB° 2kts
KCLT 190925Z 1909/2012 01004KT 5SM BR OVC005
   TEMPO 1910/1912 3/4SM BR VV002
   FM191300 03005KT P6SM BKN007
   FM191500 03005KT P6SM BKN015
   FM191700 02005KT P6SM SCT022 BKN060
   FM192100 03006KT P6SM SCT060
   FM200800 VRB02KT 4SM BR SCT004
KDCM
Domestic
9/12/241526Z !AND 09/181 DCM OBST TOWER LGT (ASR 1048359) 344137.00N0811342.00W (6.0NM SSW DCM) 857.6FT (329.7FT AGL) U/S 2409121526-2412110400
9/11/242057Z !AND 09/172 DCM NAV DME U/S 2409112057-2412312359
7/13/241155Z !AND 07/190 DCM OBST TOWER LGT (ASR 1047337) 345017.70N0810126.80W (9.0NM ENE DCM) 907.8FT (317.9FT AGL) U/S 2407131155-2410110400
No
MON-SAT 0900-1800
SUN 1300-1800
COUNTY OF CHESTER
P.O. BOX 594
CHESTER, SC 29706
Phone: (803) 385-3154
KEITH ROACH
1854-A, PIPER DR.
CHESTER, SC 29706
Phone: 803-385-6664
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
27
2
0
0
0
0
None
None
None
None
Parachute Jump Activity

Runway 05/23

4998 ft. x 100 ft.
ASPH
Poor
NONE


4,000lbs
12,000lbs
--
--
  Runway 05 Runway 23
True Heading 55°235°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 47' 04"N 34° 47' 33"N
Longitude 81° 11' 59"W 81° 11' 10"W
Elevation 642' 620'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5000 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
44,000lbs
--
--
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 47' 49"N 34° 47' 01"N
Longitude 81° 12' 01"W 81° 11' 49"W
Elevation 657' 636'
Threshold Crossing Height 26 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
CHESTER CATAWBA RGNL (ICAO: KDCM, IATA: DCM) is a public airport located in CHESTER, SC.
